Application

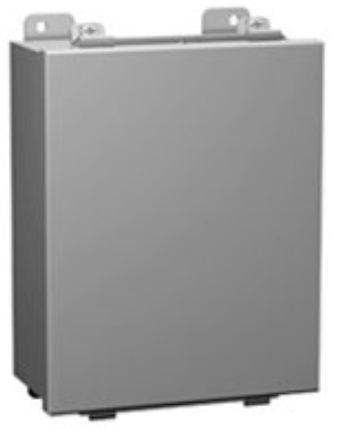

Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
Provides a degree of protection from falling dirt, dust, oil and water.
Standards
UL 508A Type 12 and 13
CSA Type 12 and 13
Complies with
NEMA Type 12 and 13
JIC EGP-1-1967 unless marked¹
IEC 60529, IP54
Construction
Body formed from 16 gauge or 14 gauge steel. Covers are formed from 14 gauge steel.
Smooth, continuously welded seams without knockouts, cutouts or holes.
Welded brackets provide for enclosure mounting.
Lift off cover is secured with stainless steel clamps and plated steel screws and retained with a plated chain when open.
Seamless poured-in place gasket.
Models larger than 4" x 4" include a removable 14 gauge inner panel.
Internal threaded weld studs are provided for mounting inner panels.
A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
Finish
Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.
Removable inner panel is finished in white powder coating.
Displaying 1 - 10 of 12
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
1414A4
Junction Box
 RoHS Compliant
N12 J Box, Lift Off Cover - 4 x 4 x 4 - Steel/Gray CLMPD LIFT-OFF RMVBLE CVR BOX (4 x 4 x 4) Hammond PN 1414A4 : UPC… |
Hammond Mfg.
Series 1414 |
Factory Lead Time: 55
|
1 - 1$53.10 2 - 3$52.20 4 - 9$51.40 ... |
|
|
1414C
Junction Box
RoHS Compliant
N12 J Box, Lift Off Cover w/panel - 6 x 4 x 3 - Steel/Gray NEMA12 RMVBL CVR 6X4X3 (6 x 4 x 3) Hammond PN 1414C : UPC… |
Hammond Mfg.
Series 1414 |
Factory Lead Time: 55
|
1 - 1$61.10 2 - 2$60.10 3 - 4$59.10 ... |
|
|
1414C4
Junction Box
RoHS Compliant
N12 J Box, Lift Off Cover w/panel - 6 x 4 x 4 - Steel/Gray CLMPD LIFT-OFF REMVBLE CVR BOX (6 x 4 x 4) Hammond PN 1414… |
Hammond Mfg.
Series 1414 |
Factory Lead Time: 55
|
1 - 1$65.90 2 - 2$64.80 3 - 4$63.70 ... |
|
|
1414E
Junction Box
RoHS Compliant
N12 J Box, Lift Off Cover w/panel - 6 x 6 x 4 - Steel/Gray NEMA12 RMVBL CVR 6X6X4 (6 x 6 x 4) Hammond PN 1414E : UPC… |
Hammond Mfg.
Series 1414 |
Factory Lead Time: 55
|
1 - 1$71.50 2 - 2$70.30 3 - 3$69.20 ... |
|
|
1414G
Junction Box
RoHS Compliant
N12 J Box, Lift Off Cover w/panel - 8 x 6 x 3.5 - Steel/Gray NEMA12 RMVBL CVR 8X6X3.5 (8 x 6 x 3.5) Hammond PN 1414G… |
Hammond Mfg.
Series 1414 |
Factory Lead Time: 55
|
1 - 1$76.20 2 - 2$74.90 3 - 3$73.70 ... |
|
|
1414I
Junction Box
RoHS Compliant
N12 J Box, Lift Off Cover w/panel - 10 x 8 x 4 - Steel/Gray NEMA 12 RMVBL CVR (10 x 8 x 4) Hammond PN 1414I : UPC [62… |
Hammond Mfg.
Series 1414 |
Factory Lead Time: 55
|
1 - 1$95.00 2 - 2$93.50 3 - 9$91.90 ... |
|
|
1414K
Junction Box
RoHS Compliant
N12 J Box, Lift Off Cover w/panel - 12 x 10 x 5 - Steel/Gray NEMA12 RMVBL CVR 12X10X5 (12 x 10 x 5) Hammond PN 1414K… |
Hammond Mfg.
Series 1414 |
Factory Lead Time: 55
|
1 - 1$123.40 2 - 2$121.30 3 - 4$119.40 ... |
|
|
1414M6
Junction Box
RoHS Compliant
N12 J Box, Lift Off Cover w/panel - 14 x 12 x 6 - Steel/Gray NEMA12 RMVBL CVR 14X12X6 (14 x 12 x 6) Hammond PN 1414M6… |
Hammond Mfg.
Series 1414 |
Factory Lead Time: 55
|
1 - 1$157.10 2 - 3$154.60 4 - 9$152.10 ... |
|
|
1414M8
Junction Box
RoHS Compliant
N12 J Box, Lift Off Cover w/panel - 14 x 12 x 8 - Steel/Gray NEMA12 RMVBL CVR 14X12X8 (14 x 12 x 8) Hammond PN 1414M8… |
Hammond Mfg.
Series 1414 |
Factory Lead Time: 55
|
1 - 1$195.60 2 - 2$192.40 3 - 9$189.30 ... |
|
|
1414A
Junction Box
RoHS Compliant
N12 J Box, Lift Off Cover - 4 x 4 x 3 - Steel/Gray NEMA12 RMVBL CVR 4X4X3 (4 x 4 x 3) Hammond PN 1414A : UPC [6239803… |
Hammond Mfg.
Series 1414 |
Factory Lead Time: 55
|
1 - 1$50.40 2 - 3$49.50 4 - 9$48.70 ... |
