Filters107

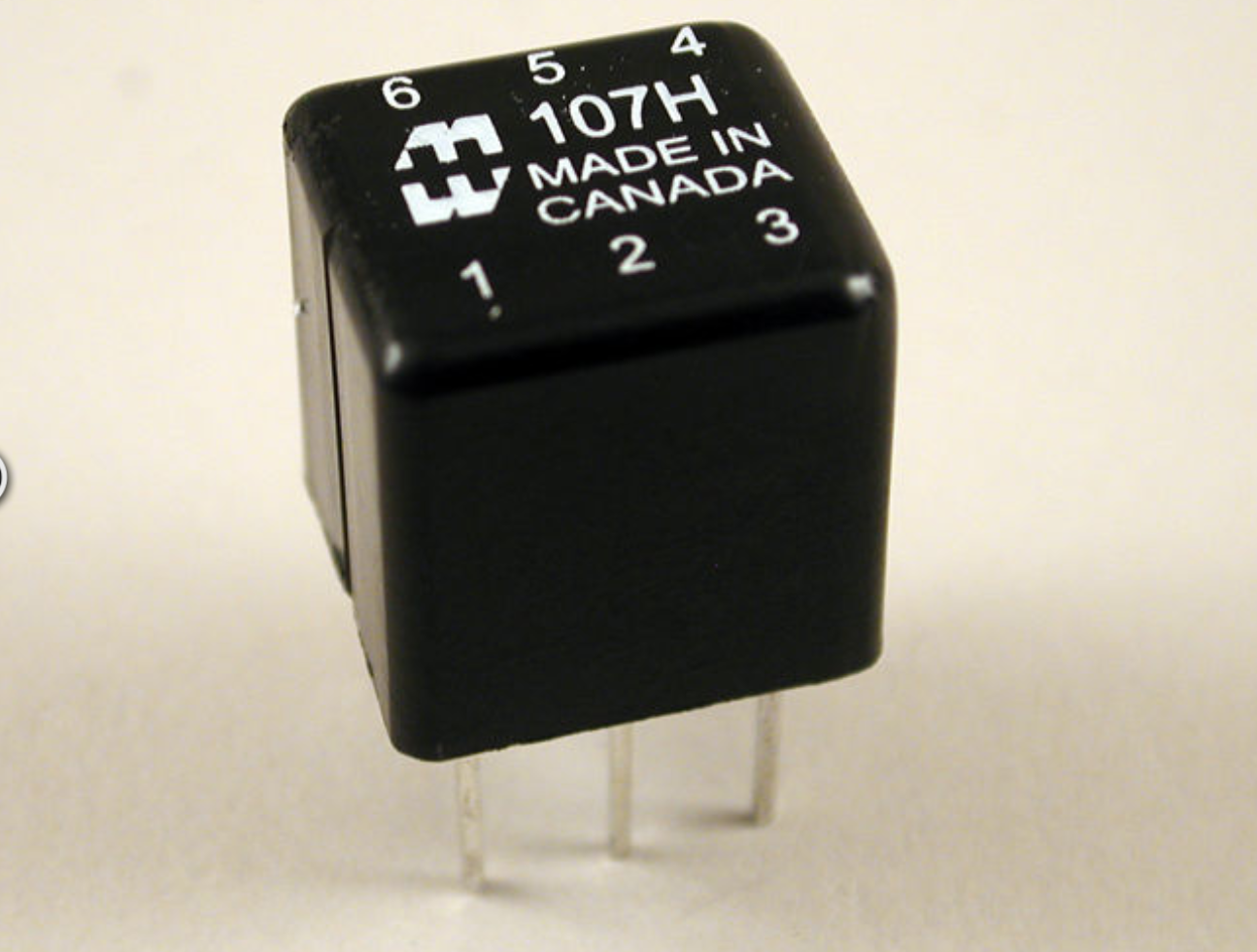

150mw Audio Miniature Epoxy Potted 107 Series PC Board Mount
Perfect for audio input, line matching, isolation or output transformer applications.
150 milliwatt (+/- 1.5 db, 300 Hz. - 50 KHz.)
Epoxy potted in an attractive black molded case, Pin type P.C. board mount (min. 0.187" length).
In some models where no center tap is required (on secondary), pin No. 5 is omitted.
Power level ratings are maximum at lowest frequency rating (see charts & PDF spec. sheets below)
Power can be increased slightly at higher frequencies (except 107X). See individual PDF specs. for specifics.
Will withstand soldering for 10 sec. @ 260 degrees C, ambient temp. 85 degrees C max.
Displaying 1 - 10 of 13
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
107T
Enclosures
 RoHS Compliant
Audio transformer, potted, primary 10K ctohms , secondary 10K ct ohms AUDIO TX POTTED Hammond PN 107T : UPC [6239801… |
Hammond Mfg.
Series 107 |
Total Stock: 46
Drop Ship Quantity: 45
Factory Lead Time: 20
|
1 - 1$19.40 2 - 4$19.10 5 - 9$18.80 ... |
|
|
107B
Enclosures
RoHS Compliant
Audio transformer, potted, primary 150 ctohms , secondary 12 ohms AUDIO TX POTTED Hammond PN 107B : UPC [62398018260… |
Hammond Mfg.
Series 107 |
Factory Lead Time: 20
|
1 - 1$19.40 2 - 4$19.10 5 - 9$18.80 ... |
|
|
107E
Enclosures
RoHS Compliant
Audio transformer, potted, primary 600 ctohms , secondary 3.2 ohms AUDIO TX POTTED Hammond PN 107E : UPC [6239801828… |
Hammond Mfg.
Series 107 |
Total Stock: 2
Factory Lead Time: 20
|
1 - 1$19.40 2 - 4$19.10 5 - 9$18.80 ... |
|
|
107G
Enclosures
RoHS Compliant
Audio transformer, potted, primary 600 ctohms , secondary 250 ct ohms AUDIO TX POTTED Hammond PN 107G : UPC [6239801… |
Hammond Mfg.
Series 107 |
Factory Lead Time: 20
|
1 - 1$19.40 2 - 4$19.10 5 - 9$18.80 ... |
|
|
107J
Enclosures
RoHS Compliant
Audio transformer, potted, primary 1K ctohms , secondary 600 ct ohms AUDIO TX POTTED Hammond PN 107J : UPC [62398018… |
Hammond Mfg.
Series 107 |
Factory Lead Time: 20
|
1 - 1$19.40 2 - 4$19.10 5 - 9$18.80 ... |
|
|
107L
Enclosures
RoHS Compliant
Audio transformer, potted, primary 10K ctohms , secondary 3.2 ohms AUDIO TX POTTED Hammond PN 107L : UPC [6239801833… |
Hammond Mfg.
Series 107 |
Factory Lead Time: 20
|
1 - 1$19.40 2 - 4$19.10 5 - 9$18.80 ... |
|
|
107N
Enclosures
RoHS Compliant
Audio transformer, potted, primary 10K ctohms , secondary 600 ct ohms AUDIO TX POTTED Hammond PN 107N : UPC [6239801… |
Hammond Mfg.
Series 107 |
Factory Lead Time: 20
|
1 - 1$19.40 2 - 4$19.10 5 - 9$18.80 ... |
|
|
107P
Enclosures
RoHS Compliant
Audio transformer, potted, primary 10K ctohms , secondary 1.5K ct ohms AUDIO TX POTTED Hammond PN 107P : UPC [623980… |
Hammond Mfg.
Series 107 |
Factory Lead Time: 20
|
1 - 1$19.40 2 - 4$19.10 5 - 9$18.80 ... |
|
|
107R
Enclosures
RoHS Compliant
Audio transformer, potted, primary 10K ctohms , secondary 4K ct ohms AUDIO TX POTTED Hammond PN 107R : UPC [62398018… |
Hammond Mfg.
Series 107 |
Factory Lead Time: 20
|
1 - 1$19.40 2 - 4$19.10 5 - 9$18.80 ... |
|
|
107V
Enclosures
RoHS Compliant
Audio transformer, potted, primary 25K ctohms , secondary 600 ct ohms AUDIO TX POTTED Hammond PN 107V : UPC [6239801… |
Hammond Mfg.
Series 107 |
Total Stock: 2
Factory Lead Time: 20
|
1 - 1$25.00 2 - 3$24.60 4 - 9$24.20 ... |
