Features
Output power models from 5 to 1,500 milliwatt level available.
P.C. board mount - square pin type (0.025" square typical) - see mechanical information below for lengths.
Bifilar winding technique used on center tapped units for balanced resistive and capacitive characteristics.
Rugged black epoxy potted construction produces a completely sealed unit withstanding severe environmental conditions including those of MIL-T-27 (Grade 5, Class S).
For the more economical open type P.C. mount types please refer to the 148 and 149 series.
Peak working voltage rating of: 200V
Referring to figures 1-9, if connection is not used - no pin will exist.
Displaying 1 - 8 of 8
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
104B
Enclosures
 RoHS Compliant
Audio transformer, potted, primary 150ohms , secondary 80000 ohms AUDIO TX INPUT POTTED Hammond PN 104B : UPC [62398… |
Hammond Mfg.
Series 104 |
Factory Lead Time: 20
|
1 - 1$25.00 2 - 3$24.60 4 - 9$24.20 ... |
|
|
104H
Enclosures
RoHS Compliant
Audio transformer, potted, primary 10000ohms , secondary 2000 CT ohms AUDIO TX INTERSTAGE POTTED Hammond PN 104H : U… |
Hammond Mfg.
Series 104 |
Factory Lead Time: 20
|
1 - 1$23.20 2 - 3$22.80 4 - 9$22.50 ... |
|
|
104K
Enclosures
RoHS Compliant
Audio transformer, potted, primary 20000ohms , secondary 1000 CT ohms AUDIO TX INTERSTAGE POTTED Hammond PN 104K : U… |
Hammond Mfg.
Series 104 |
Factory Lead Time: 20
|
1 - 1$23.20 2 - 3$22.80 4 - 9$22.50 ... |
|
|
104L
Enclosures
RoHS Compliant
Audio transformer, potted, primary 25000ohms , secondary 600 CT ohms AUDIO TX INTERSTAGE POTTED Hammond PN 104L : UP… |
Hammond Mfg.
Series 104 |
Factory Lead Time: 20
|
1 - 1$23.20 2 - 3$22.80 4 - 9$22.50 ... |
|
|
104Q
Enclosures
RoHS Compliant
Audio transformer, potted, primary 500 CTohms , secondary 3.2 ohms AUDIO TX OUTPUT POTTED Hammond PN 104Q : UPC [623… |
Hammond Mfg.
Series 104 |
Factory Lead Time: 20
|
1 - 1$25.00 2 - 3$24.60 4 - 9$24.20 ... |
|
|

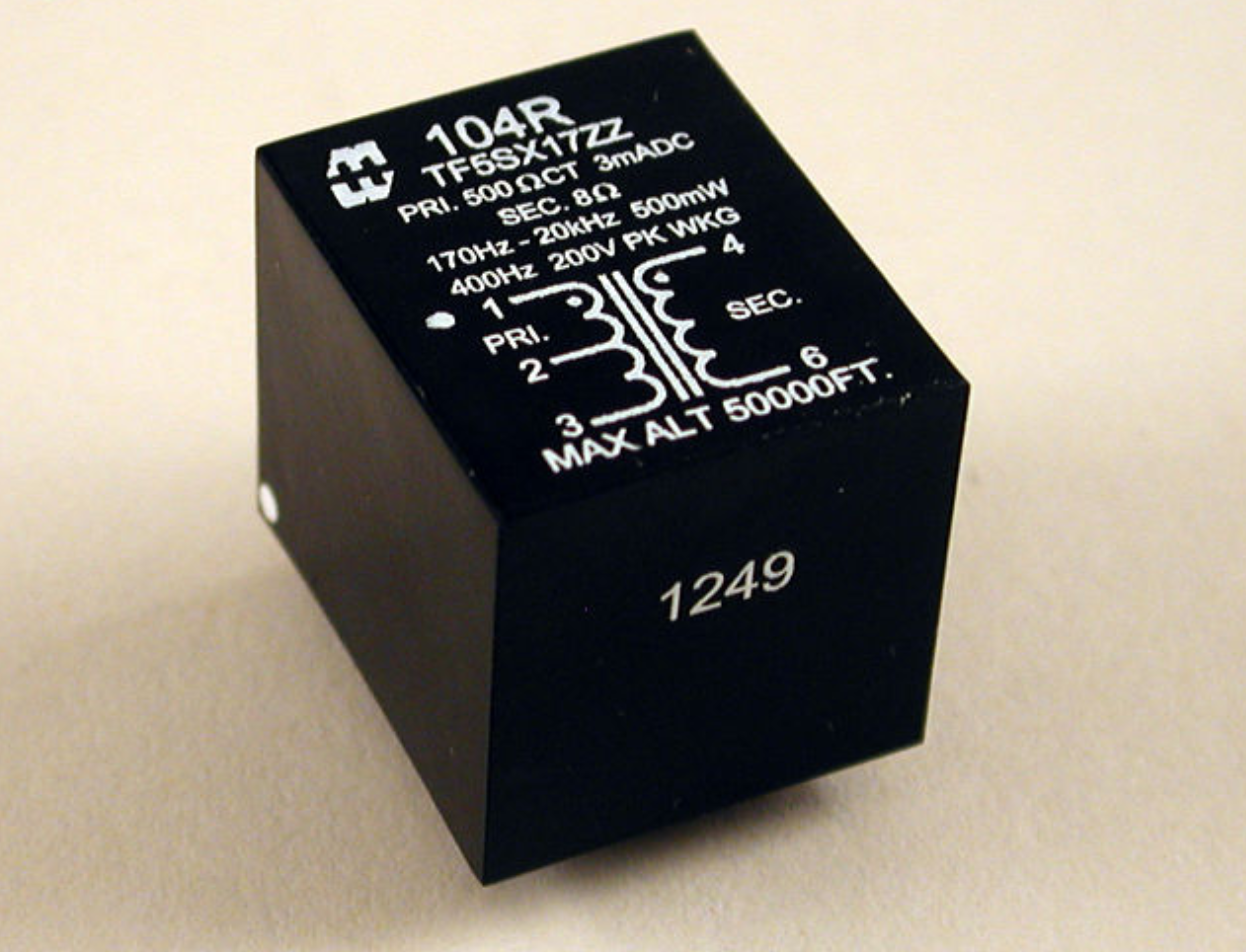

104R
Enclosures
RoHS Compliant
Audio transformer, potted, primary 500 CTohms , secondary 8 ohms AUDIO TX OUTPUT POTTED Hammond PN 104R : UPC [62398… |
Hammond Mfg.
Series 104 |
Factory Lead Time: 20
|
1 - 1$25.00 2 - 3$24.60 4 - 9$24.20 ... |
|
|
104S
Enclosures
RoHS Compliant
Audio transformer, potted, primary 600 CTohms , secondary 150 CT ohms AUDIO TX OUTPUT POTTED Hammond PN 104S : UPC [… |
Hammond Mfg.
Series 104 |
Factory Lead Time: 20
|
1 - 1$25.00 2 - 3$24.60 4 - 9$24.20 ... |
|
|
104SL
Enclosures
RoHS Compliant
Audio transformer, potted, primary 600 CTohms , secondary 150 CT ohms AUDIO TX OUTPUT POTTED LONG Hammond PN 104SL :… |
Hammond Mfg.
Series 104 |
Factory Lead Time: 20
|
1 - 1$26.80 2 - 3$26.40 4 - 9$25.90 ... |
