269JX

Hammond Mfg. | 200 Series | Power chassis Mount
green-check-icon Total Stock: 4
yellow-timer-icon Factory Lead Time: 20
onlycheckmark RoHs Compliant
200

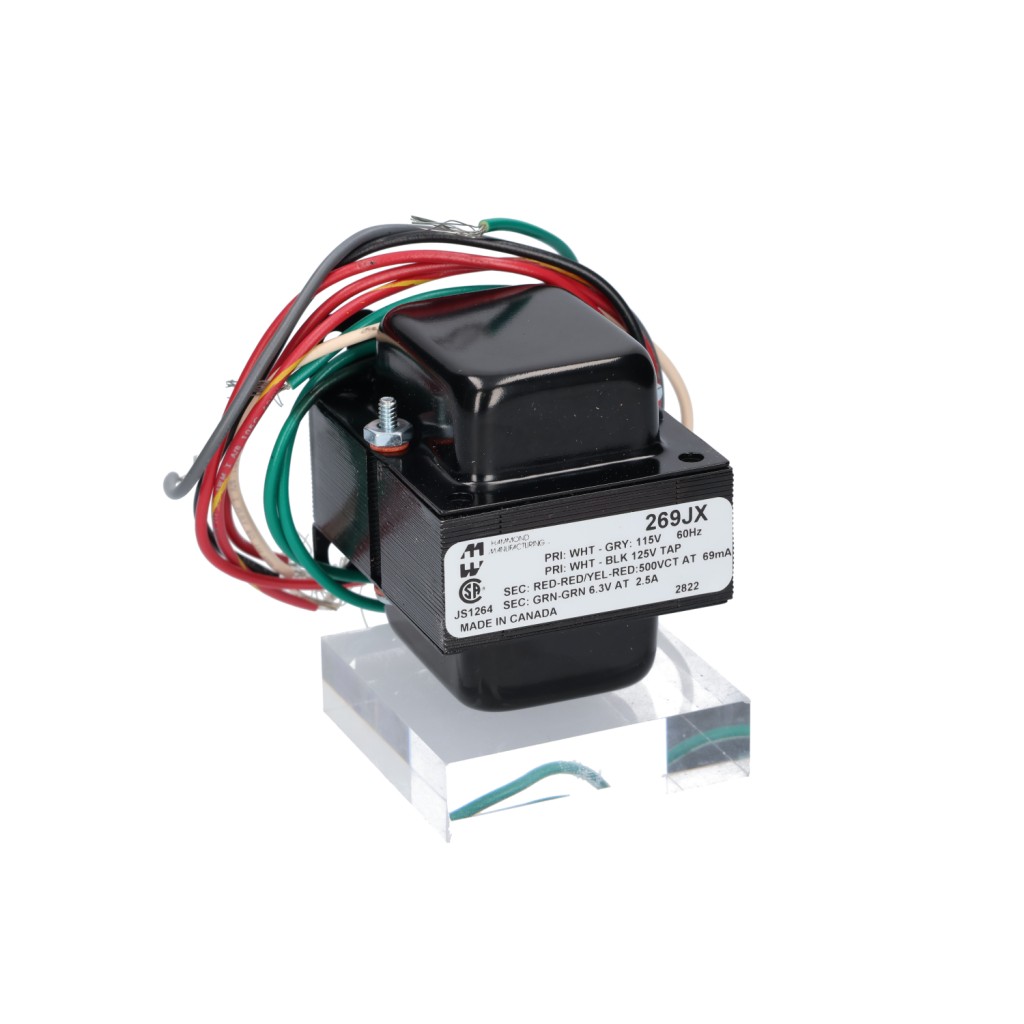

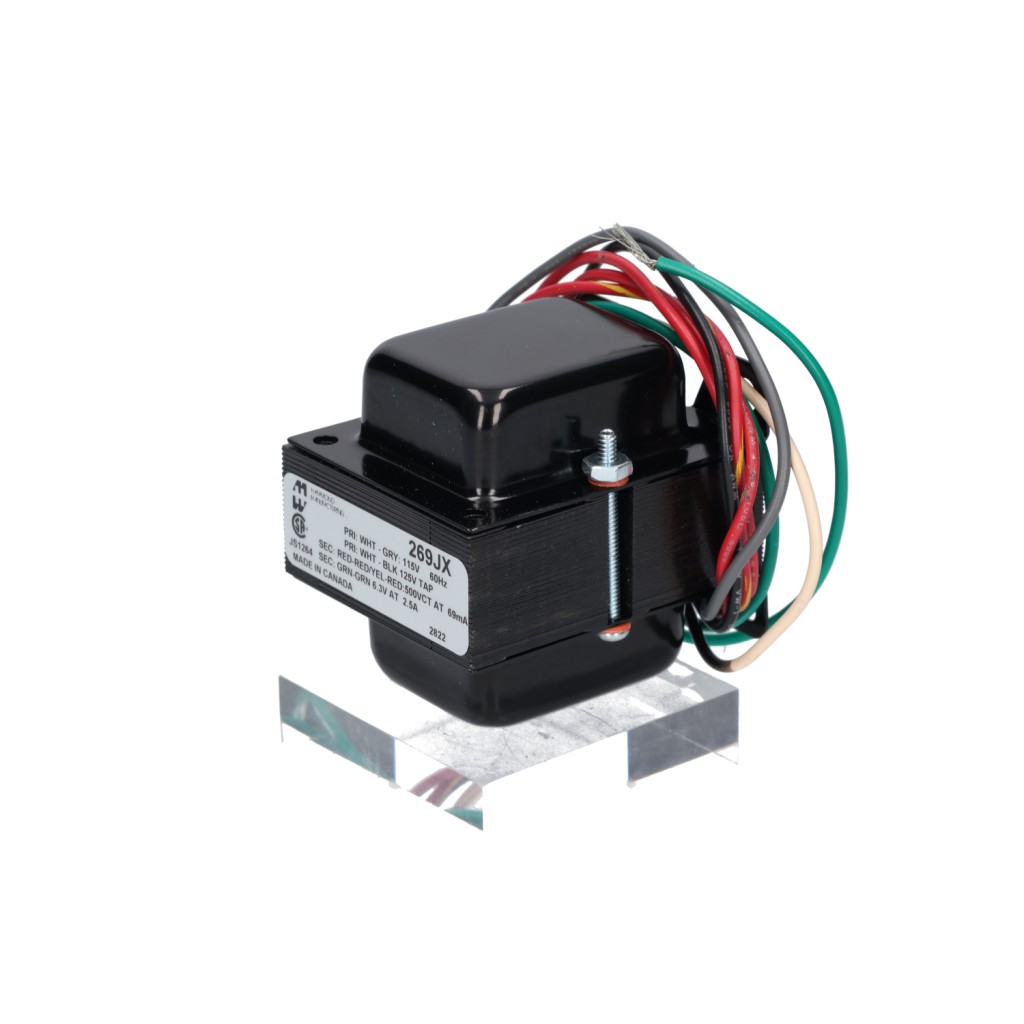

Hammond High Voltage Chassy Mount Power Transformer Primary [115VAC, 50VA @ 60Hz] >> Secondary Filament 1 [6.3V @ 2.5Awith R.M.S. of 500V C.T. @ 69ma.. Overall Dims WidthxDepthxHeight of 2.19 x 2.63 x 2.63. ROHS and CSA.

$62.80

Min: 1  Mult: 1

Product Attributes

Width x Depth x Height (In)

2.19 x 2.63 x 2.63

Leads

Minimum 6" long

Mounting Hole Width Centers

1.75

Mounting Slot

0.19x0.25

Mounting Style

Vertical (X)

Primary Hz

60

RoHS

Compliant

Secondary Filament #1

6.3V @ 2.5A

Secondary RMS

500V C.T. @ 69ma.

VA

50

Width

2.19

Insulation

Class A (105 degrees C)

Hi Pot

Test of 2,000V RMS

Depth

2.63

Height

2.63

CSA

CSA certified (209651)

Series Photo

Click Here

CAD File

Click Here

Manufacturers Series Page

Click Here

Eccn

EAR99

Filament # 1 Vac

6.3V @ 2.5A

Primary VAC

115

A.C. High Voltage Secondary Rms

500V C.T. @ 69ma.

Primary Frequency

60

Pricing Note

Price change ~5.0% on 10/01/22

Power Rating (Va)

50

Mounting Type

Vertical ("X")

Hammond Product Photo

Click Here

Hammond Series

200

Hammond Product Type

transformer

Hammond Product Group

transformers

UPC

623980274805

Lead-Time Weeks

4

Standard Stock

Yes
