Product Attributes

CAD File

Click Here

Series Photo

Click Here

Primary Impedance (ct Ohms)

5,000

Manufacturers Series Page

Click Here

Max ma DC Per Side

318

Maximum D.C. Per Side

318 ma.

Operation

Push-Pull Par. (2 or 4 Tubes)

Overall Dims

3.75 x 4.25 x 4.56

Pricing Note

Price change ~5.0% on 10/01/22

Secondary Impedance (Ohms)

4-8-16

Audio Watts (RMS)

100

Impedance (Ohms)

5,000 ct

Eccn

EAR99

Frequency response

30 Hz to 30 Khz at full rated power (+/- 1 db max. - ref. 1 Khz) minimum

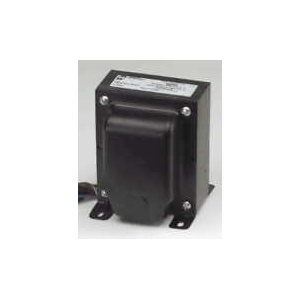

Hammond Product Photo

Click Here

Leads

Insulated flexible 8" min

Suggested Tube Types

807, 5881, EL34, 6146B, 6550B, KT88

Hammond Product Group

transformers

Hammond Product Type

transformer

Hammond Series

1608-1650

Lead-Time Weeks

4

UPC

623980301907

Standard Stock

Yes

Not available at this time.
