filter--iconPrice List

1650F

Hammond Mfg. | 1608-1650 | Audio Transformers
green-check-icon Total Stock: 3
yellow-timer-icon Factory Lead Time: 20
onlycheckmark RoHs Compliant
1608-1650

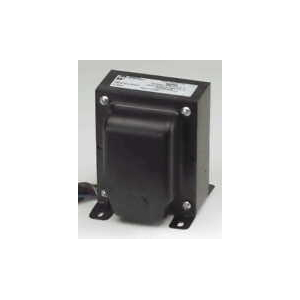

Output transformer, push-pull, 25W , primary 7,600 ct, 128 ma., secondary 4-8-16 AUDIO TX 7.6K OHM 25 WATT Hammond PN 1650F : UPC [623980301501]

$118.80

Min: 1  Mult: 1

Product Attributes

CAD File

Click Here

Series Photo

Click Here

Primary Impedance (ct Ohms)

7,600

Manufacturers Series Page

Click Here

Max ma DC Per Side

128

Maximum D.C. Per Side

128 ma.

Operation

Push-Pull (2 Tubes)

Overall Dims

2.50 x 3.50 x 3.06

Pricing Note

Price change ~5.0% on 10/01/22

Secondary Impedance (Ohms)

4-8-16

Audio Watts (RMS)

25

Impedance (Ohms)

7,600 ct

Eccn

EAR99

Frequency response

30 Hz to 30 Khz at full rated power (+/- 1 db max. - ref. 1 Khz) minimum

Hammond Product Photo

Click Here

Leads

Insulated flexible 8" min

Suggested Tube Types

6L6GC, 6V6, 807, 5881, EL34

Hammond Product Group

transformers

Hammond Product Type

transformer

Hammond Series

1608-1650

Lead-Time Weeks

4

UPC

623980301501

Standard Stock

Yes

Not available at this time.
