filter--iconPrice List

Product Attributes

CAD File

Click Here

Series Photo

Click Here

Primary Impedance (ct Ohms)

5,000

Manufacturers Series Page

Click Here

Max ma DC Per Side

100

Maximum D.C. Per Side

100 ma.

Operation

Push-Pull (2 Tubes)

Overall Dims

2.50 x 3.25 x 3.06

Pricing Note

Price change ~5.0% on 10/01/22

Secondary Impedance (Ohms)

4-8-16

Audio Watts (RMS)

15

Impedance (Ohms)

5,000 ct

Eccn

EAR99

Frequency response

30 Hz to 30 Khz at full rated power (+/- 1 db max. - ref. 1 Khz) minimum

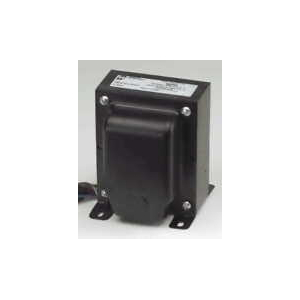

Hammond Product Photo

Click Here

Leads

Insulated flexible 8" min

Suggested Tube Types

2A3, 6A3, 6AQ5, 6B4G, 6L6, 6V6

Hammond Product Group

transformers

Hammond Product Type

transformer

Hammond Series

1608-1650

Lead-Time Weeks

4

UPC

623980300603

Standard Stock

Yes

Not available at this time.
