PCJ664LF

Hammond Mfg. | PCJ-SL | JunctionBox-NonMetal
yellow-timer-icon Factory Lead Time: 10
onlycheckmark RoHs Compliant
PCJ-SL

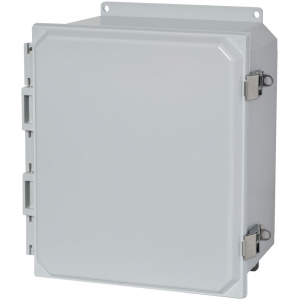

Hammond (5.93 x 6.16 x 3.98) Type 4X Polycarbonate Junction Box With Metal Latch Cover Solid - Metal Latch Cover and Flange Mounting

$77.10

Min: 1  Mult: 1

Product Attributes

Cover Latched Via

Metal Latching

Internal Panel PN

PCJR0505

Material

Polycarbonate

Mounting Style

Flanged

Overall Depth

3.98

Finish

Light gray

IEC 60529

IP66

Overall Length

5.93

MFG-Data-Sheet

Click Here

Overall LxWxD

5.93 x 6.16 x 3.98

Overall Width

6.16

UL 508

Type 1, 2, 3, 4, 4X, 12 and 13

3D CAD URL

Click Here

Series Photo

Click Here

Overall DIMs (L x W x H) Inch

5.93 x 6.16 x 3.98

CAD File

Click Here

CAD URL

Click Here

Height

3.98

Width

6.16

Length

5.93

Optional Inner Panel

PCJR0505

Manufacturers Series Page

Click Here

Operating temperature

-35C to +130C

Construction

Injection moulded polycarbonate thermoplastic enclosure with matching cover is easily punched, cut, or drilled

Gasket

Captive oil resistant gasket provides a positive seal

Cover

Solid - Metal Latch

Panel Width

4.81

Pricing Note

Price change ~2.0% on 10/01/22

Panel Length

4.81

UL 508A

Type 1, 2, 3, 4, 4X, 12 and 13

CSA

1, 2, 3, 4, 4X, 12 and 13

Eccn

EAR99

Overall Dims

(6 x 6 x 4)

IEC

60529, IP66

NEMA

1, 2, 3, 4, 4X, 12 and 13

Mounting

Flange

Hammond Product Photo

Click Here

Hammond Product Group

electrical

Hammond Series

PCJ-SL

Hammond Product Type

enclosure

UV rating

(f1) per UL746C - UV stabilized for outdoor use

Lead-Time Weeks

2

Flamability

V-O per UL 94

UPC

623980982137

Series-Description

Type 4X Polycarbonate Junction Box With Metal Latch Cover

Standard Stock

Yes
