ZF - Cherry - AN9 Series Description

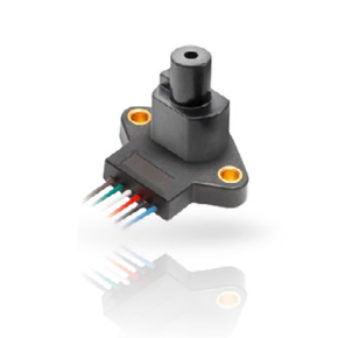

Non-contact, intrinsically linear contact angle position sensors with two independent outputs. The sensors operate through the use of Hall Effect technology with magnetic fields generated by permanent magnets. They provide a linear change in voltage output (ratiometric to the input voltage) corresponding to an angular rotation of the input shaft
Features
Angular position sensor with high tolerance for misalignment
Non-contact angular position sensing and full 360? rotation
Dual independent (redundant) outputs assure high reliability
Custom programming available for: angle range, slope, PWM contact factory
No mechanical interface means no parts to wear out or jam
Comes with 18 AWG 305 mm (12”) wire leads
RoHS Compliant
IP68*
Maximum air gap of 5.5 mm (0.22”)**
Typical Applications
Implement (fork lift, agricultural trailer hitch, etc.) position sensing
Steer, throttle by wire
Gear selection
Zero-contact encoder alternative
Replacement for smart bearings
Outboard trim sensing
Displaying 1 - 3 of 3
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
AN920031
MAGNETIC
 RoHS Compliant
ZF (Cherry) Thin, programmable, non-contact magnetic position sensors capable of continuous rotation with dual output… |
ZF (Formerly Cherry)
Series AN9 |
Factory Lead Time: TBD
|
1 - 2$53.00 3 - 9$51.60 10 - 14$50.30 ... |
|
|
AN920032
MAGNETIC
RoHS Compliant
ZF (Cherry) Thin, programmable, non-contact magnetic position sensors capable of continuous rotation with dual output… |
ZF (Formerly Cherry)
Series AN9 |
Total Stock: 2
Factory Lead Time: TBD
|
1 - 2$51.50 3 - 9$50.10 10 - 14$48.80 ... |
|
|
AN920036
MAGNETIC
RoHS Compliant
ZF (Cherry) Thin, programmable, non-contact magnetic position sensors capable of continuous rotation with dual output… |
ZF (Formerly Cherry)
Series AN9 |
Total Stock: 2
Factory Lead Time: TBD
|
1 - 2$51.50 3 - 9$50.10 10 - 14$48.80 ... |
