FiltersAN8

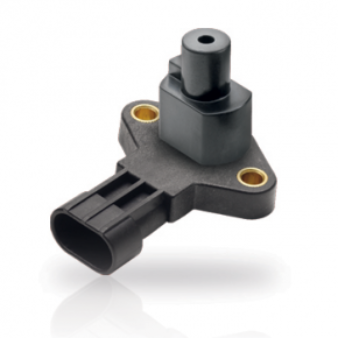

ZF - Cherry AN8 Series
Description
Non-contact, intrinsically linear contact angle position sensors. The sensors operate through the use of Hall Effect technology with magnetic fields generated by permanent magnets. They provide a linear change in voltage output (ratiometric to the input voltage) corresponding to an angular rotation of the input shaft
Features
Angular position sensor with high tolerance for misalignment
Non-contact angular position sensing and full 360? rotation
Custom programming available for: angle range, slope, PWM output, custom magnets – contact factory
No mechanical interface means no parts to wear out or jam
Available with Delphi connector or 12” (305 mm) wire leads
RoHS compliant
IP67
Maximum air gap of 5.5 mm (0.22”)*
Typical Applications
Implement (fork lift, agricultural trailer hitch, etc.) position sensing
Steer, throttle by wire
Gear selection
Zero-contact encoder alternative
Replacement for smart bearings
Outboard trim sensing
Displaying 1 - 4 of 4
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
AN820001
MAGNETIC
 RoHS Compliant
ZF (Cherry) non-contact intrinsically linear angle position sensors, PN - AN820001 |
ZF (Formerly Cherry)
Series AN8 |
Total Stock: 2
Factory Lead Time: TBD
|
1 - 2$47.20 3 - 9$45.90 10 - 14$44.80 ... |
|
|
AN820002
MAGNETIC
RoHS Compliant
ZF (Cherry) non-contact intrinsically linear angle position sensors, PN - AN820002 |
ZF (Formerly Cherry)
Series AN8 |
Factory Lead Time: TBD
|
1 - 2$47.20 3 - 9$45.90 10 - 14$44.80 ... |
|
|
AN820031
MAGNETIC
RoHS Compliant
ZF (Cherry) non-contact intrinsically linear angle position sensors, PN - AN820031 |
ZF (Formerly Cherry)
Series AN8 |
Total Stock: 1
Factory Lead Time: TBD
|
1 - 2$47.70 3 - 9$46.40 10 - 14$45.20 ... |
|
|
AN820032
MAGNETIC
RoHS Compliant
ZF (Cherry) non-contact intrinsically linear angle position sensors, PN - AN820032 |
ZF (Formerly Cherry)
Series AN8 |
Factory Lead Time: TBD
|
1 - 2$47.70 3 - 9$46.40 10 - 14$45.20 ... |
