FiltersRM-Chassis

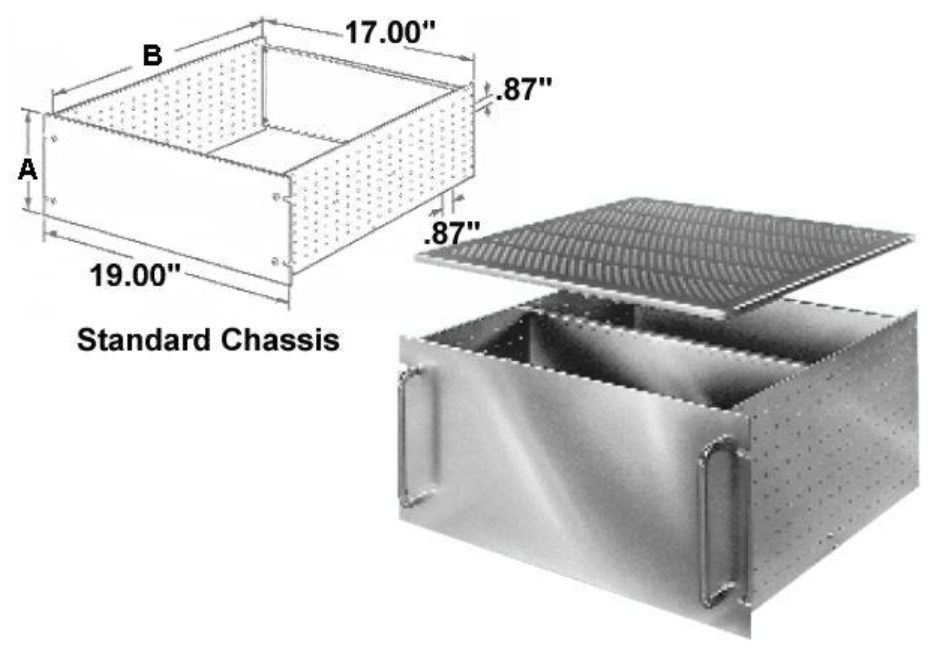

Side Panel mounting holes are punched on .87" grid to allow total flexibility in mounting of components. Rear Panel is fully adjustable from front to rear. Standard 19.00" Front Panels feature "Surface Shield" protection which provides surface for laying out drilling and punching positions.
Design Features
*Front Panel: .12" thick mill finish aluminum with "Surface Shield" protection.
*Side & Rear Panels: .090" aluminum.
*Finish - natural. Other finishes available on request
*Shipped unassembled with all necessary assembly hardware.
*Supports 25 lb. equipment load (50 lb. with optional rear mounting brackets)
Optional Accessories
*Internal Chassis: .090" aluminum, natural finish (see chart for Cat. Nos.). Can be
mounted vertically or horizontally.
*Handles: Chrome plated steel (see chart for Cat. Nos.). 2 required
*Solid Top or Bottom Cover: .05" aluminum, natural finish. Can also be used on bottom
as full depth chassis for mounting components.
*Ventilated Top or Bottom Cover: .05" aluminum, natural finish, .12" X .75" slots for
maximum ventilation.
*Slides: Two-piece slide, 20" long with 15" travel. Supplied in pairs. (Order mounting
brackets BAS-5106 separately) Requires two pairs of panel mounting rails.
*Rear Mounting Brackets - 16 GA. steel used to support rear of chassis. Requires two
pairs of panel mounting rails.
Displaying 1 - 8 of 8
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
RM-14213
Enclosures
 RoHS Compliant
Bud 19.00 x 7.00 x Aluminum Rack Mount Chassis, with Optional Top/Bottom, Handels & Rear Mount |
BUD
Series RM-Chassis |
Factory Lead Time: TBD
|
1 - 2$80.90 3 - 9$79.90 10 - 14$78.20 ... |
|
|
RM-14222
Enclosures
RoHS Compliant
Bud 19.00 x 5.25 x 22.00 Aluminum Rack Mount Chassis, with Optional Top/Bottom, Handels & Rear Mount |
BUD
Series RM-Chassis |
Total Stock: 3
Factory Lead Time: TBD
|
1 - 2$79.70 3 - 9$78.80 10 - 14$77.00 ... |
|
|
RM-14223
Enclosures
RoHS Compliant
Bud 19.00 x 7.00 x 22.00 Aluminum Rack Mount Chassis, with Optional Top/Bottom, Handels & Rear Mount |
BUD
Series RM-Chassis |
Factory Lead Time: TBD
|
1 - 2$93.30 3 - 4$92.30 5 - 9$91.30 ... |
|
|
RM-14224
Enclosures
RoHS Compliant
Bud 19.00 x 8.75 x 22.00 Aluminum Rack Mount Chassis, with Optional Top/Bottom, Handels & Rear Mount |
BUD
Series RM-Chassis |
Factory Lead Time: TBD
|
1 - 2$113.70 3 - 3$112.40 4 - 9$111.20 ... |
|
|
RM-14212
Enclosures
RoHS Compliant
Bud 19.00 x 5.25 x 17.06 Aluminum Rack Mount Chassis, with Optional Top/Bottom, Handels & Rear Mount |
BUD
Series RM-Chassis |
Factory Lead Time: TBD
|
1 - 3$70.80 4 - 9$70.00 10 - 24$68.40 ... |
|
|
RM-14214
Enclosures
RoHS Compliant
Bud 19.00 x 8.75 x 17.06 Aluminum Rack Mount Chassis, with Optional Top/Bottom, Handels & Rear Mount |
BUD
Series RM-Chassis |
Total Stock: 2
Factory Lead Time: TBD
|
1 - 2$97.10 3 - 4$96.10 5 - 9$95.00 ... |
|
|
RM-14215
Enclosures
RoHS Compliant
Bud 19.00 x 10.50 x 17.06 Aluminum Rack Mount Chassis, with Optional Top/Bottom, Handels & Rear Mount |
BUD
Series RM-Chassis |
Factory Lead Time: TBD
|
1 - 2$114.80 3 - 3$113.50 4 - 9$112.30 ... |
|
|
RM-14225
Enclosures
RoHS Compliant
Bud 19.00 x 10.50 x 22.00 Aluminum Rack Mount Chassis, with Optional Top/Bottom, Handels & Rear Mount |
BUD
Series RM-Chassis |
Total Stock: 1
Factory Lead Time: TBD
|
1 - 1$135.50 2 - 3$134.00 4 - 9$132.50 ... |
