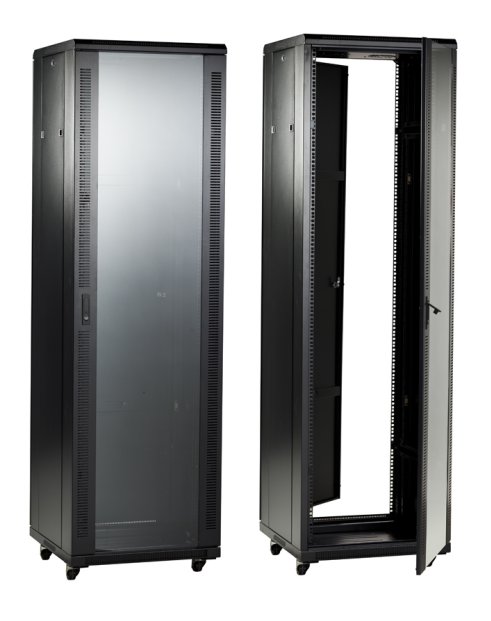

Design Features
Sturdy and durable steel construction - Mounting rails - 14 GA, other parts 18 GA.
Finished complete with ventilated tempered glass front door, locking rear door, removable sides
EIA 310 Compliant for 19" rack-mount equipment
Two pairs of fully adjustable panel mounting rails included. The panel mounting rails include unique notch at each "U" point to allow for rapid equipment location identification
Top mount fan box installed. Two fans for 23" depth, four fans for 31" depth
Includes ventilated shelves (one shelf in the 24U high cabinet, two shelves in the 40U and 45U cabinets)
Includes four casters and four levelers (unassembled)
Large cutout in base. Cutout comes covered by 2.5" deep metal cover plates that allow for adjustable opening providing as much or as little open space for cable access
Two (2) additional 13" x 2.5" cutouts in front and rear of base also come with readily removable covers
Vented at top and bottom of sides, which also can be locked
Comes fully assembled
Finish: Black textured powder coating - easy to clean.
Other sizes and modifications are available upon request.
Displaying 1 - 6 of 6
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
BRP-12206
Enclosures
 RoHS Compliant
BUD Professional Series 70" (40 U) Height Rack with Tempered Glass Door. 19" Panel width and 23.62" De… |
BUD
Series BRP |
Total Stock: 5
Drop Ship Quantity: 5
Factory Lead Time: TBD
|
1 - 1$975.00 2 - 3$956.00 4 - 9$948.00 ... |
|
|
BRP-12216
Enclosures
RoHS Compliant
BUD Professional Series 70" (40 U) Height Rack with Tempered Glass Door. 19" Panel width and 31.5" Dep… |
BUD
Series BRP |
Factory Lead Time: TBD
|
1 - 1$1030.00 2 - 3$1010.00 4 - 9$1000.00 ... |
|
|
BRP-12218
Enclosures
RoHS Compliant
BUD Professional Series 78.75" (45 U) Height Rack with Tempered Glass Door. 19" Panel width and 31.5"… |
BUD
Series BRP |
Total Stock: 6
Drop Ship Quantity: 6
Factory Lead Time: TBD
|
1 - 1$1110.00 2 - 2$1100.00 3 - 4$1090.00 ... |
|
|
BRP-12202
Enclosures
RoHS Compliant
BUD Professional Series 42" (24 U) Height Rack with Tempered Glass Door. 19" Panel width and 23.62" De… |
BUD
Series BRP |
Factory Lead Time: TBD
|
1 - 1$877.00 2 - 3$860.00 4 - 9$852.00 ... |
|
|
BRP-12208
Enclosures
RoHS Compliant
BUD Professional Series 78.75" (45 U) Height Rack with Tempered Glass Door. 19" Panel width and 23.62"… |
BUD
Series BRP |
Factory Lead Time: TBD
|
1 - 1$1050.00 2 - 3$1030.00 4 - 9$1020.00 ... |
|
|
BRP-12212
Enclosures
RoHS Compliant
BUD Professional Series 42" (24 U) Height Rack with Tempered Glass Door. 19" Panel width and 31.5" Dep… |
BUD
Series BRP |
Factory Lead Time: TBD
|
1 - 1$931.00 2 - 3$913.00 4 - 9$905.00 ... |
