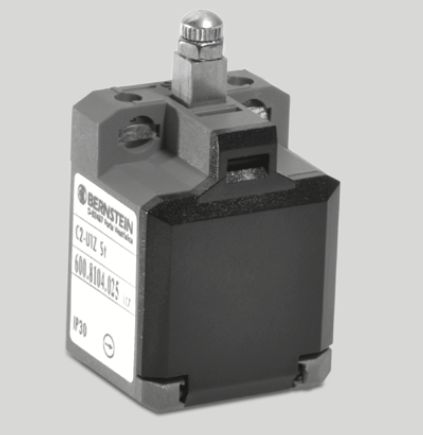

FiltersBerstein C2 Saftey Switch
Recommended use
Ideal for safety applications and position monitoring in confined spaces.
Product advantages
l Miniature switch for safety applications l Two-channel safety monitoring possible l With captive snap-on cover
l Small hysteresis in snap action system
Design layout
• Slow-action and snap-action contacts
• Versions: 1 NC / 1NO, 2 NC, 2 NO
• All NC contacts with ? in the circuit diagram are positively opening contacts
• Type: Zb (galvanically isolated changeover contact)
Installation advantages
l Snap-on cover can be released with screwdriver
l Cover opening range 180° (cover can also be detached
from hinge)
l Cover protects switching element during installation
l Screw connections with self-lifting clamping plates
l Cover transparent for adjustment and visual inspection l Easy-action cover lock (close and press)
Displaying 1 - 4 of 4
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
600.8801.003
Saftey Limit (Slow)
Altech Enclosed Plastic Body Limit Switches, Slow Action With [Switching Operation - 2 NC Contacts] and [Maximum Swit… |
Altech
Series C2-W |
Factory Lead Time: TBD
|
1 - 3$35.50 4 - 9$34.90 10 - 24$34.30 ... |
|
|
600.8101.001
Saftey Limit (Slow)
Altech Enclosed Plastic Body Limit Switches, Slow Action With [Switching Operation - 1 NC / 1 NO Contacts] and [Maxim… |
Altech
Series C2-W |
Factory Lead Time: TBD
|
1 - 3$29.70 4 - 9$29.10 10 - 24$28.70 ... |
|
|
600.8801.005
Saftey Limit (Slow)
Altech Enclosed Plastic Body Limit Switches, Slow Action With [Switching Operation - 2 NO Contacts] and [Maximum Swit… |
Altech
Series C2-W |
Factory Lead Time: TBD
|
1 - 2$37.70 3 - 9$37.10 10 - 14$36.40 ... |
|
|
600.8351.002
Saftey Limit (Snap)
Altech Enclosed Plastic Body Limit Switches, Snap Action With [Switching Operation - 1 NC / 1 NO Contacts] and [Maxim… |
Altech
Series C2-W |
Factory Lead Time: TBD
|
1 - 3$31.20 4 - 9$30.60 10 - 24$30.10 ... |
