DB1C-C1AA
Total Stock: 4
Factory Lead Time: 64
RoHs Compliant

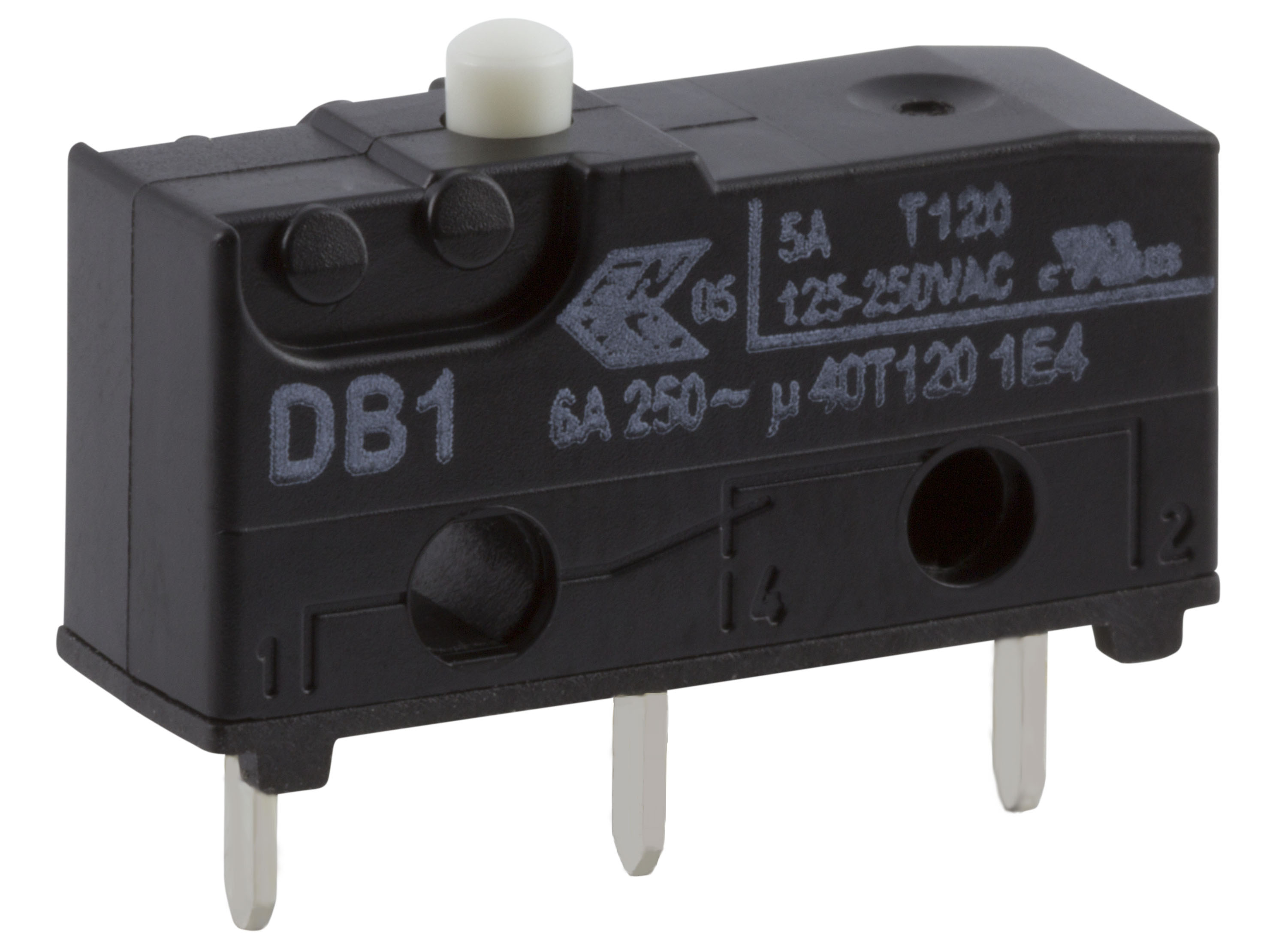

DBSub-Minature S.P.D.T Switch with Button Actuator and 6A, 250VACRating
Hawk Electronics
Total Stock: 4
Factory Lead Time: 64
RoHs Compliant
Product Attributes
Overall Dims (In)
0.8 x 0.25 x 0.4
Feature 4
Actuators can also be retrofitted
Feature 6
Ambient temperature -40 to max. +120 °C
Feature 5
High contact stability due to specific contact materials
Feature 8
Approved according to EN 61058 and UL 1054
Feature 3
Wide variety of auxiliary actuators available
Feature 2
Switching Current 0.1 A to 10 A AC (model dependant)
Feature 1
Precision subminiature switch with high repeat accuracy
Feature 9
Degree of protection IP50
Feature 7
Mechanical life up to 15 x 106 actuations
MFG-PackageSize
1200
Alternate PN 1
DB1C-C1AA
Electrical Rating
6A 250VAC, 0.1A 80VDC
Operating Force(cN)
150
Electrical Life (UL)
6,000
Electrical Life (EN)
10,000
Contact Configuration
SPDT (T120)
Temperature Rating
120C
Terminal Type
0.051 x 0.020 (1.3 x 0.5) PCB Straight
Actuator Type
Spherical Head Button
Attributes for sub
DB1CC1AA (CHERY)
Series Attributes
Base Material
PET (UL 94 V-0)
Contact Gap
< 3mm
Country of Origin
DE
ECN
EAR99
Harmonized Code
8536.50.9040
Total Travel
1.6mm
