DB1C-A1RC
Total Stock: 4
Factory Lead Time: 64
RoHs Compliant

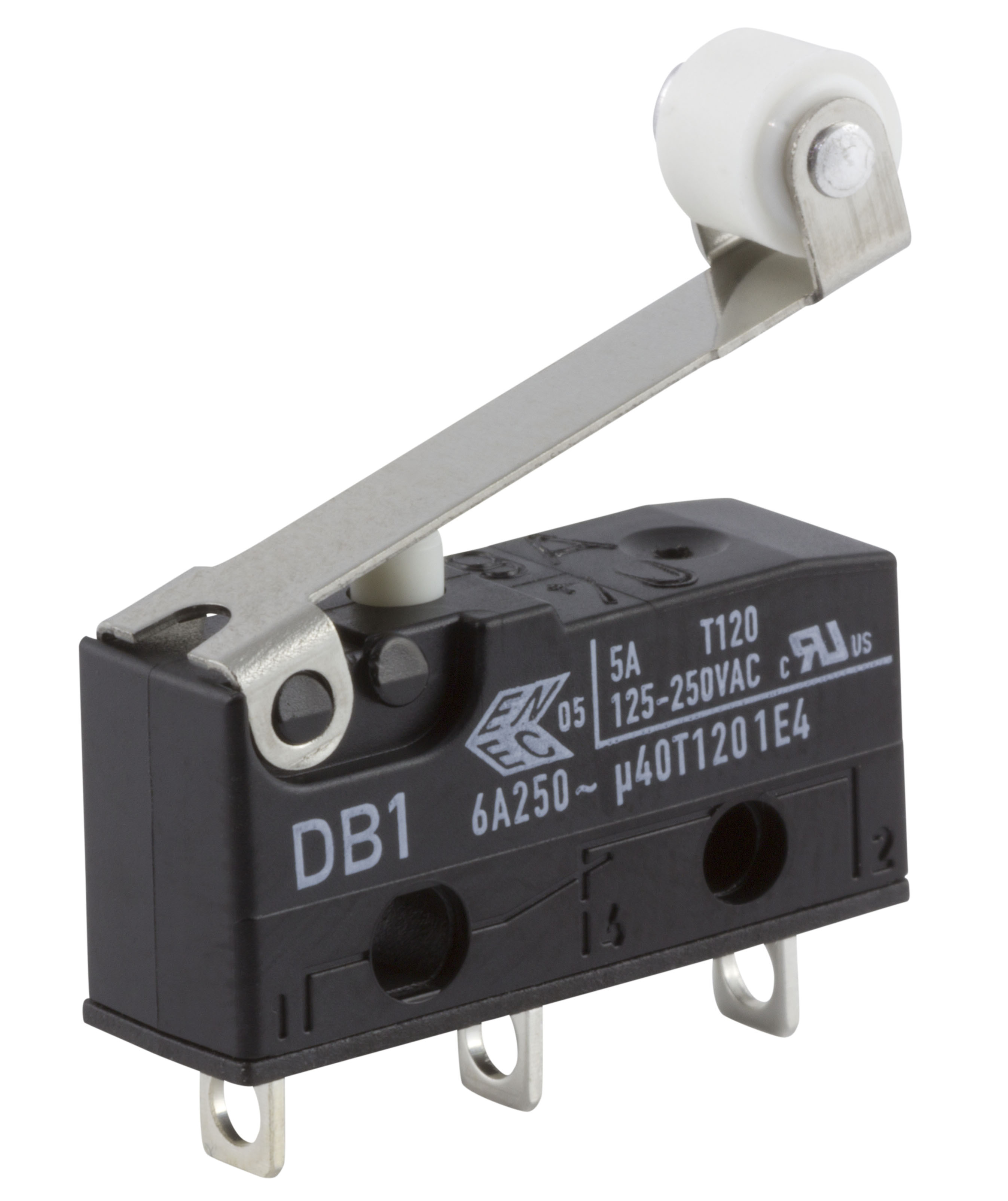

DBSub-Minature S.P.D.T Switch with Roller Lever Actuator and 6A, 250VACRating
Hawk Electronics
Total Stock: 4
Factory Lead Time: 64
RoHs Compliant
Product Attributes
Overall Dims (In)
0.8 x 0.25 x 0.4
Feature 9
Degree of protection IP50
Feature 8
Approved according to EN 61058 and UL 1054
Feature 7
Mechanical life up to 15 x 106 actuations
Feature 6
Ambient temperature -40 to max. +120 °C
Feature 4
Actuators can also be retrofitted
Feature 3
Wide variety of auxiliary actuators available
Feature 2
Switching Current 0.1 A to 10 A AC (model dependant)
Feature 1
Precision subminiature switch with high repeat accuracy
Feature 5
High contact stability due to specific contact materials
Alternate PN 1
DB1CA1RC
MFG-PackageSize
560
Electrical Rating
6A 250VAC, 0.1A 80VDC
Electrical Life (UL)
6,000
Electrical Life (EN)
10,000
Operating Force(cN)
150
Contact Configuration
SPDT (T120)
Temperature Rating
120C
Terminal Type
Short Solder
Actuator Type
Roller Lever SR 0.185 (4.7)
Series Attributes
Base Material
PET (UL 94 V-0)
Contact Gap
< 3mm
Country of Origin
DE
ECN
EAR99
Harmonized Code
8536.50.9040
Total Travel
1.6mm
