TRG22F2BBRLN
Factory Lead Time: 120
RoHs Compliant

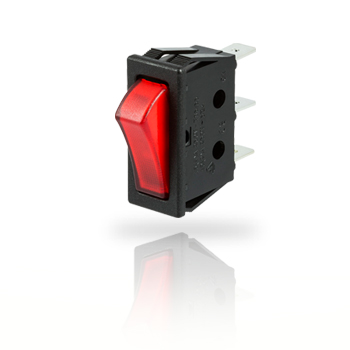

TRZF (Cherry) 16 A 250 VAC Single Pole Rocker Switch, PN - TRG22F2BBRLN
Hawk Electronics
Factory Lead Time: 120
RoHs Compliant
Product Attributes
Overall Dims (In)
1.07 x 0.787 x 0.429
Feature 6
Industry-standard cut-out dimensions
Feature 5
Mechanical life min. 50,000 operations
Feature 4
Contact gap > 3mm
Feature 3
Double-throw and three-position versions available
Feature 2
Lighted and non-lighted versions
Feature 1
16A rocker switch in 11mm wide package
MFG-PackageSize
100
Contact Rating
16A 125/250 VAC ¼HP,3/4 HP 250VAC,16(4)A 250V~T85/55 VDE
Switch Action
Single Pole
Switch Function
On-Off
Terminal Type
0.250†(6.3) QC
Actuator Type
Curve
Actuator Marking
Blank
Housing Color
Black
Actuator Color
Red
Lighted
Lighted (Bulb 125VAC)
Splashproof
NO Rocker Boot
Series Attributes
Actuator Material (Lighted)
Polycarbonate
Temperature Range
-20C to + 85C VDE
Spring Material
Steel Wire
Moveable Arm Material
Silver-Plated Copper Alloy
Mechanical Life
Minimum 10,000 operations
Insulation Resistance
100 Mega Ohms min at 500VDC
Initial Contact Resistance
0.020 Ohms max
Electrical Life at Rated Load (VDE)
10,000 minimum operations
Electrical Life at Rated Load (UL)
6,000 minimum operations
Dielectric Strength
1,000VAC for 1 min
Contact Material
Silver Alloy
Base Material
Nylon 66 94V-2
Actuator Material (Non-Lighted)
Nylon 66 94V-2
Terminal Material
Tin-Plated Copper Alloy
