WRG32F5FBBNN
Factory Lead Time: 120
RoHs Compliant

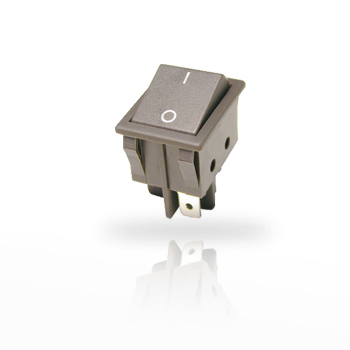

WRDouble-Pole Power Rocker Switch Double-Pole On-Off With 6.3mm Q.C. Terminals
Hawk Electronics
Factory Lead Time: 120
RoHs Compliant
Product Attributes
Overall Dims (In)
1.063 x 0.846 x 0.787
Feature 6
Contact gap >3mm
Feature 5
Mechanical life min. 50,000 operations
Feature 4
Maintained-action and momentary
Feature 3
Single-throw and double-throw
Feature 2
Lighted and non-lighted versions available
Feature 1
Rugged 2-pole rocker switch for high current applications
Feature 7
Splash-proof option available
MFG-PackageSize
100
Contact Rating
16A 125/250 VAC 1/4HP [3/4HP 250 VAC cULus]
Circuitry
Double Pole
Switch Function
On - Off
Terminal Type
0.250 ((6.3) QC
Actuator Type
Flat
Actuator Marking
0 - (Horizontal)
Housing Color
Black
Actuator Color
Black
Lighted
Non-Lighted
Mat'l Actuator
Nylon 66 94V-2
Replacement Bulb
N/A
Splashproof
No Boot
Series Attributes
China Rohs
Yes
Material Base
Nylon 66 94V-2
Mat'l Terminals
Tin-Plated Copper Alloy
Mat'l Spring
Steel Wire
Mat'l Move Arm
Silver-Plated Copper Alloy
Insulation Resista
100M ohms min at 500VDC
Init Cnt Resistanc
.020 ohms max
Elec Life VDE
10,000 at Load
Elec Life UL
6,000 at Load
Dielectric Strengt
1000VAC for 1 Min
UL File
E23301
