Product Attributes

Overall Dims (In)

1.063 x 0.846 x 0.787

Feature 6

Contact gap >3mm

Feature 5

Mechanical life min. 50,000 operations

Feature 4

Maintained-action and momentary

Feature 3

Single-throw and double-throw

Feature 2

Lighted and non-lighted versions available

Feature 1

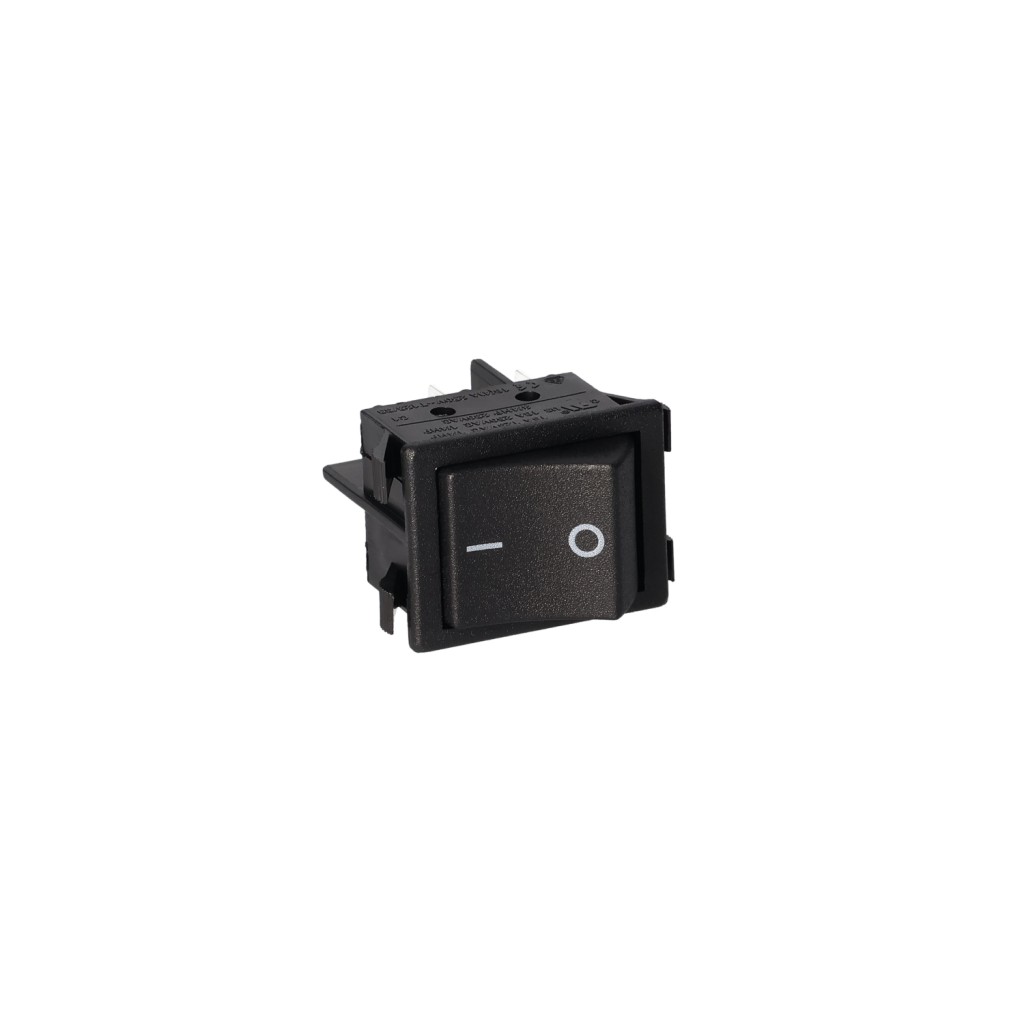

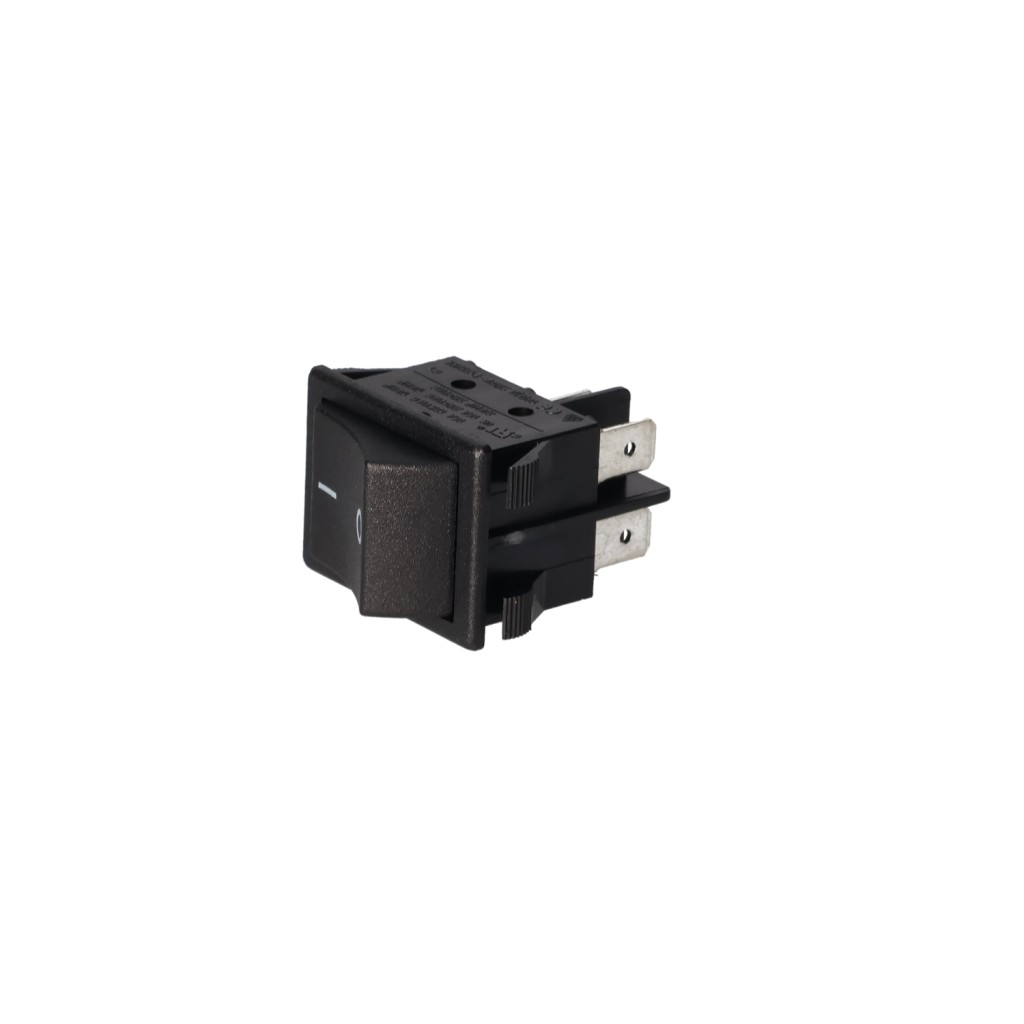

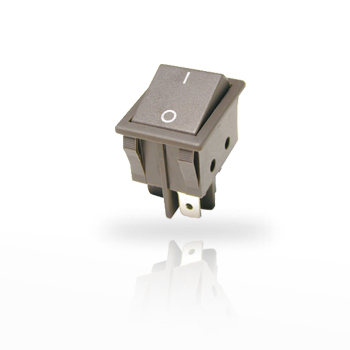

Rugged 2-pole rocker switch for high current applications

Feature 7

Splash-proof option available

MFG-PackageSize

100

Contact Rating

16A 125/250 VAC 1/4HP [3/4HP 250 VAC cULus]

Circuitry

Double Pole

Switch Function

On - Off

Terminal Type

0.250 ((6.3) QC

Actuator Type

Curved

Actuator Marking

0 - (Horizontal)

Housing Color

Black

Actuator Color

Black

Lighted

Non-Lighted

Mat'l Actuator

Nylon 66 94V-2

Replacement Bulb

N/A

Splashproof

No Boot

China Rohs

Yes

Material Base

Nylon 66 94V-2

Mat'l Terminals

Tin-Plated Copper Alloy

Mat'l Spring

Steel Wire

Mat'l Move Arm

Silver-Plated Copper Alloy

Insulation Resista

100M ohms min at 500VDC

Init Cnt Resistanc

.020 ohms max

Elec Life VDE

10,000 at Load

Elec Life UL

6,000 at Load

Dielectric Strengt

1000VAC for 1 Min

UL File

E23301
