KFB3ALA2RBB

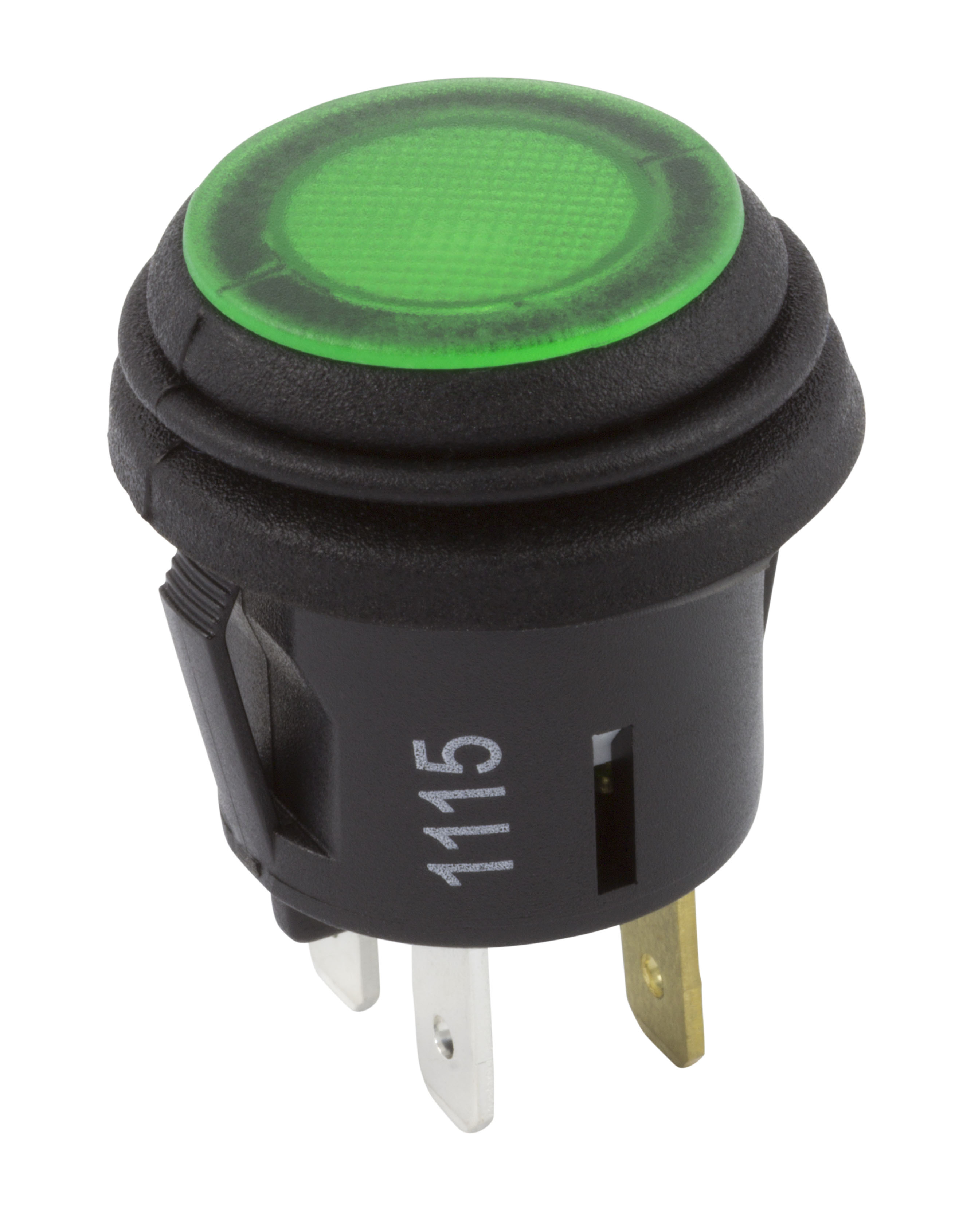

ZF (Formerly Cherry) | KF | Round Rocker Switch
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
KF
10A 125VAC - 6A 250VAC - 1/2HP 125/250VAC DPST - On-Off (Illuminated) IP65 Multi-Pole Round Pushbutton with Q.C. 0.187" (4.8mm) Terminals

$4.18

Min: 1  Mult: 1

Product Attributes

Overall Dims (In)

0.780 x 0.780 x 0.571

Feature 5

Maintained-action and momentary options

Feature 6

Snap-in mounting

Feature 4

Lighted and non-lighted versions available

Feature 3

Single-pole and double-pole configurations

Feature 2

AC and DC electrical ratings

Feature 1

Compact pushbutton switch complying to IP65

MFG-PackageSize

1000

Contact Rating

10A 125VAC 6A 250VAC 1/2 HP 125/250VAC (cULus)

Switch Action

Double Pole

Switch Function

On-Off

Lighting Options

110V Neon Bulb

Terminal Type

0.187 (4.75) Quick Connect

Actuator Type

Lighted

Actuator Color

Red

Housing Color

Black

Actuator Marking

Blank

Actuator Material

Polycarbonate 94V-2

Terminal Material

Silver Plated Copper Alloy

Temperature Range

-20C to + 85C

Spring Material

Steel

Seal

IP65

Rubber Boot Material

Silicone

RoHS

Yes

Moveable Arm Material

Silver Plated Copper Alloy

Mechanical Life

100,000 cycles

Insulation Resistance

100 Mega Ohms min at 500 VDC

Initial Contact Resistance

0.050 Ohms max

Housing Material

Nylon 66 94V-2

Electrical Life at Rated Load (UL)

6,000 minimum operations

Dielectric Strength

1500VAC for 1 minute

DC Electrical Life

10,000 cycles

Contact Material

Silver Alloy

VDC Rating

20A 14VDC; 10A 28 VDC
