1825008-6

TE Connectivity | Rotary (Dip)
green-check-icon Total Stock: 249
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

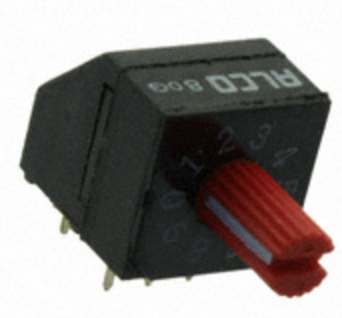

Switch DIP N.O./N.C. SP10T 10 Shaft 20VAC 20VDC 0.4VA PC Pins 2.54mm Thru-Hole DRM10RA04=Rot Dip R/A

$4.93

Min: 5  Mult: 1

Product Attributes

Actuator Type

MINI-PLASTIC SHAFT

Mounting Feature

THROUGH HOLE-RIGHT ANGLE

Number of Positions

10

Number of Switch Sections

1

Operating Temperature-Max

85 Cel

Operating Temperature-Min

-30 Cel

Packing Method

TUBE

Status

Active

Switch Action

LATCHED

Switch Function

BINARY CODED DECIMAL

Switch Type

ROTARY CODED SWITCH

Manufacturer Series

1825008

EU RoHS Compliant

Yes

Body Breadth

10 mm

Body Height

10 mm

Body Length or Diameter

12 mm

Contact AC Max Rating R Load

.02A@20VAC

Contact Current(AC)-Max

0.0200 A

Contact Current(DC)-Max

0.0200 A

Contact DC Max Rating R Load

.02A@20VDC

Contact Voltage(AC)-Max

20 V

Contact Voltage(DC)-Max

20 V

Electrical Life

10000 Cycle(s)

Termination Type

SOLDER
