Price List
87175-2
Factory Lead Time: TBD
RoHs Compliant

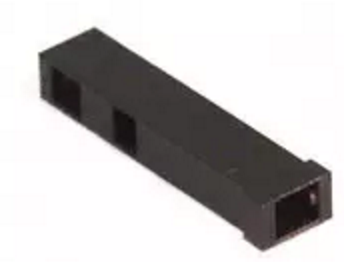

01 LOCKING CLIP HSG SR .100CL AMPMODU Series 1 Position Crimp Terminal Receptacle Housing Connector
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Agency Approvals
CSA, UL
Number of Rows
1
Pin Spacing
0.1 "
Primary Type
Interconnect System
Special Features
Closed End
Stamped
No
Standards
UL E28476, CSA LR7189, RoHS Compliant, ELV Compliant
Temperature, Operating
-65 to +105 °C
Termination
Crimp Snap-In
Termination Resistance
12 Milliohms
Type
Cable Socket
Voltage, Dielectric Strength
750 V
Number of Positions
1
Number of Contacts
1
Angle
Straight
Brand/Series
AMPMODU Series
Centerline, Matrix
0.1 in.
Color
Black
Contact Type
Crimp-Snap
Current, Ratings
3 A
Flammability Rating
UL94V-0
Insulation Resistance
5000 Megohms
Length, Overall
0.108 "
Material, Housing
Polyester
Mating Polarization
No
Voltage, Rating
250 VAC
Series Attributes
Not available at this time.
