Price List
5103308-8
Factory Lead Time: TBD
RoHs Compliant

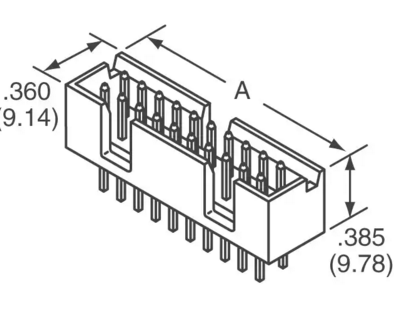

A/L LOW PRO HDR 40P VERT BLACK
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
UL Flammability Code
94V-0
Option
GENERAL PURPOSE
Operating Temperature-Min
-65 Cel
Operating Temperature-Max (Cel)
105
Number of Rows Loaded
2
Number Of PCB Rows
2
Number Of Connectors
ONE
Mounting Type
BOARD
Mounting Style
STRAIGHT
Mounting Option 1
LOCKING
Mixed Contacts
NO
PCB Contact Pattern
RECTANGULAR
PCB Contact Row Spacing (mm)
2.54
Polarization Key
CTR W/GUIDE SLOTS
Total Number of Contacts
40
Terminal Type
SOLDER
Terminal Pitch
2.54 mm
Terminal Length
0.1200 inch
Sub Category
Headers and Edge Type Connectors
Status
Active
Reliability
COMMERCIAL
Reference Standard
UL, CSA
REACH Compliant
Yes
Rated Current (Signal)
1 A
MIL Conformance
NO
Mating Information
MULTIPLE MATING PARTS AVAILABLE
Mating Contact Row Spacing (inch)
0.1
Contact Material
COPPER ALLOY
Contact Gender
MALE
Contact Finish - Termination
TIN (100) OVER NICKEL (50)
Contact Finish - Mating
GOLD FLASH OVER PALLADIUM NICKEL (15)/GOLD (15) OVER NICKEL (50)
Connector Type
BOARD CONNECTOR
China RoHS Compliant
Yes
Body/Shell Style
RECEPTACLE
Body Diameter
2.3 inch
Body Depth
0.3880 inch
Body Breadth
0.3600 inch
Contact Pattern
RECTANGULAR
Contact Style
SQ PIN-SKT
Dielectric Withstanding Voltage (V)
1000VAC
Mating Contact Pitch (inch)
0.1
Manufacturer Series
5103308
JESD-609 Code
e3
Insulator Material
GLASS FILLED NYLON
Insulator Color
BLACK
Insulation Resistance
1.00E9 ohm
IEC Conformance
NO
Filter Feature
NO
EU RoHS Compliant
Yes
DIN Conformance
NO
Additional Feature
LOW PROFILE, POLARIZED
Series Attributes
Not available at this time.
