5208008-2
Total Stock: 410
Factory Lead Time: TBD
RoHs Compliant

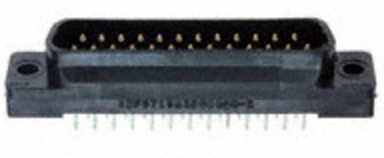

D Sub 25 Pin Vertical Mount Plug HD-20 PLUG
Hawk Electronics
Total Stock: 410
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
UL Flammability Code
94V-0
Option
GENERAL PURPOSE
Operating Temperature-Min
-55 Cel
Operating Temperature-Max (Cel)
105
Number of Rows Loaded
2
Number Of PCB Rows
2
Mounting Type
BOARD
Mounting Style
STRAIGHT
Mounting Option 2
LOCKING
Mounting Option 1
HOLE .112-.124
Mixed Contacts
NO
PCB Contact Pattern
STAGGERED
PCB Contact Row Spacing (mm)
2.8448
Rated Current (Signal)
6 A
Total Number of Contacts
25
Terminal Type
SOLDER
Terminal Pitch
2.77 mm
Terminal Length
0.1250 inch
Sub Category
D Type Connectors
Status
Active
Shell Size
3/B
Shell Material
POLYESTER
Reliability
COMMERCIAL
Reference Standard
UL, CSA
MIL Conformance
NO
Mating Contact Row Spacing (inch)
0.112
Contact Resistance
20 mohm
Contact Pattern
STAGGERED
Contact Material
NOT SPECIFIED
Contact Gender
MALE
Contact Finish - Mating
NOT SPECIFIED
Connector Type
D SUBMINIATURE CONNECTOR
Body/Shell Style
PLUG
Body Diameter
2.09 inch
Body Depth
0.2460 inch
Body Breadth
0.4100 inch
Contact Style
RND PIN-SKT
Dielectric Withstanding Voltage (V)
1000VAC
DIN Conformance
NO
Mating Contact Pitch (inch)
0.109
Manufacturer Series
5208008
Insulator Material
POLYESTER
Insulator Color
BLACK
Insulation Resistance
1.00E9 ohm
Insertion Force-Max (N)
2.224
IEC Conformance
NO
Filter Feature
NO
EU RoHS Compliant
Yes
Empty Shell
NO
Additional Feature
ROHS COMPLIANT
Series Attributes
Not available at this time.
