1658681-1
Total Stock: 912
Factory Lead Time: TBD
RoHs Compliant

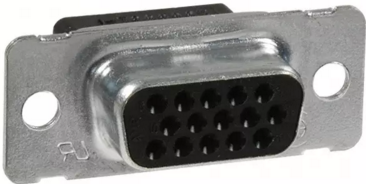

HDP-22 RCPT SIZE 1 15 POSN Prices Valid while supplies last.
Hawk Electronics
Total Stock: 912
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Withdrawl Force-Min (N)
.1112
Package Description
ROHS COMPLIANT
Option
GENERAL PURPOSE
Number of Rows Loaded
3
Mounting Type
CABLE AND PANEL
Mounting Option 2
LOCKING
Mounting Option 1
HOLE .112-.124
Mixed Contacts
NO
MIL Conformance
NO
Mating Information
MULTIPLE MATING PARTS AVAILABLE
Mating Contact Row Spacing (inch)
0.112
Rated Current (Signal)
5 A
Reference Standard
UL
Reliability
COMMERCIAL
Wire Size-Min
22 AWG
Wire Size-Max
22 AWG
UL Flammability Code
94V-0
Total Number of Contacts
15
Terminal Type
CRIMP
Sub Category
D Type Connectors
Status
Active
Shell Size
1/E
Shell Material
STEEL
Shell Finish
TIN
Mating Contact Pitch (inch)
0.109
Manufacturer Series
1658681
Contact Material
NOT SPECIFIED
Contact Gender
FEMALE
Contact Finish - Mating
NOT SPECIFIED
Contact Design
PREASSEM CONN
Connector Type
D SUBMINIATURE CONNECTOR
China RoHS Compliant
Yes
Body/Shell Style
RECEPTACLE
Body Diameter
1.21 inch
Body Depth
0.4320 inch
Body Breadth
0.4940 inch
Additional Feature
AMPLIMITE
Contact Pattern
STAGGERED
Contact Resistance
15 mohm
Insulator Material
POLYETHYLENE
Insulator Color
BLACK
Insulation Resistance
5.00E9 ohm
Insertion Force-Max (N)
1.112
IEC Conformance
NO
Filter Feature
NO
EU RoHS Compliant
Yes
Empty Shell
YES
DIN Conformance
NO
Dielectric Withstanding Voltage (V)
1000VAC
Contact Style
RND PIN-SKT
