52430-1
Total Stock: 2500
Factory Lead Time: TBD
RoHs Compliant

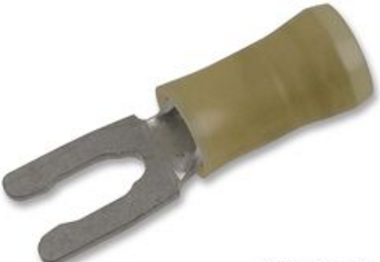

TERMINAL PIDG SPRING SPADE 12-10 6
Hawk Electronics
Total Stock: 2500
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Color
Yellow
Width - Outer Edges
0.312" (7.92mm)
Type
Spring, Snap
Tongue Inside Opening
0.140" (3.56mm)
Termination
Crimp
Stud/Tab Size
6 Stud
Mounting Type
Free Hanging (In-Line)
Material - Insulation
Polyamide (PA), Nylon
Length - Termination
0.601" (15.27mm)
Length - Ring Center to Termination
0.242" (6.15mm)
Length - Overall
1.131" (28.73mm)
Insulation Diameter
0.150" ~ 0.250" (3.81mm ~ 6.35mm)
Insulation
Insulated
Features
Serrated Termination
Contact Material
Phosphor Bronze
Contact Finish
Tin
Wire Gauge
10-12 AWG
Series Attributes
Not available at this time.
