SDN2524100P
Total Stock: 16
Factory Lead Time: TBD
RoHs Compliant

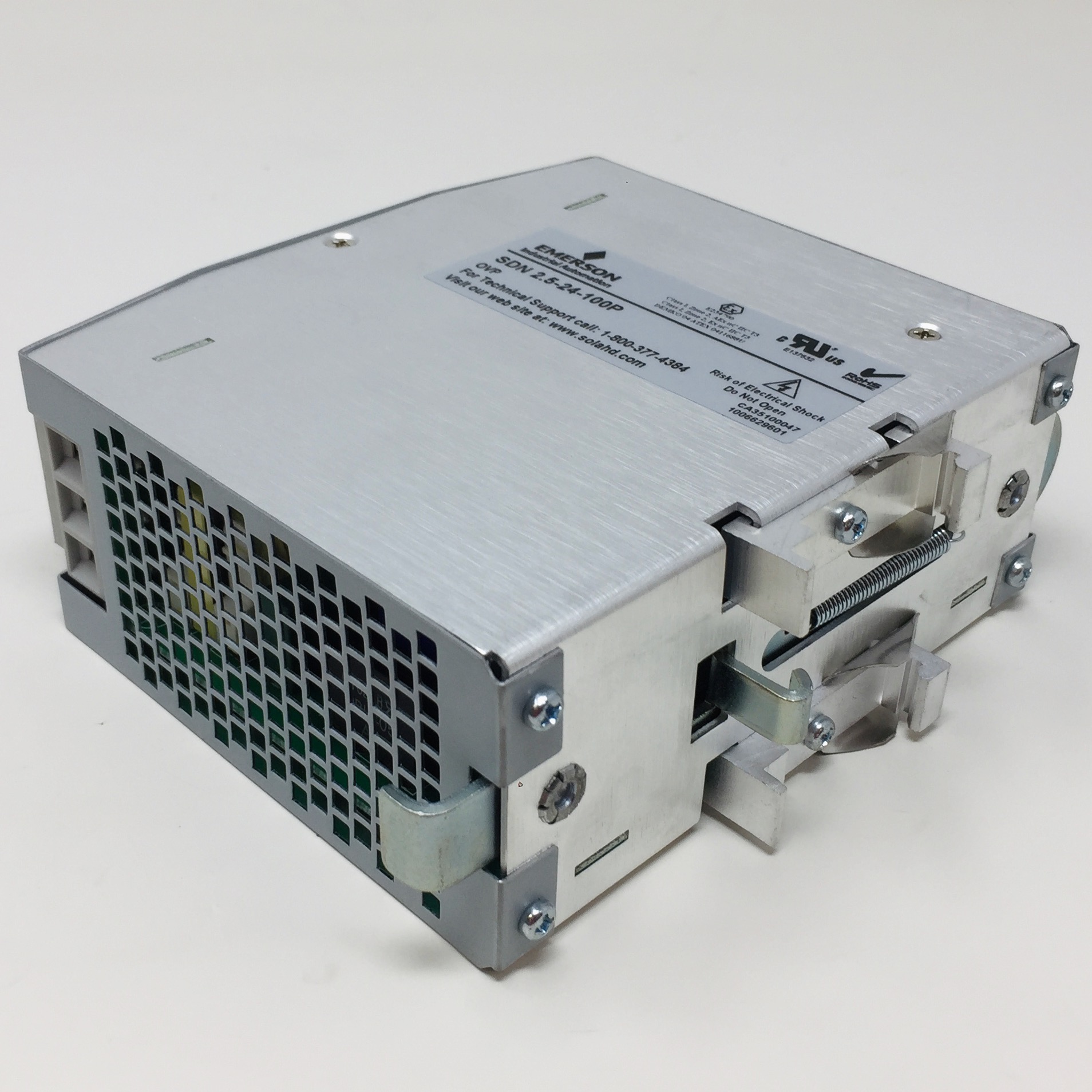

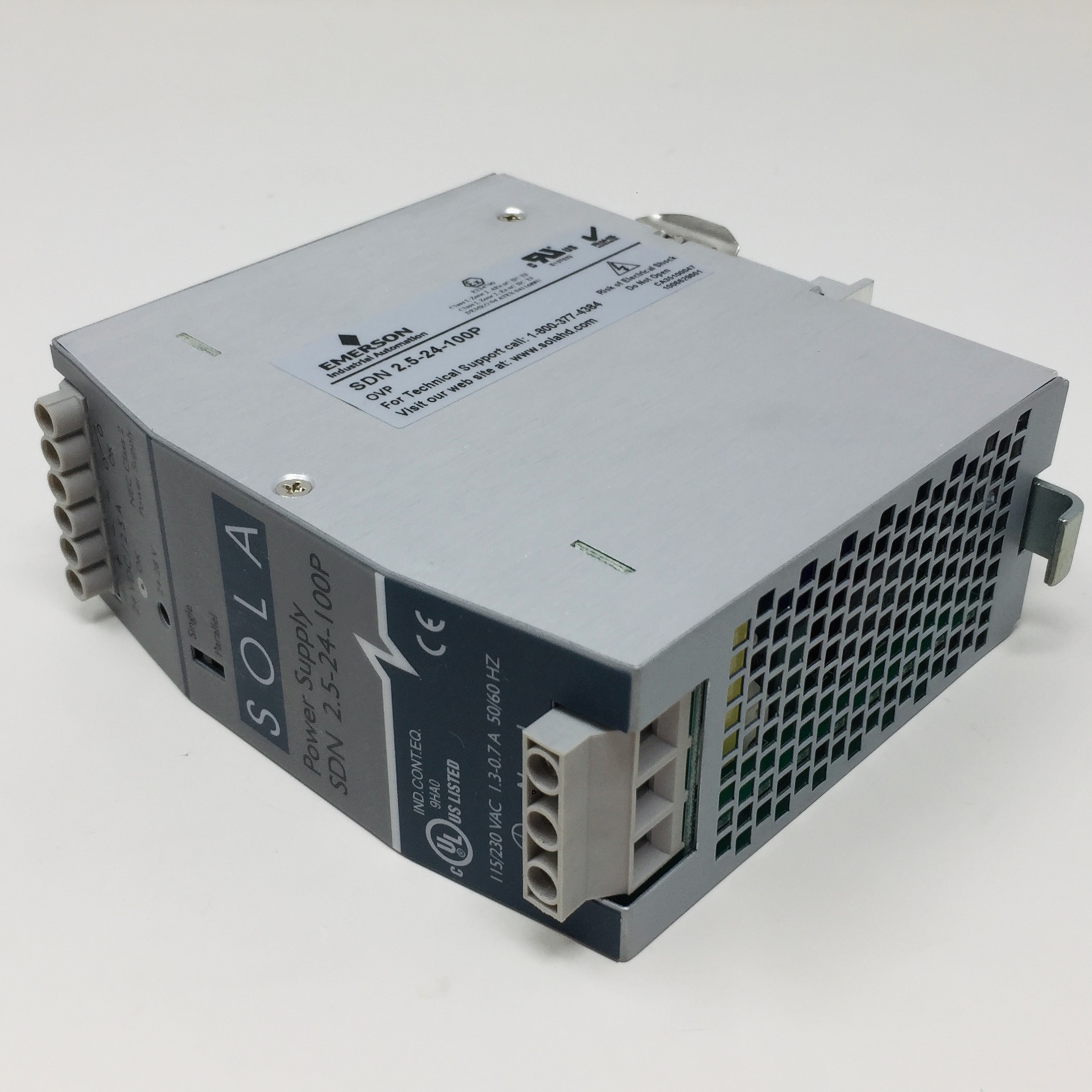

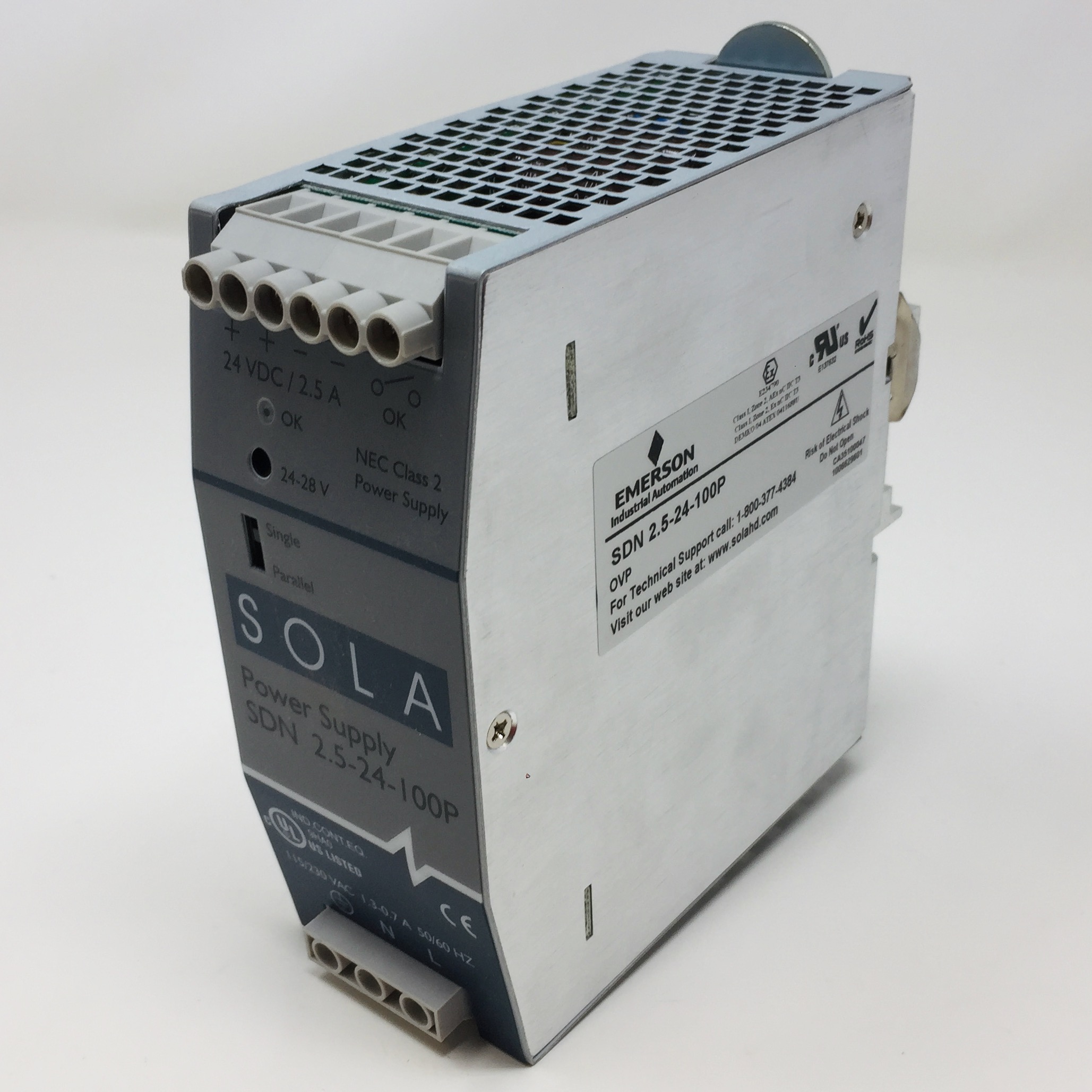

60W 24V DIN P/S 115/230V IN SOLA Part Number SDN2524100P NAED #: 78347215318
Hawk Electronics
Total Stock: 16
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Output Rating
24 VDC
Input Nominal Voltage
115/230 Vac, Auto select
Input DC Range
90 - 375 Vdc
Input AC Range
85-264 Vac
Input Inrush current max
typ. < 25 A
Input Nominal Current
1.3 / 0.7 A
NAED Number
78347215318
Input Power Factor Correction
Units Fulfill EN61000-3-2
Input Frequency
47 - 63 Hz
Input Efficiency (Losses)
> 87.5% typ. (8.6 W)
Output Nominal Voltage
24 Vdc (22.5 - 28.5 Vdc adj.)
Output Tolerance
< ±2% overall (combination Line, load, time and temperature related changes)
Output Nominal Current
2.5 A (60 W)
Output Ripple
< 50 mVpp
Output Holdup Time
> 20 ms @ full load
Output Current Limit
Fold Forward (Current rises, voltage drops to maintain constant power during overload up to max peak current)
Output Overvoltage Protection
< 33 Vdc
Warranty
5 year limited warranty
CASE QTY
20.00
Temperature Range
-10C to +60C
EMC Emissions
EN61000-6-3, -4; Class B EN55011, EN55022 Radiated and Conducted including Annex A. EN61000-3-2
General Protection/Safety
Protected against continuous short-circuit, overload, open-circuit. Protection Class 1 (IEC536), degree of protection IP20 (IEC 529) Safe low voltage: SELV (acc. EN60950)
Storage Temperature
-25C to +85C
Humidity
The relative humidity is < 90% RH, noncondensing; IEC 68-2-2, 68-2-3.
Status Indicators
Green LED and DC OK signal (N.O. Solid State Contact rated 200 mA / 60 Vdc)
Carton QTY
1.00
Output Connections
Two connectors per output, connector size range: 16-10 AWG (1.5 - 6 mm2) for solid conductors
Mounting
Simple snap-on system for DIN Rail TS35/7.5 or TS35/15 or chassis-mounted (optional screw mounting set SDN-PMBRK2 required).
Input Connections
IP20-rated screw terminals, connector size range: 16-10 AWG (1.5-6 mm2 ) for solid conductors. 16-12 AWG (0.5-4 mm2)
Case
Fully enclosed metal housing with fine ventilation grid to keep out small parts.
MTBF
> 820,000 hours
Height
5
Depth
5
Width
2
Series Attributes
Not available at this time.
