Price List
OA-190-QC
Total Stock: 130
Factory Lead Time: 14
RoHs Compliant

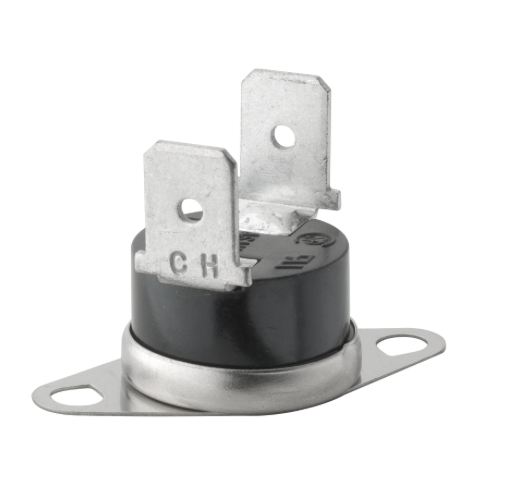

6021/2 Inch Disc Thermostat Catalog PN-602SXBVAS45190F18 Close @ 172 Open @ 190
Hawk Electronics
Total Stock: 130
Factory Lead Time: 14
RoHs Compliant
Product Attributes
Attributes for sub
602SXBVAS45190F18 (SELCO)
Series
CA/OA 1/2 Inch Automatic Reset
Life Cycle
100,000 Cycles
UL File#
E145478(S), XAPX2
Environmental Temp
-40 to 350F
CSA FILE#
LR63201
C-UL Recognized File
E145478(S), XAPX8
Contact Materials
Silver Contacts
Recommended Current
500 mAmps to 15 Amps
Electrical Rating
(125 VAC, 15 Amps), (250VAC, 10Amps)
Function
Open On Rise
Terminal Type
.250 QC Vertical
Bracket Type
Stainless Fixed Surface Mount
Terminal Orientation
45 Degree Offset
Set Point
190 Degrees
Scale Temperature
Fahrenheit
Differential
18 Degrees
Series Attributes
Dielectric Strength
1,500VAC/1 Minute
Insulation Resistance
100MOhms or More with 500VDC megger
ROHS
Compliant
UL
Yes File 12345
