Product Attributes

Attributes for sub

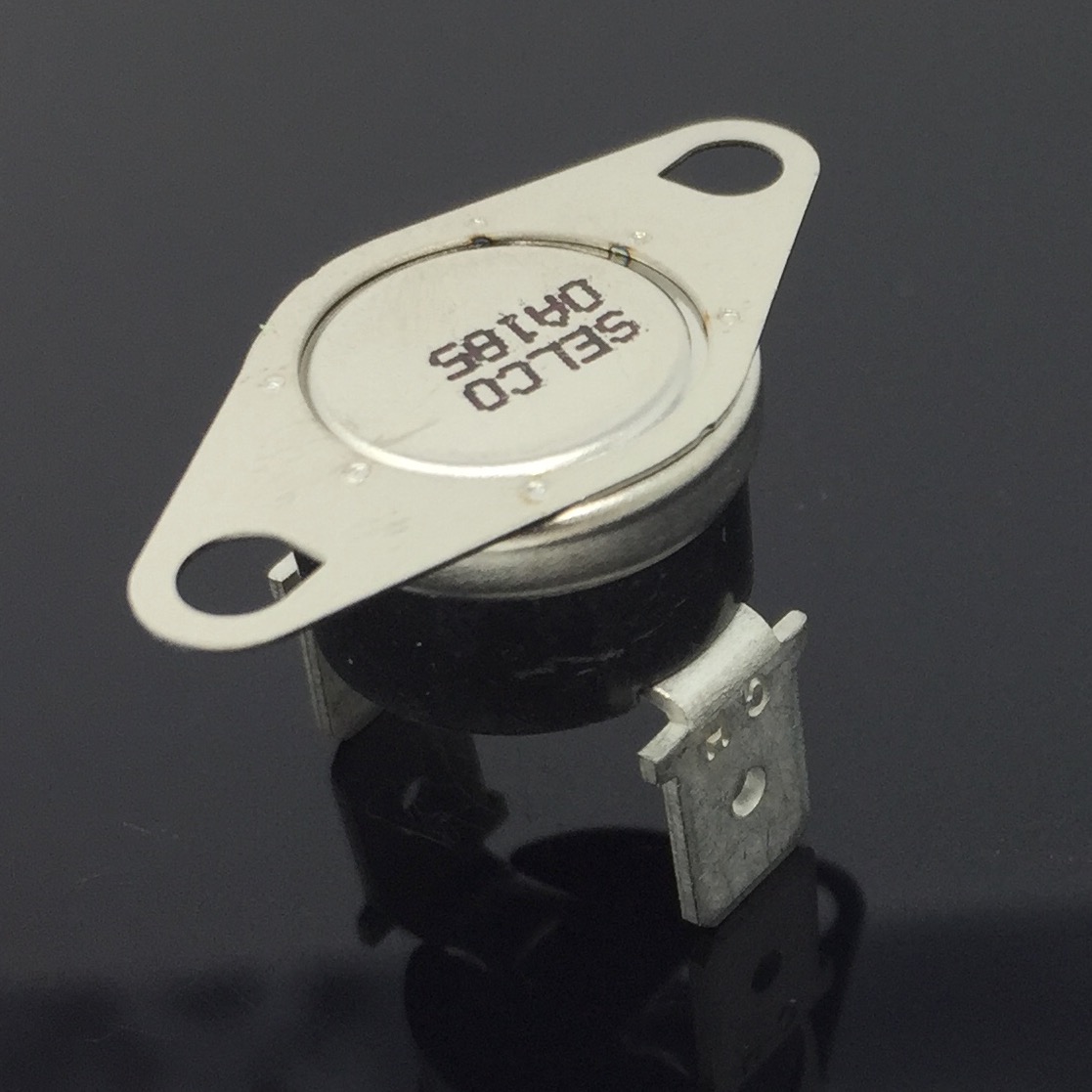

602SXBVAS90185F18 (SELCO)

Series

CA/OA 1/2 Inch Automatic Reset

Life Cycle

100,000 Cycles

UL File#

E145478(S), XAPX2

Environmental Temp

-40 to 350F

CSA FILE#

LR63201

C-UL Recognized File

E145478(S), XAPX8

Contact Materials

Silver Contacts

Recommended Current

500 mAmps to 15 Amps

Electrical Rating

(125 VAC, 15 Amps), (250VAC, 10Amps)

Function

Open On Rise

Terminal Type

.250 QC Vertical

Bracket Type

Stainless Fixed Surface Mount

Terminal Orientation

90 Degree Offset

Set Point

185 Degrees

Scale Temperature

Fahrenheit

Differential

18 Degrees

Dielectric Strength

1,500VAC/1 Minute

Insulation Resistance

100MOhms or More with 500VDC megger

ROHS

Compliant

UL

Yes File 12345
