602SYSHAS4560F20

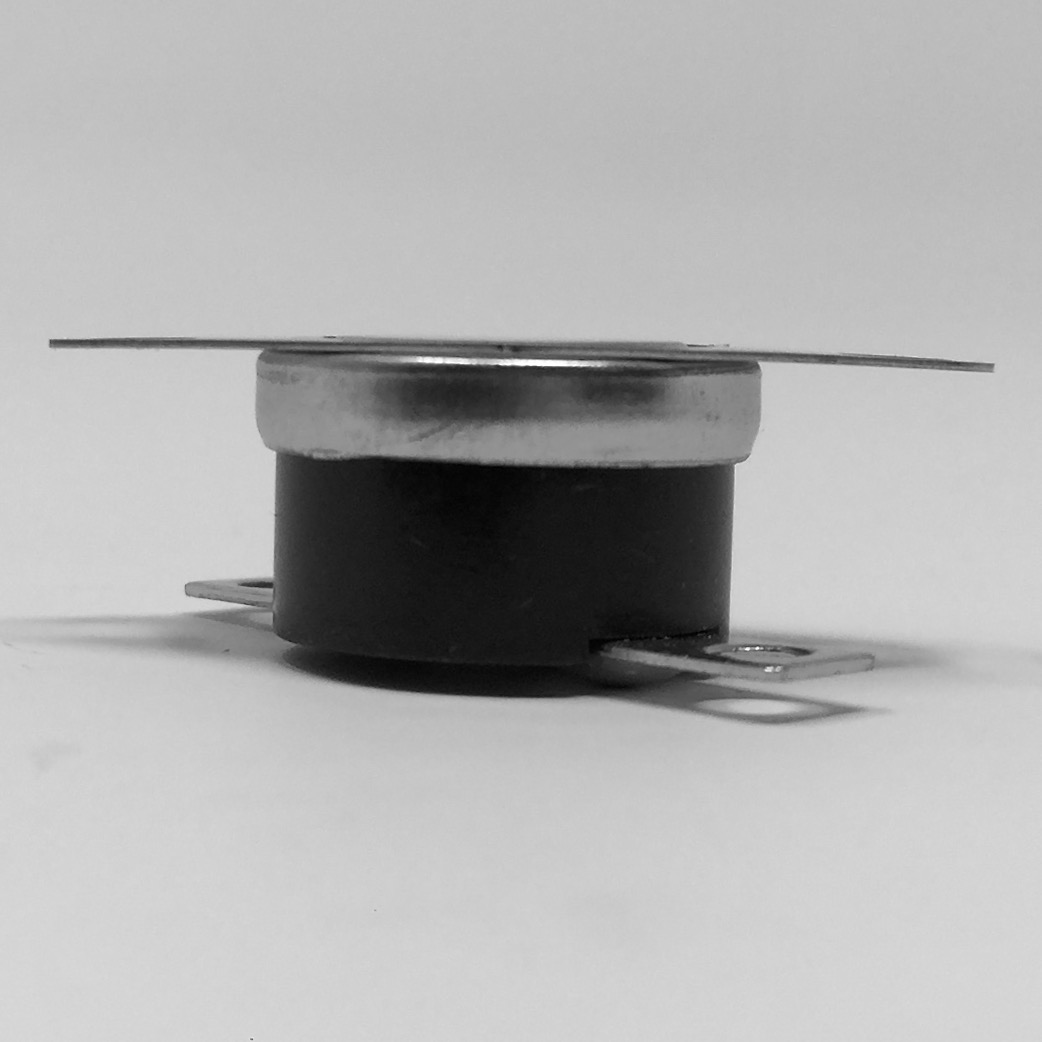

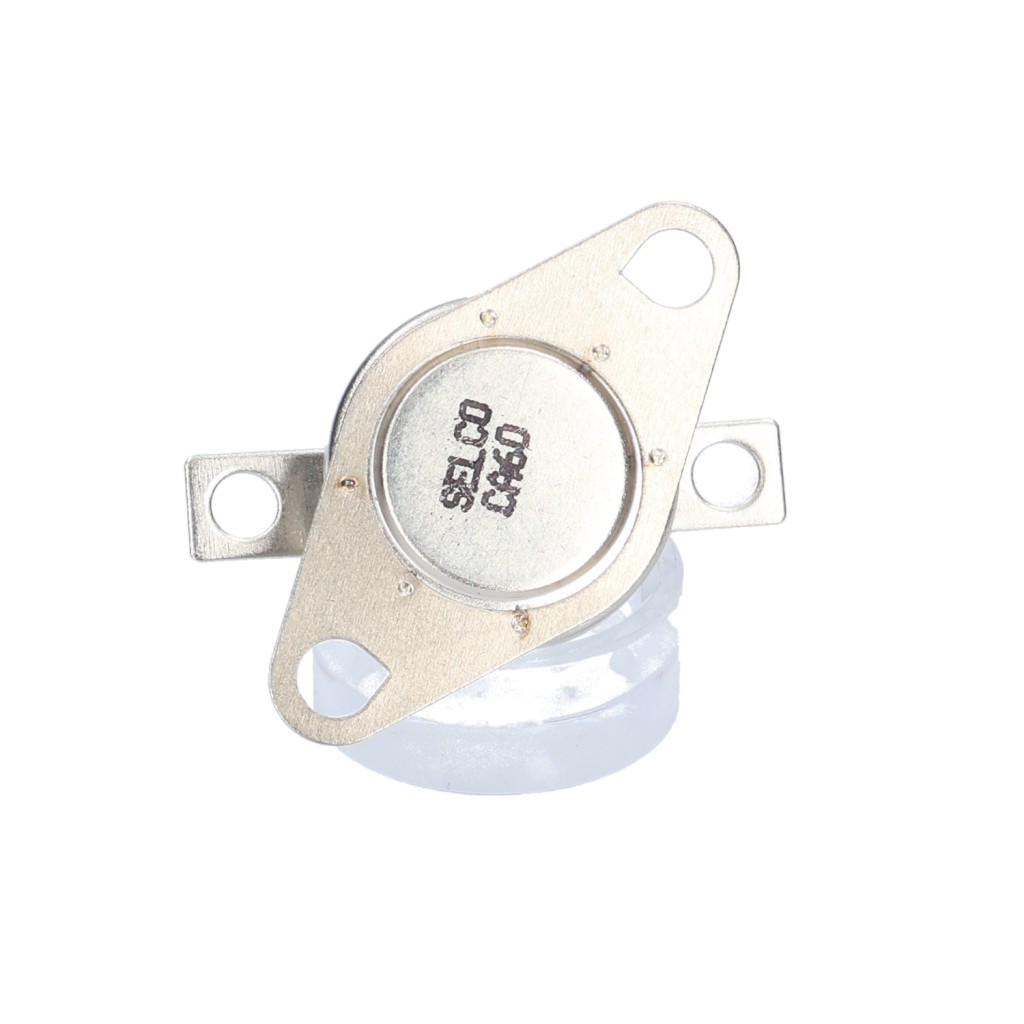

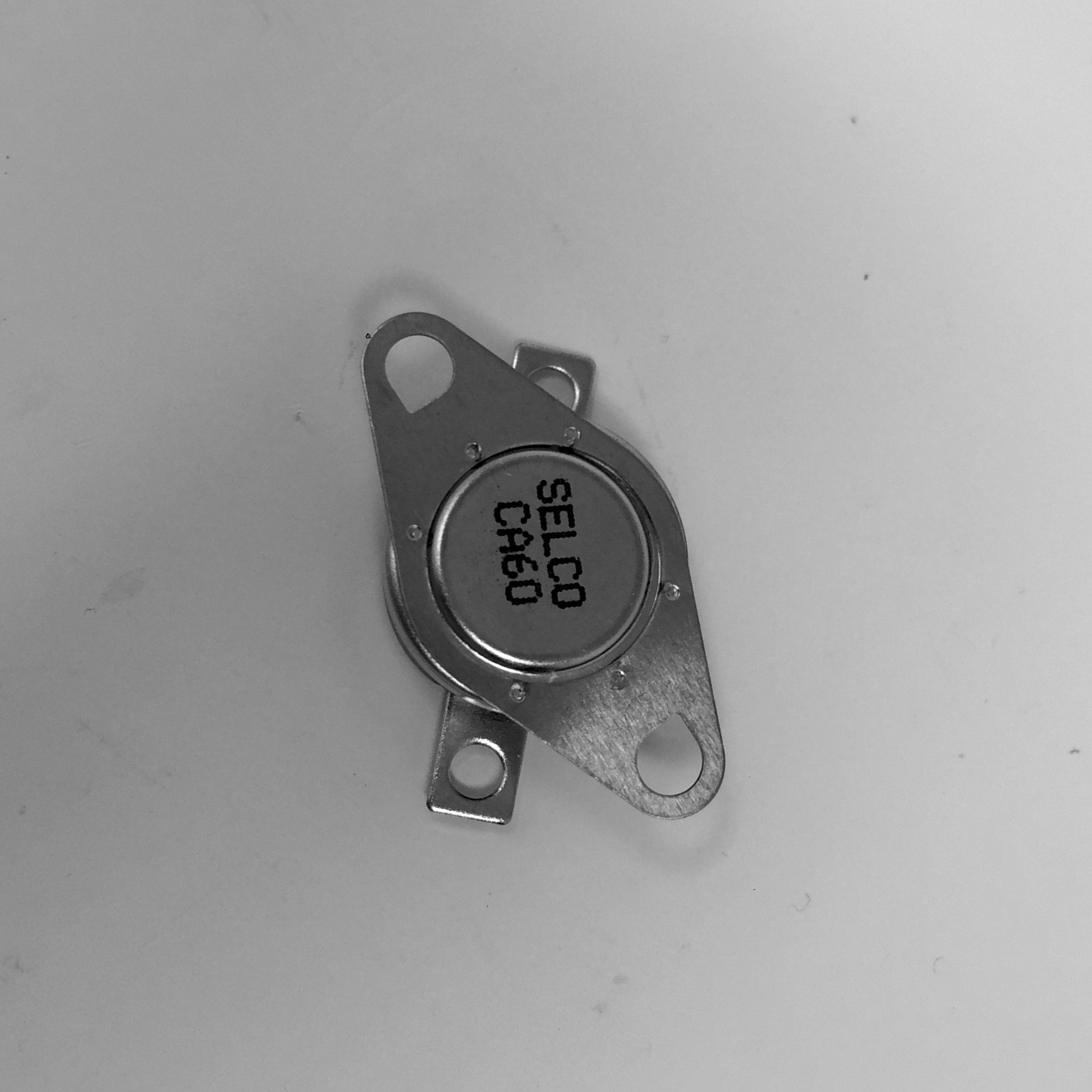

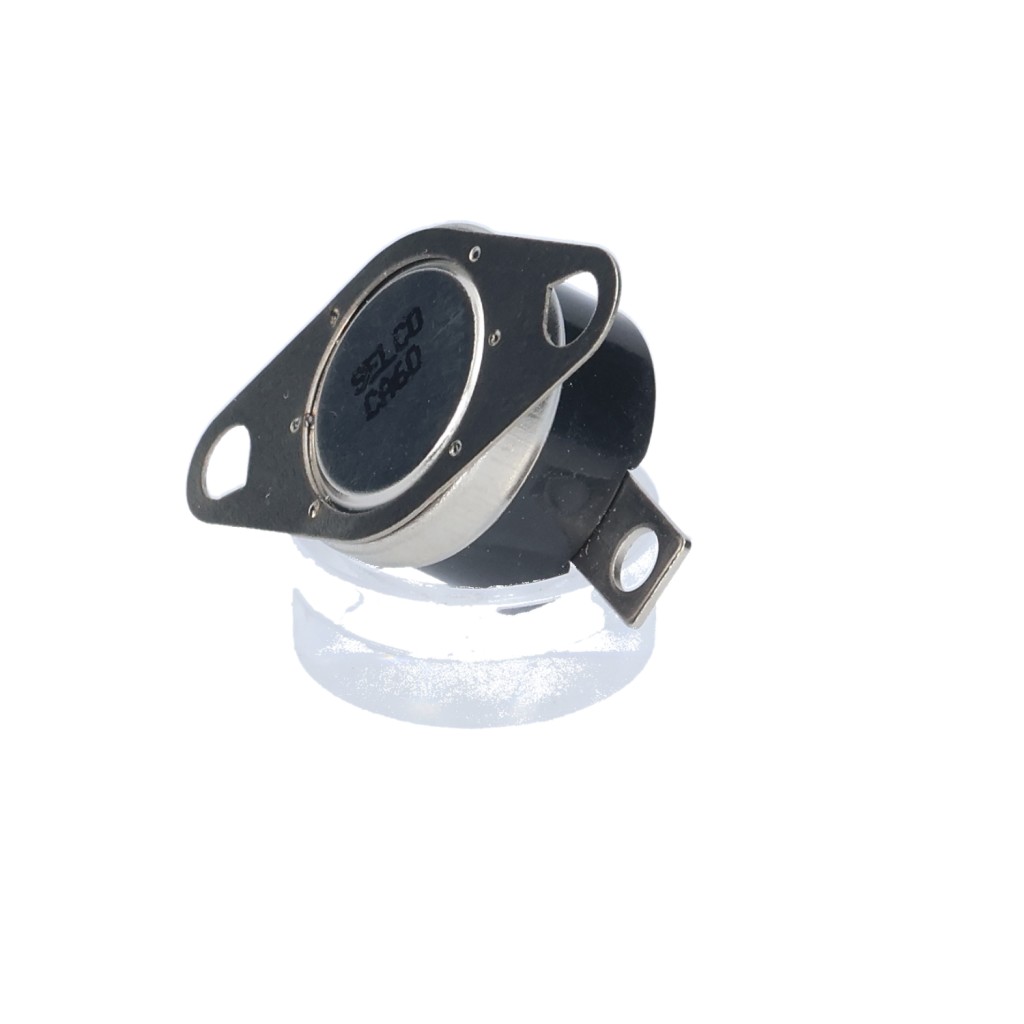

Selco | 602-OA/CA | Thermostat
green-check-icon Total Stock: 1
yellow-timer-icon Factory Lead Time: 7
onlycheckmark RoHs Compliant
602
1/2 Inch Disc Thermostat Close On Rise at 60F Open at 40F. Substitute PN CA-60

$13.89

Min: 1  Mult: 1

Product Attributes

Series

CA/OA 1/2 Inch Automatic Reset

Environmental Temp

-40 to 350F

Life Cycle

100,000 Cycles

UL File#

E145478(S), XAPX2

CSA FILE#

LR63201

C-UL Recognized File

E145478(S), XAPX8

Contact Materials

Silver Contacts

Recommended Current

500 mAmps to 15 Amps

Electrical Rating

(125 VAC, 15 Amps), (250VAC, 10Amps)

Function

Close on Rise

Terminal Type

Solder Horizontal

Bracket Type

Stainless Fixed Surface Mount

Terminal Orientation

45 Degree Offset

Set Point

60 Degrees

Scale Temperature

Fahrenheit

Differential

20 Degrees

Attributes for sub

CA-60 (SELCO)

Dielectric Strength

1,500VAC/1 Minute

Insulation Resistance

100MOhms or More with 500VDC megger

ROHS

Compliant

UL

Yes File 12345
