filter--iconPrice List

602SXSHAS45150F30

Selco | 602-OA/CA | Thermostat
green-check-icon Total Stock: 38
yellow-timer-icon Factory Lead Time: 7
onlycheckmark RoHs Compliant
602

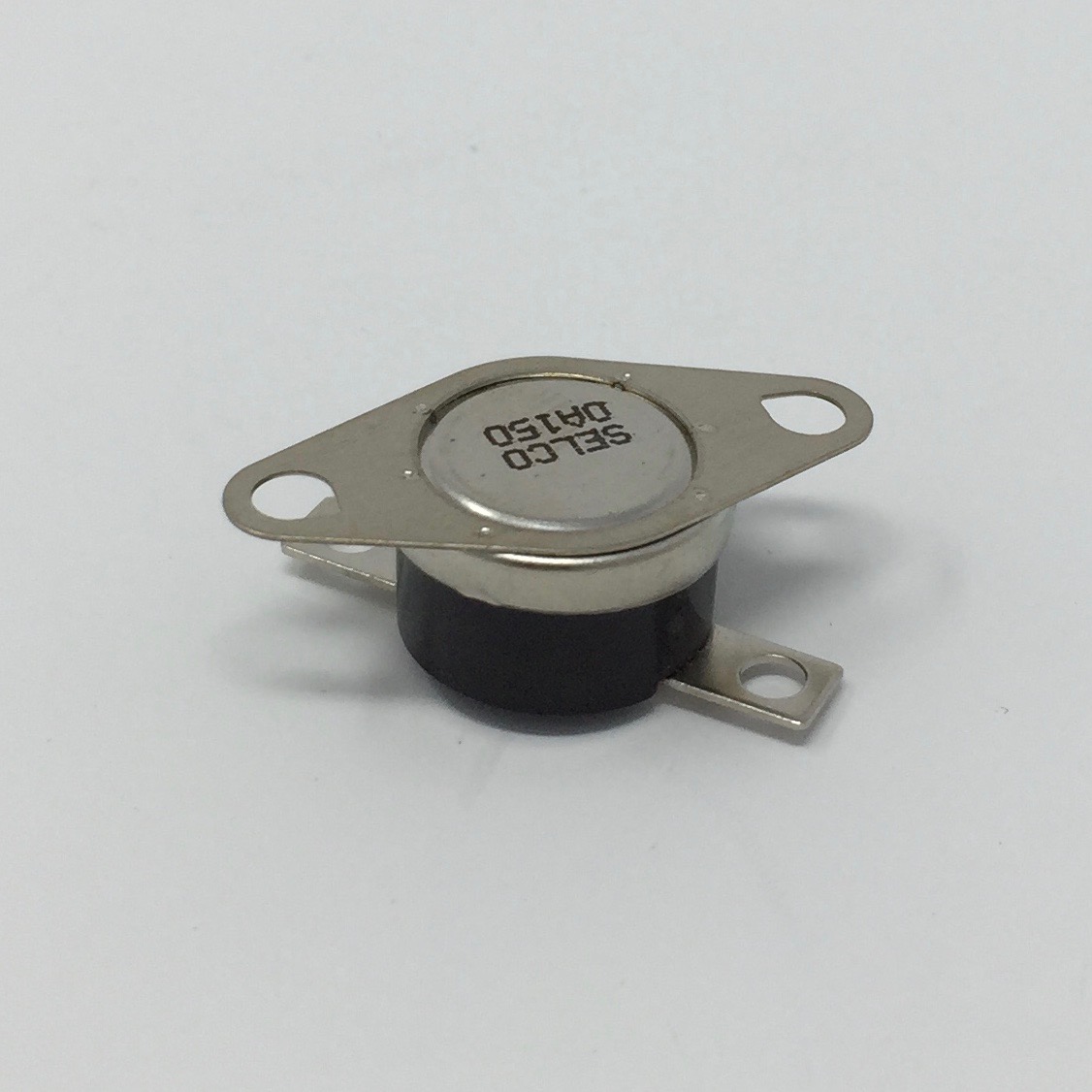

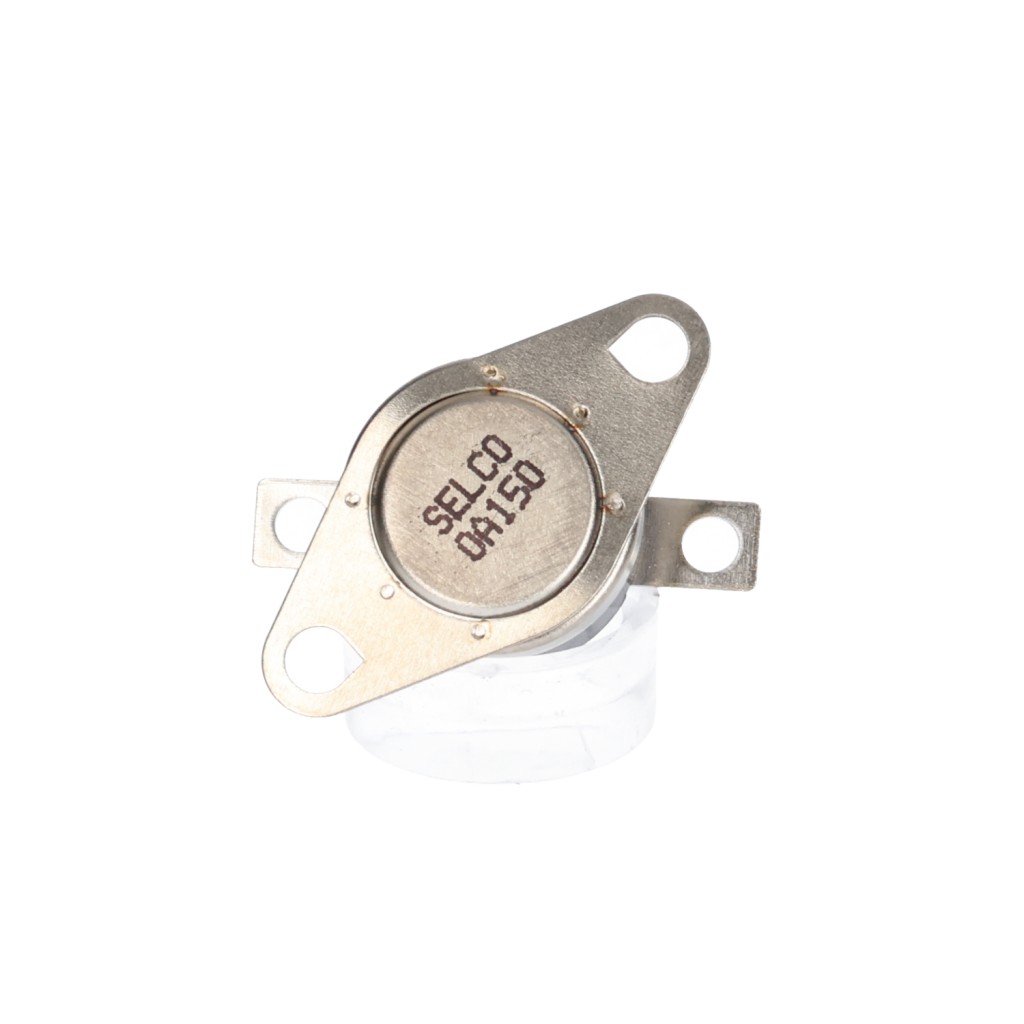

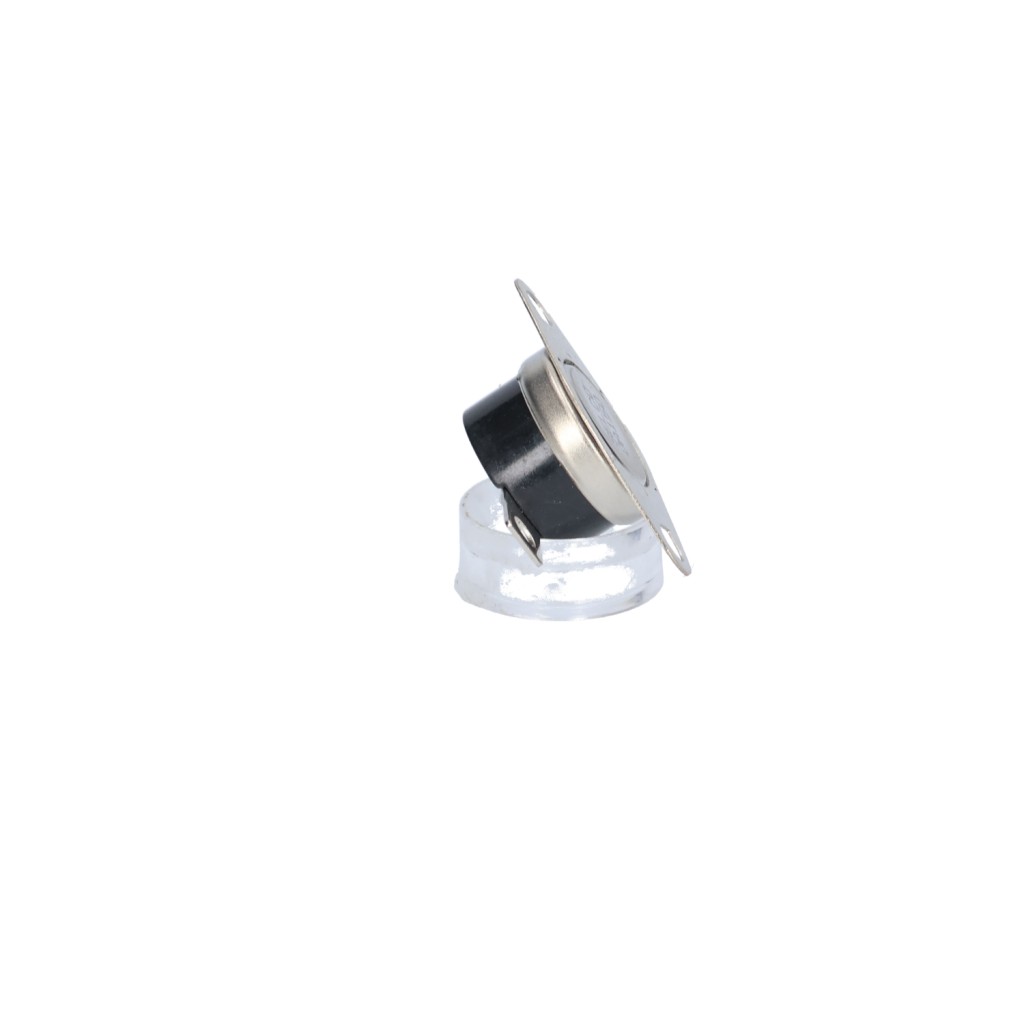

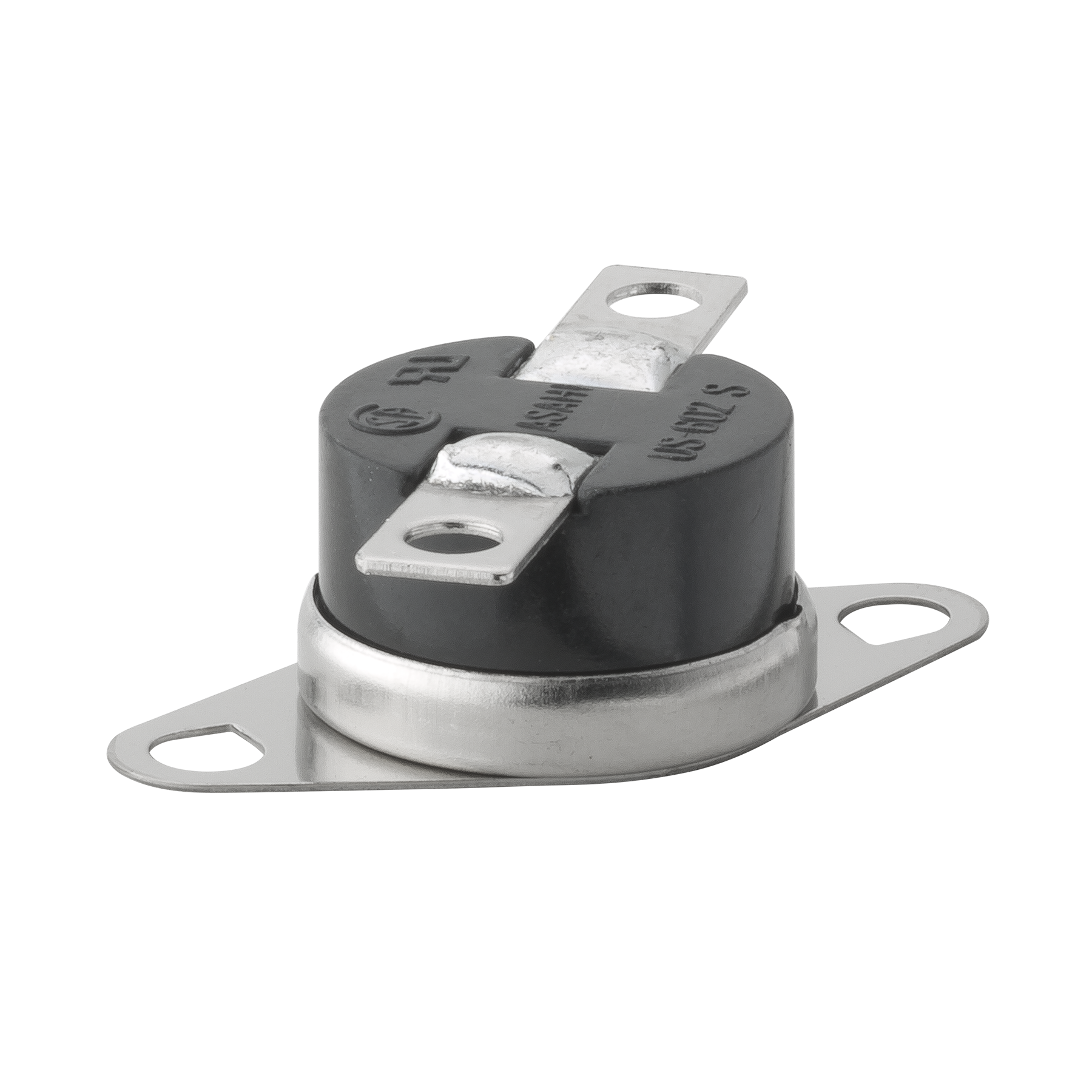

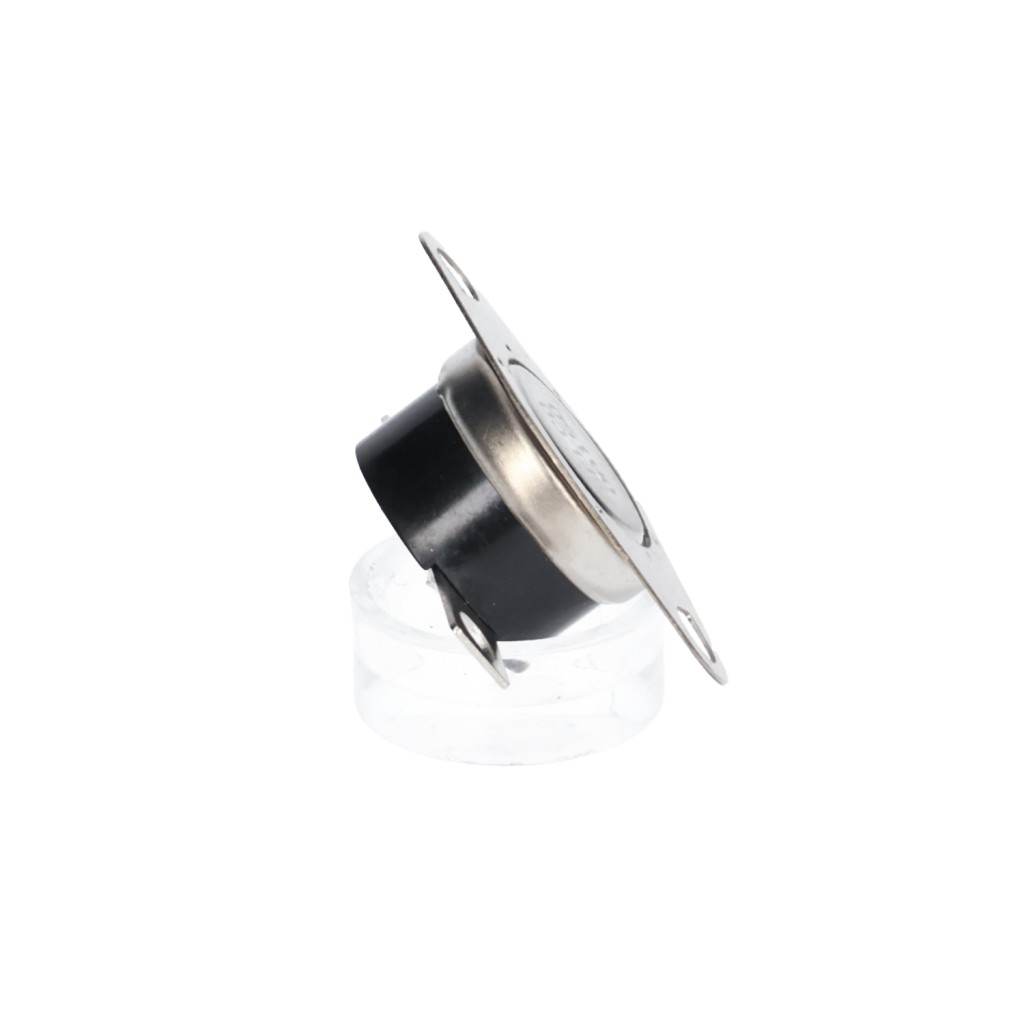

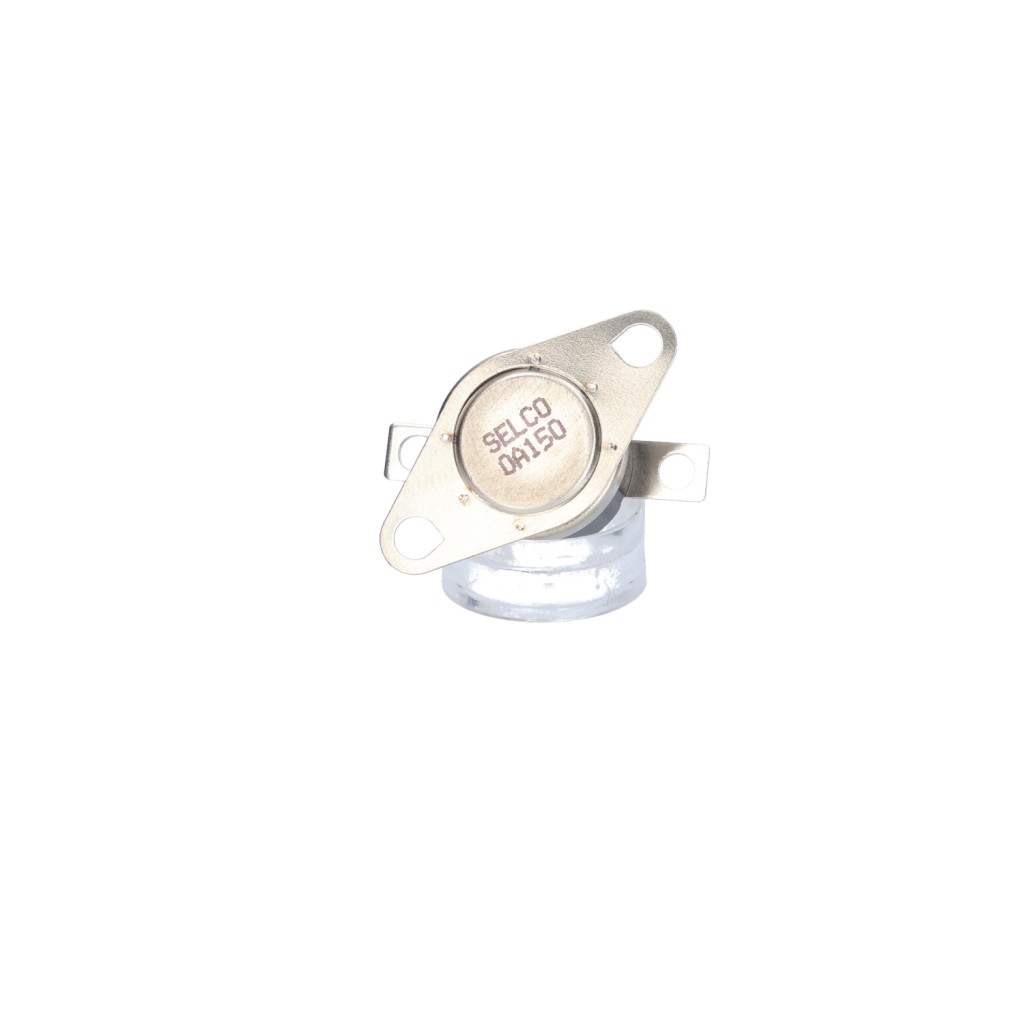

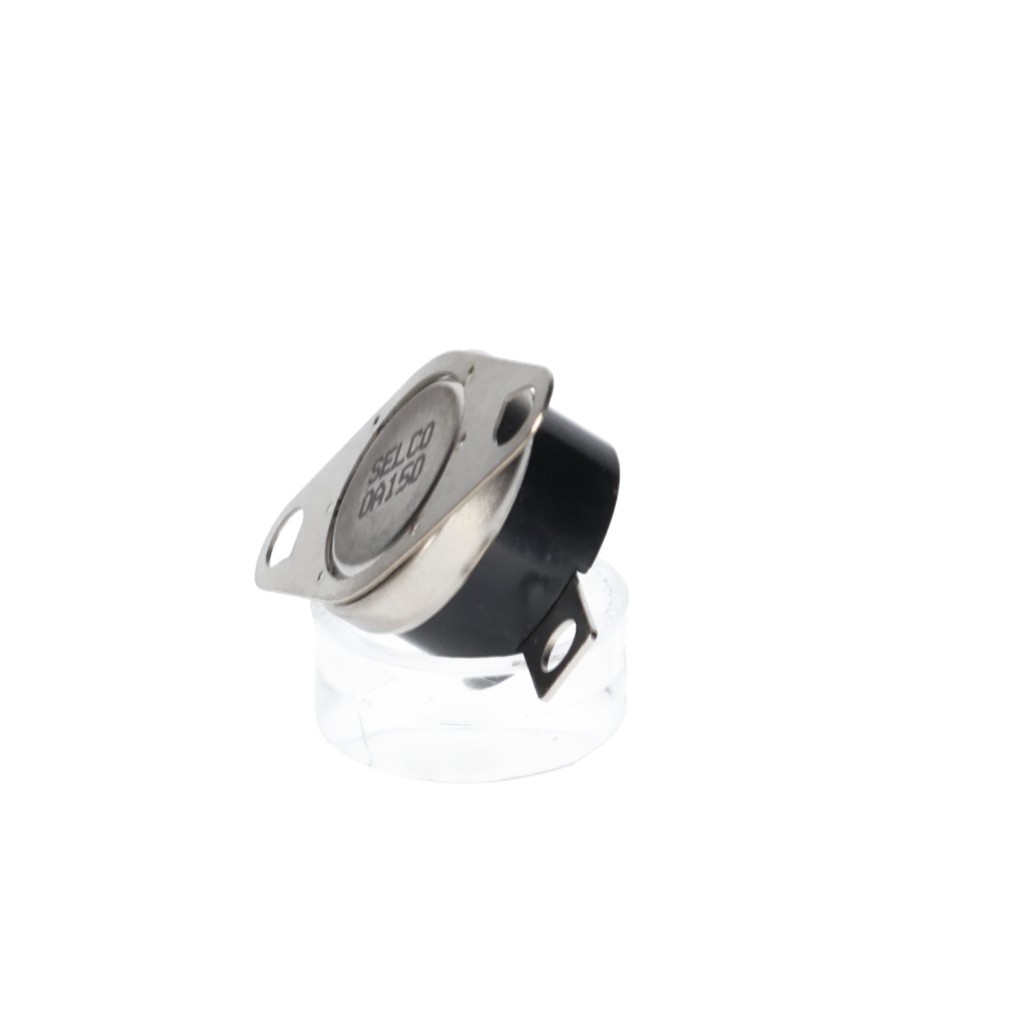

1/2 Inch Disc Thermostat Open On Rise at 150F Close at 120F. Substitute PN OA-150

$13.89

Min: 1  Mult: 1

Product Attributes

Series

CA/OA 1/2 Inch Automatic Reset

Environmental Temp

-40 to 350F

Life Cycle

100,000 Cycles

UL File#

E145478(S), XAPX2

CSA FILE#

LR63201

C-UL Recognized File

E145478(S), XAPX8

Contact Materials

Silver Contacts

Recommended Current

500 mAmps to 15 Amps

Electrical Rating

(125 VAC, 15 Amps), (250VAC, 10Amps)

Function

Open On Rise

Terminal Type

Solder Horizontal

Bracket Type

Stainless Fixed Surface Mount

Terminal Orientation

45 Degree Offset

Set Point

150 Degrees

Scale Temperature

Fahrenheit

Differential

30 Degrees

Attributes for sub

OA-150 (SELCO)

Dielectric Strength

1,500VAC/1 Minute

Insulation Resistance

100MOhms or More with 500VDC megger

ROHS

Compliant

UL

Yes File 12345
