REMKE

RF09AA-BK

REMKE | RF-BK | Non Metal Cord Grip
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

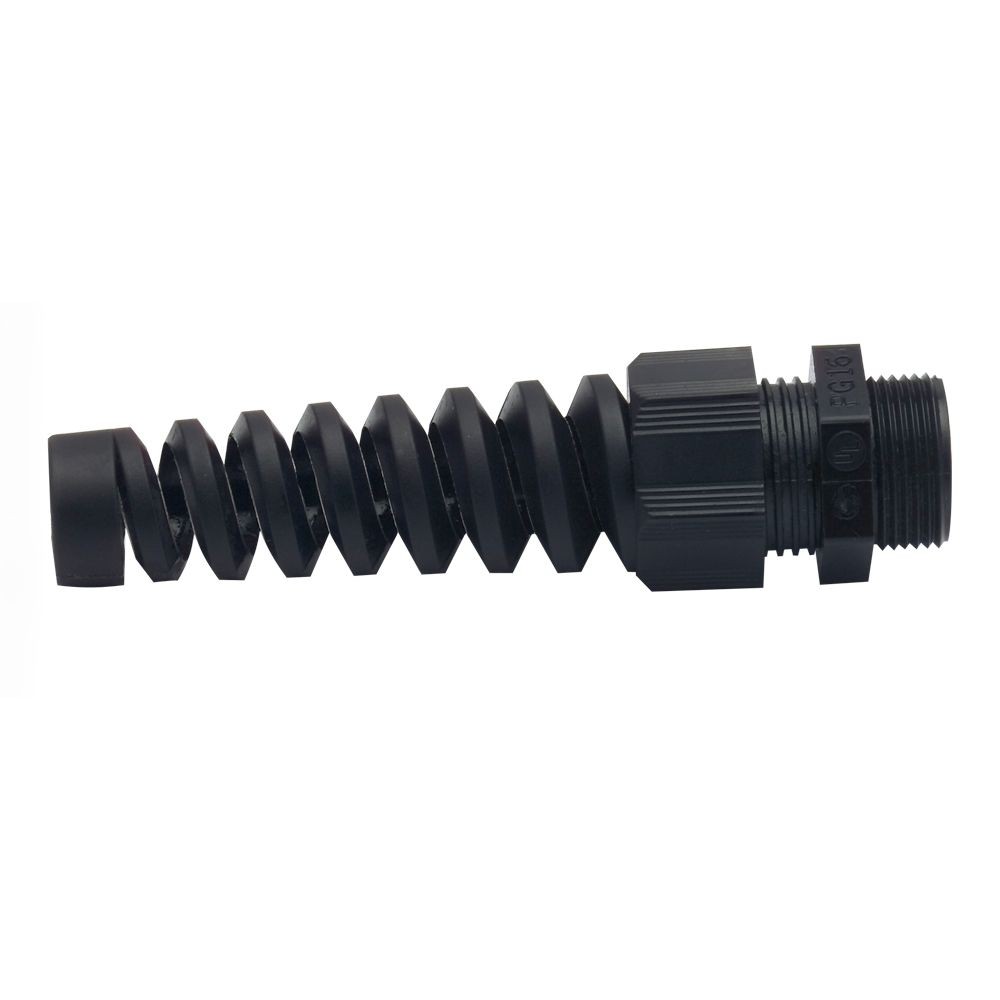

Dome Cap Spiral-Flex Cable Gland, black, Polyamide, cable range .15 - .32, PG09. Remke Part Number: RF09AA-BK UPC Code ()

$11,700.00

Min: 1  Mult: 100

Product Attributes

Thread Size

PG9

BRAND

Remke


Click Here

SPECSHEET-1

Click Here

Cable Range

.15 - .32

Photo-M1

Click Here

UL Specification

E199260

Water Pressure PSI

70

Maximum Operating Temperature C

80

Clearance Hole in

0.637

C Dimension in

0.75

Box Quantity

100

Mesh Strain Relief Available

0

Minimum Operating Temperature F

-4

NEMA Rating

6

Parent Category

Cord Grip Connectors, Remke Products

PACK QTY

100

ORing

0

PRODUCT CATEGORY

Cord Grip Connectors

PRODUCT GROUP

Cord Grips

PRODUCT NUMBER

RF09AA-BK

REACH Compliant

1

UPC

7.85412E+11

UNSPSC

39121431

TITLE

Dome Cap Spiral-Flex Cable Gland, black, Polyamide, cable range .15 - .32, PG09

Thread Type

PG

Additional Strain Relief Mesh

No

Strain Relief

1

SKU

RF09AA-BK

Product Photo

Click Here

Minimum Operating Temperature C

-20

Min Temperature (F)

-4

Min Temperature (C)

-20

IP Rating

IP68

Additional Title

Dome Cap Spiral-Flex Cable Gland, black, Polyamide, cable range .15 - .32, PG09

Has Approval

FALSE

DATE LAST UPDATED

7/13/23

CSA Standard

115116

COUNTRY OF ORIGIN

TR

Cord Grip Type

Straight

Conduit Thread Size

PG9

Competitors

7.85412E+11

Bushing Material

Neoprene

IS ACTIVE

TRUE

Is Quote Only

FALSE

Min Cable Range over Jacket in

0.15

Maximum Operating Temperature F

176

Maximum Knock Out Size in

0.637

Max Temperature (F)

176

Max Temperature (C)

80

Max Cable Range over Jacket in

0.32

Material

Polyamide

MANUFACTURER

NSI Industries

Locknut

0

PRODUCT LINE

Strain Relief Connectors and Grips

Bushing Holes

1

Select Color

Black

RF EMI Protection

0

VDE Compliant

1

REMKE Categories

Cord Grip Strain Relief Connectors>Dome Cap Cable Glands,Cord Grip Strain Relief Connectors>Non Metallic Cord Grips
