RD09AR-GY
Factory Lead Time: TBD
RoHs Compliant

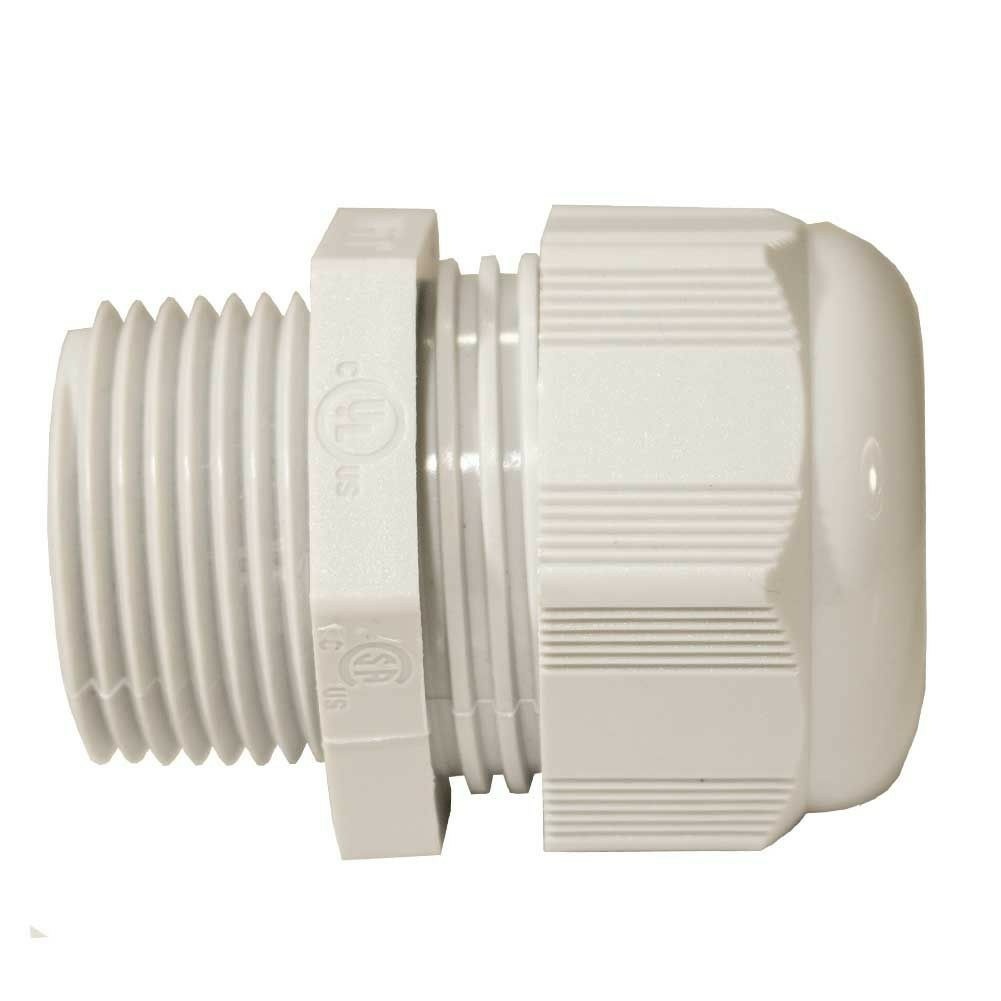

Dome Cap Cable Gland, gray, Polyamide, PG09, cable range .07 - .24. Remke Part Number: RD09AR-GY UPC Code ()
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
Thread Size
PG9
SPECSHEET-1
BRAND
Remke
Photo-1
Cable Range
.07 - .24
UL Specification
E199260
Photo-M1
Water Pressure PSI
70
SPECSHEET-2
Maximum Operating Temperature C
80
Clearance Hole in
0.637
Box Quantity
50
Mesh Strain Relief Available
0
C Dimension in
0.75
NEMA Rating
6
Parent Category
Cord Grip Connectors, Remke Products
PACK QTY
50
Max Cable Range over Jacket in
0.24
Minimum Operating Temperature F
-4
ORing
0
PRODUCT CATEGORY
Cord Grip Connectors
Product Photo
UPC
7.85412E+11
UNSPSC
39121431
TITLE
Dome Cap Cable Gland, gray, Polyamide, PG09, cable range .07 - .24
Thread Type
PG
Strain Relief
0
SKU
RD09AR-GY
REACH Compliant
1
PRODUCT NUMBER
RD09AR-GY
PRODUCT GROUP
Cord Grips
Minimum Operating Temperature C
-20
Min Temperature (F)
-4
Min Temperature (C)
-20
Additional Title
Dome Cap Cable Gland, gray, Polyamide, PG09, cable range .07 - .24
Documents
DATE LAST UPDATED
7/13/23
CSA Standard
115116
COUNTRY OF ORIGIN
TR
Cord Grip Type
Straight
Conduit Thread Size
PG9
Competitors
7.85412E+11
Additional Strain Relief Mesh
No
Bushing Material
Neoprene
Has Approval
FALSE
Inside Body Diameter Body Bore
0.389
Material
Polyamide
Max Temperature (F)
176
Max Temperature (C)
80
Maximum Operating Temperature F
176
Locknut
0
Is Quote Only
FALSE
IS ACTIVE
TRUE
Min Cable Range over Jacket in
0.07
IP Rating
IP68
Maximum Knock Out Size in
0.637
Documents 2
Bushing Holes
1
PRODUCT LINE
Strain Relief Connectors and Grips
Select Color
Gray
RF EMI Protection
0
VDE Compliant
1
REMKE Categories
Cord Grip Strain Relief Connectors>Dome Cap Cable Glands,Cord Grip Strain Relief Connectors>Non Metallic Cord Grips
Series Attributes
Not available at this time.
