Price List
WH-1
Factory Lead Time: TBD
RoHs Compliant

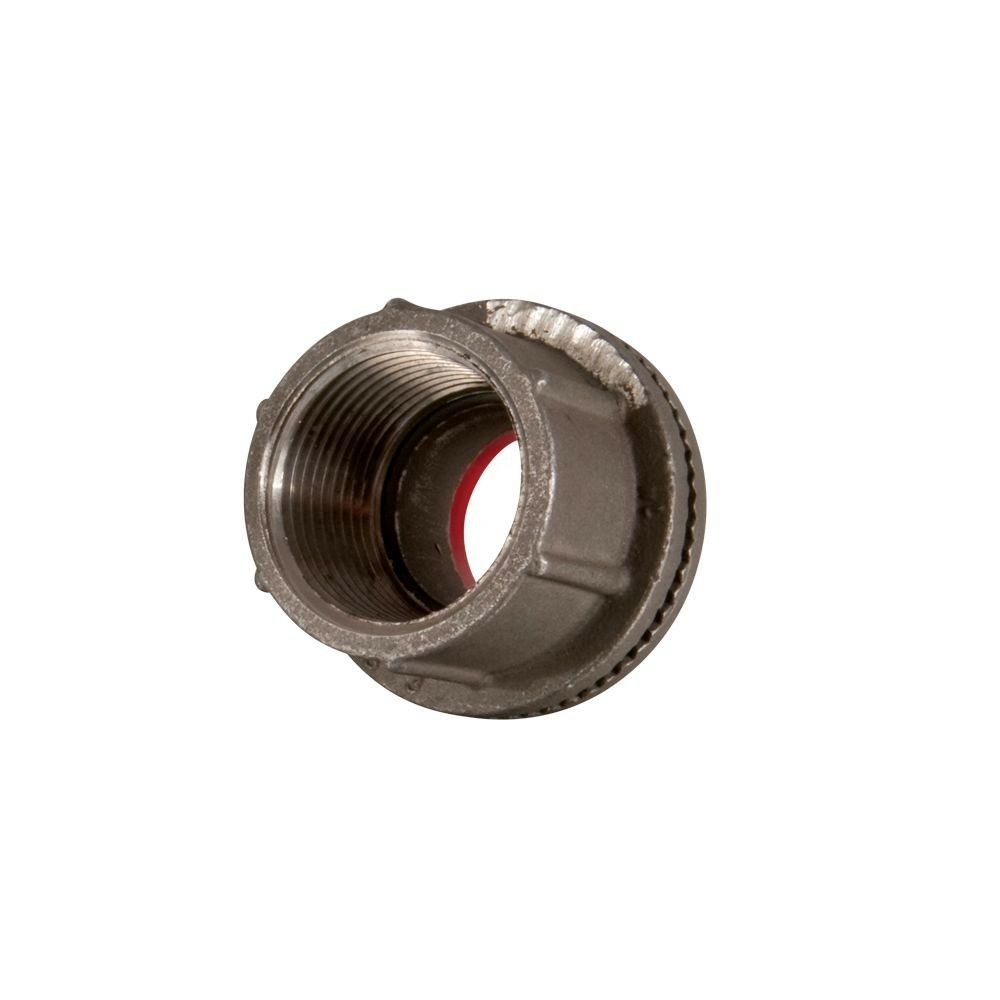

Watertight Conduit Hub, die cast zinc, 1/2" NPT. Remke Part Number: WH-1 UPC Code (785411312019)
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
SPECSHEET-1
Photo-1
Thread Size
1/2"
Thread Type
NPT
BRAND
Remke
UL Specification
E52002
Material
Die-Cast Zinc
Photo-M1
Maximum Operating Temperature C
121
Mesh Strain Relief Available
0
Box Quantity
25
Clearance Hole in
0.906
Plating Color
Natural
Maximum Operating Temperature F
250
PRODUCT CATEGORY
Rigid Conduit Fittings
Plating Type
Zinc
PRODUCT GROUP
Conduit Fittings
PRODUCT LINE
Rigid Connectors
Product Photo
REACH Compliant
1
UPC
785411312019
Search Description
CONDUIT HUB (Watertight) 1/2"
SKU
WH-1
Strain Relief
0
UNSPSC
39131707
Parent Category
Remke Products, Rigid Connectors
Additional Strain Relief Mesh
No
Competitors
151-DC,CH-50,H050,HUB-50,ST-1,785411312019
Hazardous Class Division
Class 1, Div 2
DATE LAST UPDATED
7/13/23
Flammability Rating
UL 94V-2
GTIN
785411312019
Has Approval
FALSE
Inside Body Diameter Body Bore
0.552
IS ACTIVE
TRUE
Is Quote Only
FALSE
ORing Material
Buna N
ORing
1
NEMA Rating
4
Minimum Operating Temperature F
-40
Minimum Operating Temperature C
-40
Maximum Knock Out Size in
0.906
Locknut
0
CSA Standard
28985
RF EMI Protection
0
REMKE Categories
Cord Grip Strain Relief Connectors>Watertight Conduit Hubs for IMC & RMC
Series Attributes
Not available at this time.
