Price List
E04S0010P24
Factory Lead Time: TBD
RoHs Compliant
M12 Etherlink Receptacle, Female, 4 pole, 1', 24 AWG. Remke Part Number: E04S0010P24 UPC Code (785411038353)
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
BRAND
Remke
SPECSHEET-1
PRODUCT LENGTH (IN)
0.93
Maximum Operating Temperature C
75
Receptacle Lead Length
1
RFEMI Protection
No
Receptacle Lead Jacket Material
PVC
Receptacle Configuration
Female Straight
REACH Compliant
1

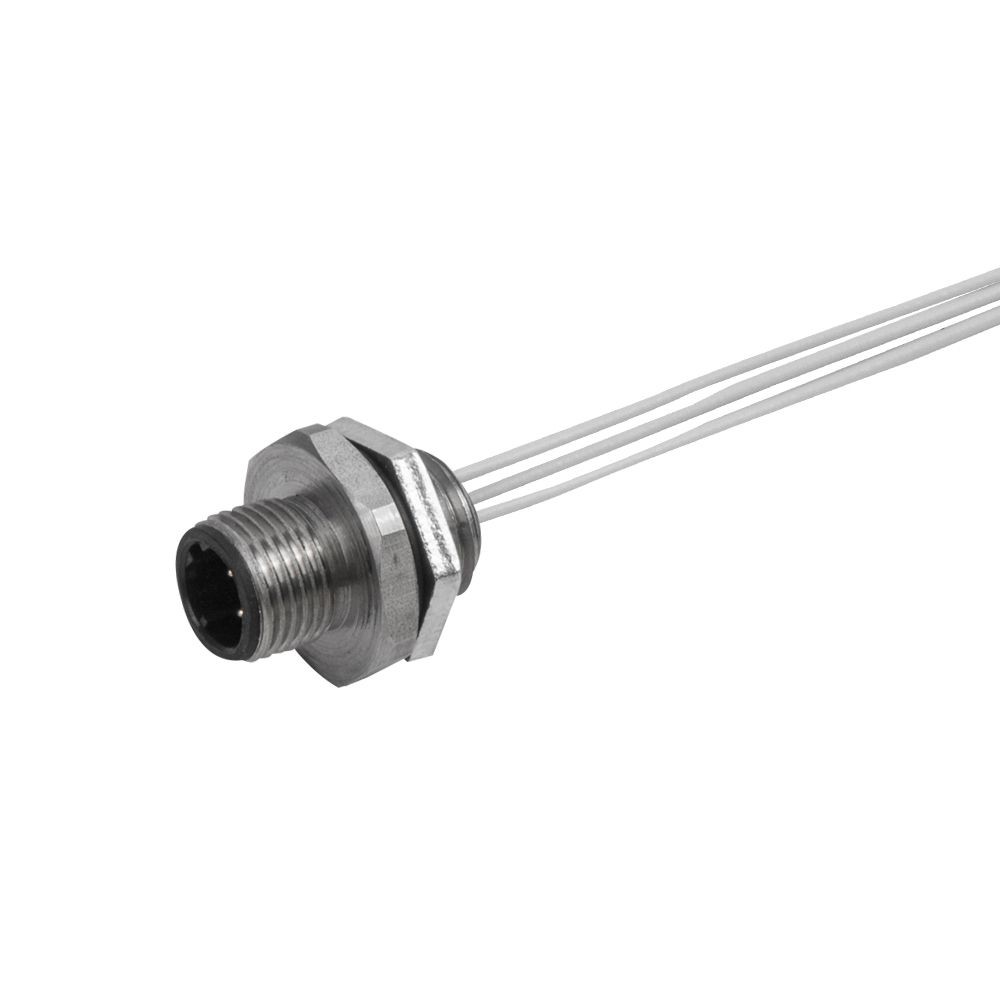

Product Photo
PRODUCT NUMBER
E04S0010P24
PRODUCT LINE
Ethernet Connectors
PRODUCT GROUP
Industrial Power Cordsets
PRODUCT CATEGORY
Molded Connectors and Cordsets
Pin Count (Number of Poles)
4
RoHS Compliant
TRUE
Shell Material
Machined Aluminum
Shell Plating
Black Anodized
Wire Gauge
AWGÂ 24.00
WARRANTY
1 Year
Voltage Rating DC
125
Voltage Rating AC
125
Voltage Rating (DC)
125
Voltage Rating (AC)
125
UPC
785411038353
UNSPSC
32151905
TITLE
M12 Etherlink Receptacle, Female, 4 pole, 1', 24 AWG
Thread 2
1/2-14 NPT
Thread 1
M12X1
SKU
E04S0010P24
Shielding Braiding
0
Wiring Color Code
Ethernet
Parent Category
Remke Products, Ethernet Connectors
ORing Material
Nitrile Rubber
Length in
0.93
Is Quote Only
FALSE
IS ACTIVE
TRUE
IP Rating
IP67
Insert Material
Nylon
Included O-Ring
Yes
Included Locknut
Yes
Has Approval
FALSE
GTIN
785411038353
DATE LAST UPDATED
3/20/24
Current Rating (AMPS)
4
COUNTRY OF ORIGIN
US
Competitors
7.85411E+11
Additional Title
M12 Etherlink Receptacle, Female, 4 pole, 1', 24 AWG
Locknut
1
Locknut Material
Steel
ORing
1
NEMA Rating
6P
Minimum Operating Temperature F
-4
Minimum Operating Temperature C
-20
Min Temperature (F)
-4
Min Temperature (C)
-20
Maximum Operating Temperature F
167
Max Temperature (F)
167
Max Temperature (C)
75
Mating Thread Size 2
1/2-14 NPT
Mating Thread Size 1
M12X1
MANUFACTURER
NSI Industries
Additional Strain Relief Mesh
No
Current Rating amps
4
REMKE Categories
Industrial Molded Connectors>RJ45 & M12 Ethernet Cable Connectors
RF EMI Protection
0
Series Attributes
Not available at this time.
