Price List
E04R0010P24
Factory Lead Time: TBD
RoHs Compliant

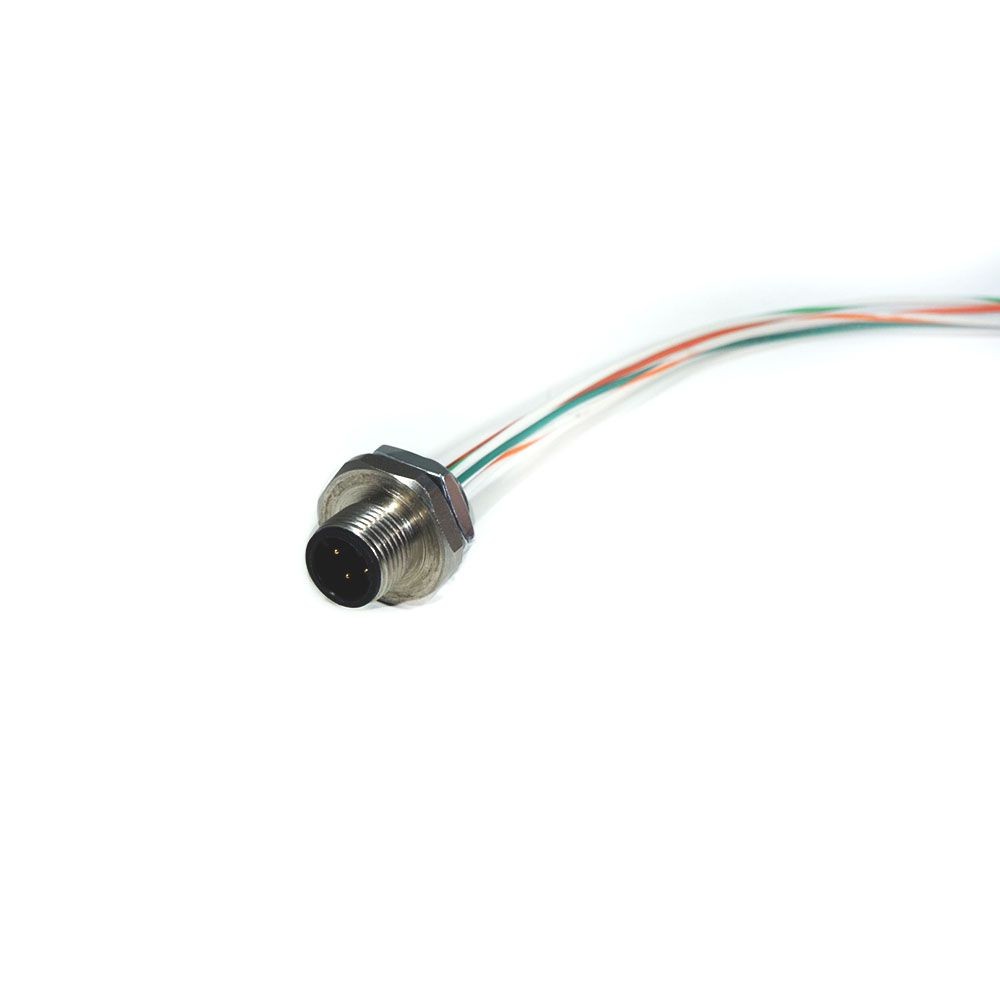

M12 Etherlink Receptacle, Male, 4 pole, 1', 24 AWG. Remke Part Number: E04R0010P24 UPC Code (785411038346)
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
BRAND
Remke
SPECSHEET-1
Photo-M1
PRODUCT LENGTH (IN)
0.765
Maximum Operating Temperature C
75
Receptacle Lead Jacket Material
PVC
Receptacle Lead Length
1
Receptacle Configuration
Male Straight
RFEMI Protection
No
REACH Compliant
1
Product Photo
PRODUCT NUMBER
E04R0010P24
PRODUCT LINE
Ethernet Connectors
PRODUCT GROUP
Industrial Power Cordsets
PRODUCT CATEGORY
Molded Connectors and Cordsets
Pin Count (Number of Poles)
4
RoHS Compliant
TRUE
Shell Material
Machined Aluminum
Wire Gauge
AWGÂ 24.00
WARRANTY
1 Year
Voltage Rating DC
125
Voltage Rating AC
125
Voltage Rating (DC)
125
Voltage Rating (AC)
125
UPC
785411038346
UNSPSC
32151902
TITLE
M12 Etherlink Receptacle, Male, 4 pole, 1', 24 AWG
Thread 2
1/2-14 NPT
Thread 1
M12X1
SKU
E04R0010P24
Shielding Braiding
0
Shell Plating
Black Anodized
Wiring Color Code
Ethernet
Min Temperature (C)
-20
Parent Category
Remke Products, Ethernet Connectors
Length in
0.765
Is Quote Only
FALSE
IS ACTIVE
TRUE
IP Rating
IP67
Insert Material
Nylon
Included O-Ring
Yes
Included Locknut
Yes
Has Approval
FALSE
GTIN
785411038346
DATE LAST UPDATED
3/20/24
Current Rating (AMPS)
4
COUNTRY OF ORIGIN
US
Competitors
7.85411E+11
Additional Title
M12 Etherlink Receptacle, Male, 4 pole, 1', 24 AWG
Locknut
1
Locknut Material
Steel
ORing Material
Nitrile Rubber
ORing
1
NEMA Rating
6P
Minimum Operating Temperature F
-4
Minimum Operating Temperature C
-20
Min Temperature (F)
-4
Maximum Operating Temperature F
167
Max Temperature (F)
167
Max Temperature (C)
75
Mating Thread Size 2
1/2-14 NPT
Mating Thread Size 1
M12X1
MANUFACTURER
NSI Industries
Additional Strain Relief Mesh
No
Current Rating amps
4
REMKE Categories
Industrial Molded Connectors>RJ45 & M12 Ethernet Cable Connectors
RF EMI Protection
0
Series Attributes
Not available at this time.
