REMKE

E04KM0164BA5

REMKE | E04KM-BA5 | Molded Circular
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

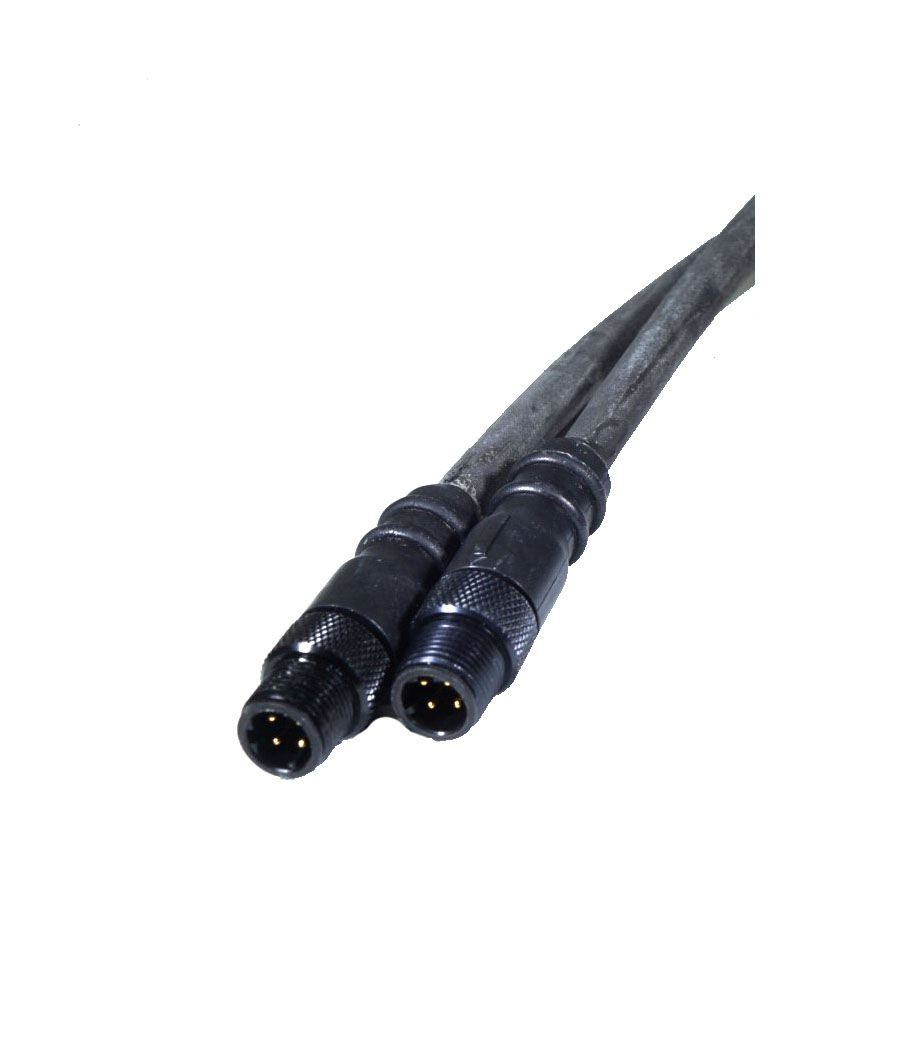

M12 Etherlink Connector, Cable Assembly, Male/Male, 16.4'. Remke Part Number: E04KM0164BA5 UPC Code (785411038988)

$98.60

Min: 1  Mult: 1

Product Attributes

SPECSHEET-1

Click Here

BRAND

Remke


Click Here

PRODUCT LENGTH (IN)

2.02

Photo-M1

Click Here

PRODUCT WIDTH (IN)

0.57

Maximum Operating Temperature C

75

Cord set Configuration

Straight/Straight

PRODUCT WIDTH (IN) 2

0.57

Wiring Color Code

Ethernet

REACH Compliant

1

Product Photo

Click Here

PRODUCT NUMBER

E04KM0164BA5

PRODUCT LINE

Ethernet Connectors

PRODUCT GROUP

Industrial Power Cordsets

PRODUCT CATEGORY

Molded Connectors and Cordsets

Pin Count (Number of Poles)

4

Parent Category

Remke Products, Ethernet Connectors

RFEMI Protection

No

RoHS Compliant

TRUE

Shielding Braiding

0

Wire Gauge

AWG 24.00

Width in 2

0.57

Width in

0.57

WARRANTY

1 Year

Voltage Rating DC

125

Voltage Rating AC

125

Voltage Rating (DC)

125

Voltage Rating (AC)

125

UPC

785411038988

UNSPSC

32151904

TITLE

M12 Etherlink Connector, Cable Assembly, Male/Male, 16.4'

Thread 2

M12X1

Thread 1

M12X1

SKU

E04KM0164BA5

ORing Material

Nitrile Rubber

ORing

1

NEMA Rating

6P

IS ACTIVE

TRUE

IP Rating

IP67

Insert Material

Nylon

Included O-Ring

Yes

Included Locknut

No

Has Approval

FALSE

GTIN

785411038988

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

4

Coupling Nut Plating

Black Anodized

Coupling Nut Material

Aluminum

COUNTRY OF ORIGIN

US

Cordset Configuration

Straight/Straight

Competitors

7.85411E+11

Additional Title

M12 Etherlink Connector, Cable Assembly, Male/Male, 16.4'

Is Quote Only

FALSE

Length in

2.02

Minimum Operating Temperature F

-4

Minimum Operating Temperature C

-20

Min Temperature (F)

-4

Min Temperature (C)

-20

Maximum Operating Temperature F

167

Max Temperature (F)

167

Max Temperature (C)

75

Additional Strain Relief Mesh

No

Mating Thread Size 2

M12X1

Mating Thread Size 1

M12X1

Material

PVC

MANUFACTURER

NSI Industries

Locknut

0

Length in 2

1.85

Current Rating amps

4

REMKE Categories

Industrial Molded Connectors>RJ45 & M12 Ethernet Cable Connectors

RF EMI Protection

0
