REMKE

E04C0066BA5

REMKE | E04C-BA5 | Molded Circular
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

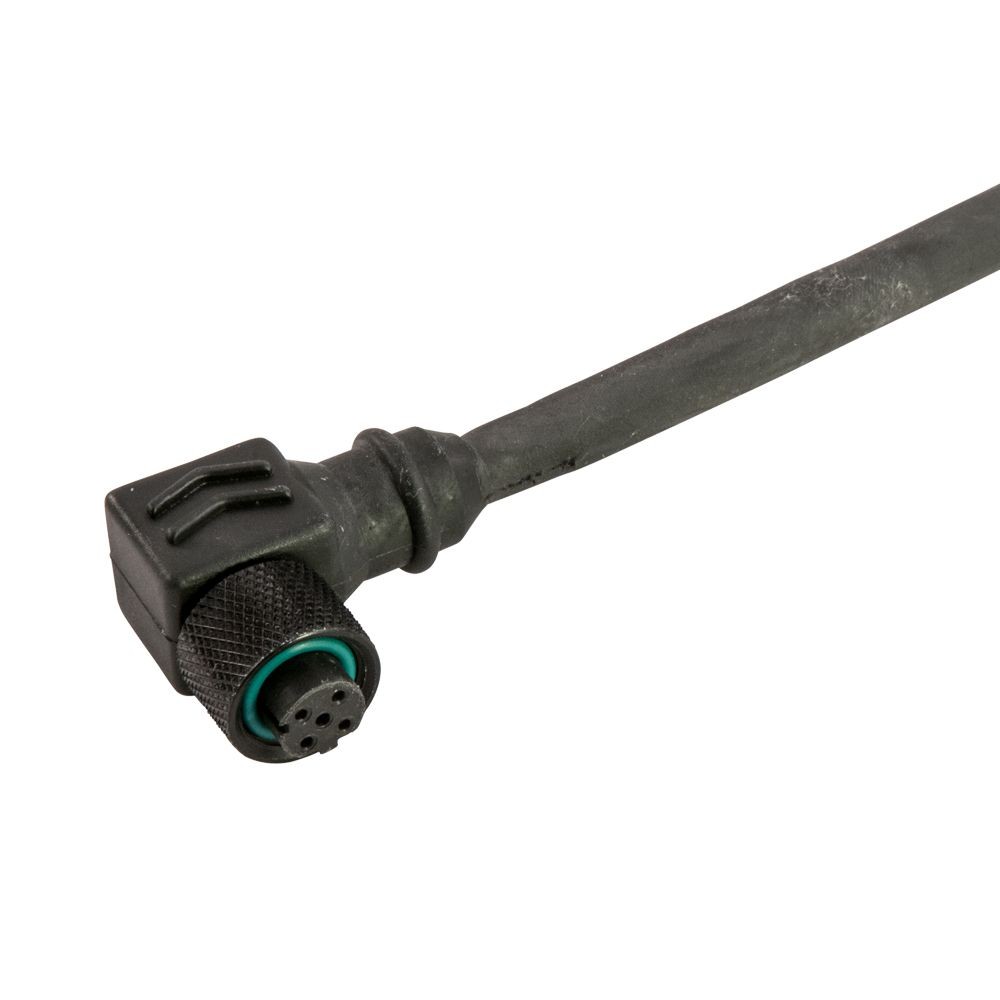

M12 Etherlink Connector, Plug Assembly, Female 90 deg, 6.6'. Remke Part Number: E04C0066BA5 UPC Code (785411038292)

$43.70

Min: 1  Mult: 1

Product Attributes

Photo-1

Click Here

SPECSHEET-1

Click Here

BRAND

Remke


Click Here

Photo-M1

Click Here

PRODUCT LENGTH (IN)

1.07

PRODUCT WIDTH (IN)

0.57

Maximum Operating Temperature C

75

Cord set Configuration

90 Degree

Product Photo

Click Here

PRODUCT NUMBER

E04C0066BA5

PRODUCT LINE

Ethernet Connectors

Wiring Color Code

Ethernet

PRODUCT GROUP

Industrial Power Cordsets

PRODUCT CATEGORY

Molded Connectors and Cordsets

Pin Count (Number of Poles)

4

Parent Category

Remke Products, Ethernet Connectors

ORing Material

Nitrile Rubber

REACH Compliant

1

RFEMI Protection

No

Wire Gauge

AWG 24.00

Width in

0.57

WARRANTY

1 Year

Voltage Rating DC

125

Voltage Rating AC

125

Voltage Rating (DC)

125

Voltage Rating (AC)

125

UPC

785411038292

UNSPSC

32151902

TITLE

M12 Etherlink Connector, Plug Assembly, Female 90 deg, 6.6'

Thread 1

M12X1

SKU

E04C0066BA5

Shielding Braiding

0

RoHS Compliant

TRUE

ORing

1

NEMA Rating

6P

Insert Material

Nylon

Included O-Ring

Yes

Included Locknut

No

Height in

1.26

Has Approval

FALSE

GTIN

785411038292

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

4

Coupling Nut Plating

Black Anodized

Coupling Nut Material

Aluminum

COUNTRY OF ORIGIN

US

Cordset Configuration

90 Degree

Competitors

7.85411E+11

Additional Title

M12 Etherlink Connector, Plug Assembly, Female 90 deg, 6.6'

IP Rating

IP67

Additional Strain Relief Mesh

No

Min Temperature (C)

-20

Maximum Operating Temperature F

167

Max Temperature (F)

167

Max Temperature (C)

75

Minimum Operating Temperature C

-20

Mating Thread Size 1

M12X1

Material

PVC

MANUFACTURER

NSI Industries

Locknut

0

Length in

1.07

Is Quote Only

FALSE

IS ACTIVE

TRUE

Minimum Operating Temperature F

-4

Min Temperature (F)

-4

Current Rating amps

4

REMKE Categories

Industrial Molded Connectors>RJ45 & M12 Ethernet Cable Connectors

RF EMI Protection

0
