REMKE

E04AB0010P

REMKE | E04AB0010P | Molded Circular
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

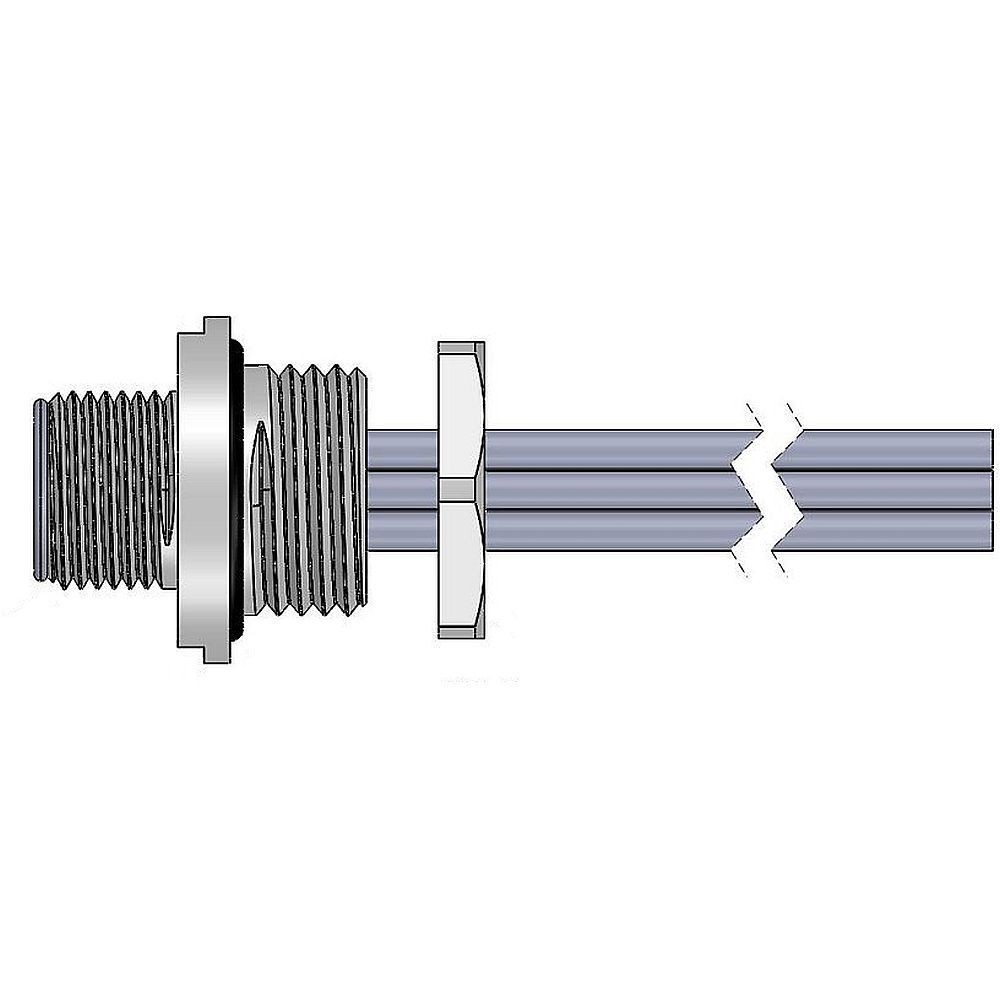

M12 Etherlink Receptacle, Male, 4 pole, 1', 24 AWG, PG9 thread. Remke Part Number: E04AB0010P UPC Code (785411045436)

$17.50

Min: 1  Mult: 1

Product Attributes


Click Here

BRAND

Remke

Photo-M1

Click Here

PRODUCT LENGTH (IN)

1.13

Maximum Operating Temperature C

105

Receptacle Lead Length

1

RFEMI Protection

No

Receptacle Configuration

Male Straight

REACH Compliant

1

Receptacle Lead Jacket Material

PVC

Product Photo

Click Here

PRODUCT NUMBER

E04AB0010P

PRODUCT LINE

Ethernet Connectors

PRODUCT GROUP

Industrial Power Cordsets

PRODUCT CATEGORY

Molded Connectors and Cordsets

Pin Count (Number of Poles)

4

RoHS Compliant

TRUE

Shell Material

Machined Aluminum

Wire Gauge

AWG 24.00

WARRANTY

1 Year

Voltage Rating DC

125

Voltage Rating AC

125

Voltage Rating (DC)

125

Voltage Rating (AC)

125

UPC

785411045436

UNSPSC

32151905

TITLE

M12 Etherlink Receptacle, Male, 4 pole, 1', 24 AWG, PG9 thread

Thread 2

1/2-14 NPT

Thread 1

M12X1

SKU

E04AB0010P

Shielding Braiding

0

Shell Plating

Black Anodized

Wiring Color Code

Ethernet

Parent Category

Remke Products, Ethernet Connectors

ORing Material

Nitrile Rubber

Length in

1.13

Is Quote Only

FALSE

IS ACTIVE

TRUE

IP Rating

IP67

Insert Material

Nylon

Included O-Ring

Yes

Included Locknut

Yes

Has Approval

FALSE

GTIN

785411045436

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

4

COUNTRY OF ORIGIN

US

Competitors

7.85411E+11

Additional Title

M12 Etherlink Receptacle, Male, 4 pole, 1', 24 AWG, PG9 thread

Locknut

1

Locknut Material

Steel

ORing

1

NEMA Rating

6P

Minimum Operating Temperature F

-4

Minimum Operating Temperature C

-20

Min Temperature (F)

-4

Min Temperature (C)

-20

Maximum Operating Temperature F

221

Max Temperature (F)

221

Max Temperature (C)

105

Mating Thread Size 2

1/2-14 NPT

Mating Thread Size 1

M12X1

MANUFACTURER

NSI Industries

Additional Strain Relief Mesh

No

Current Rating amps

4

REMKE Categories

Industrial Molded Connectors>RJ45 & M12 Ethernet Cable Connectors

RF EMI Protection

0
