filter--iconPrice List
REMKE

E04A0066BA5S9

REMKE | E04A-A5S9 | Molded Circular
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

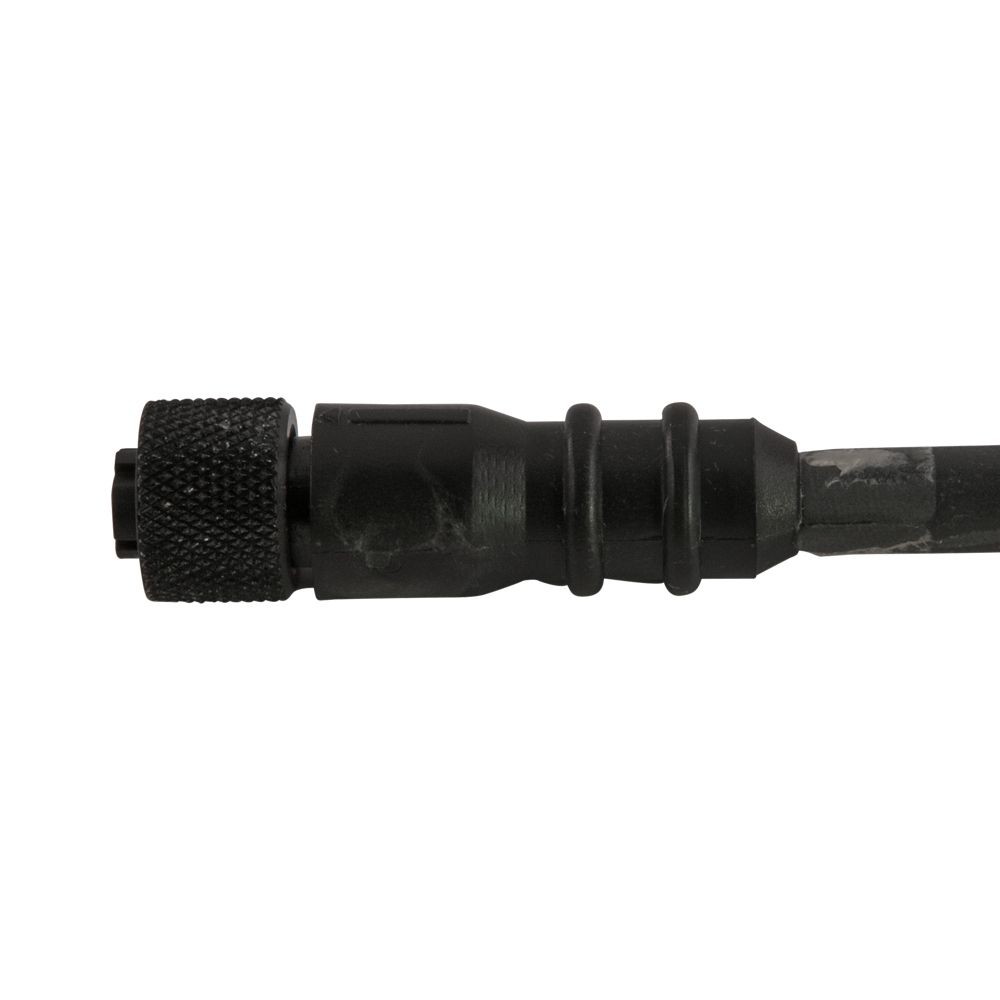

M12 Etherlink Connector, Plug Assembly, Shielded, Female, 6.6'. Remke Part Number: E04A0066BA5S9 UPC Code (785411045405)

$53.80

Min: 1  Mult: 1

Product Attributes


Click Here

BRAND

Remke

Photo-M1

Click Here

PRODUCT LENGTH (IN)

1.85

PRODUCT WIDTH (IN)

0.57

Maximum Operating Temperature C

75

Cord set Configuration

Straight

Product Photo

Click Here

PRODUCT NUMBER

E04A0066BA5S9

PRODUCT LINE

Ethernet Connectors

Wire Gauge

AWG 24.00

PRODUCT GROUP

Industrial Power Cordsets

PRODUCT CATEGORY

Molded Connectors and Cordsets

Pin Count (Number of Poles)

4

Parent Category

Remke Products, Ethernet Connectors

ORing Material

Nitrile Rubber

REACH Compliant

1

Wiring Color Code

Ethernet

RFEMI Protection

Yes

Width in

0.57

WARRANTY

1 Year

Voltage Rating DC

125

Voltage Rating AC

125

Voltage Rating (DC)

125

Voltage Rating (AC)

125

UPC

785411045405

UNSPSC

32151902

TITLE

M12 Etherlink Connector, Plug Assembly, Shielded, Female, 6.6'

Thread 1

M12X1

SKU

E04A0066BA5S9

Shielding Braiding

1

RoHS Compliant

TRUE

ORing

1

NEMA Rating

6P

Minimum Operating Temperature F

-4

Included O-Ring

Yes

Included Locknut

No

Has Approval

FALSE

GTIN

785411045405

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

4

Coupling Nut Plating

Black Anodized

Coupling Nut Material

Aluminum

COUNTRY OF ORIGIN

US

Cordset Configuration

Straight

Competitors

7.85411E+11

Additional Title

M12 Etherlink Connector, Plug Assembly, Shielded, Female, 6.6'

Additional Strain Relief Mesh

No

Insert Material

Nylon

IP Rating

IP67

Mating Thread Size 1

M12X1

Min Temperature (C)

-20

Maximum Operating Temperature F

167

Max Temperature (F)

167

Max Temperature (C)

75

Minimum Operating Temperature C

-20

Material

PVC

MANUFACTURER

NSI Industries

Locknut

0

Length in

1.85

Is Quote Only

FALSE

IS ACTIVE

TRUE

Min Temperature (F)

-4

Current Rating amps

4

REMKE Categories

Industrial Molded Connectors>RJ45 & M12 Ethernet Cable Connectors

RF EMI Protection

1

Not available at this time.
