REMKE

504A0131AL

REMKE | 50-AL | Molded Circular
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

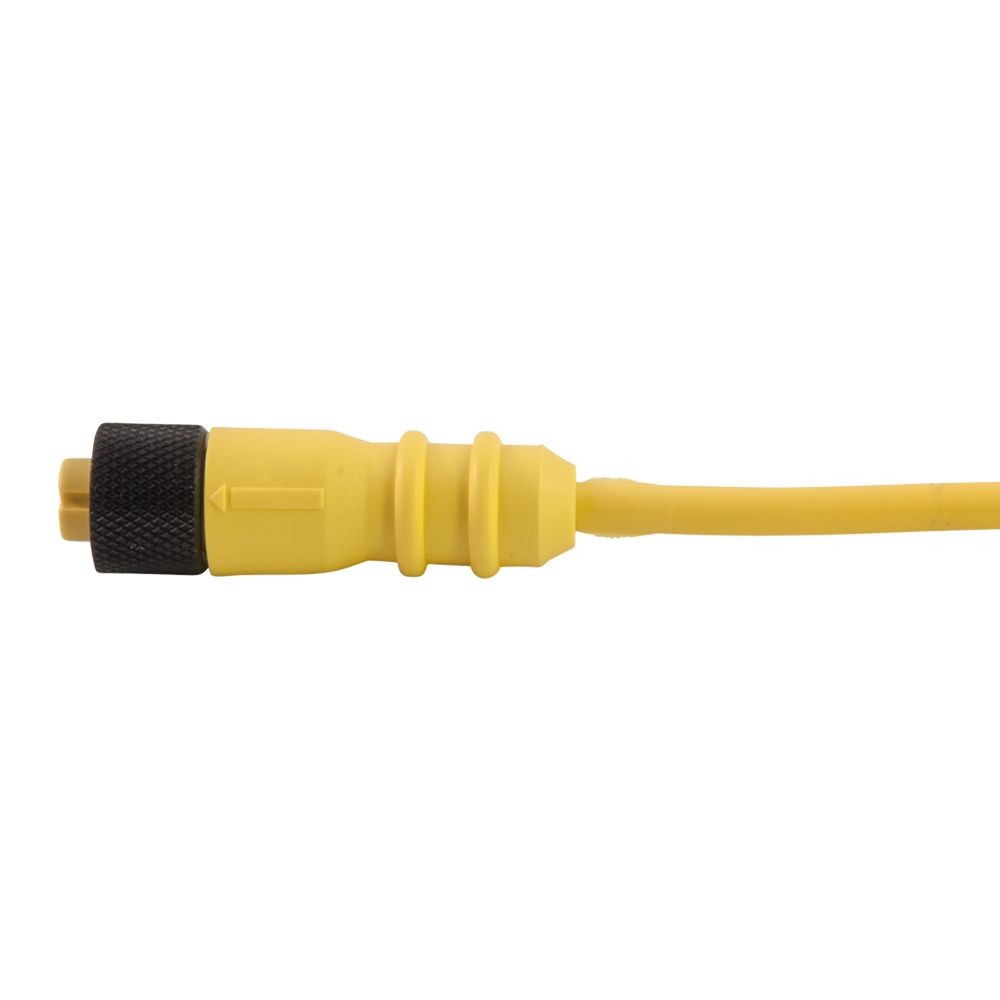

Single Key (M12) Micro-Link Plug Assembly, PUR Braided, Female, 4 pole, 13.1', 22 AWG. Remke Part Number: 504A0131AL UPC Code (785411808185)

$49.20

Min: 1  Mult: 1

Product Attributes

BRAND

Remke


Click Here

PRODUCT LENGTH (IN)

1.85

PRODUCT WIDTH (IN)

0.57

Photo-M1

Click Here

Maximum Operating Temperature C

80

Cord set Configuration

Straight

PRODUCT LINE

Micro and Mini Connectors

PRODUCT NUMBER

504A0131AL

Product Photo

Click Here

Wiring Color Code

Euro CC

PRODUCT GROUP

Industrial Power Cordsets

PRODUCT CATEGORY

Molded Connectors and Cordsets

Pin Count (Number of Poles)

4

Parent Category

Remke Products, Micro and Mini Connectors

ORing Material

Nitrile Rubber

ORing

1

REACH Compliant

1

RFEMI Protection

No

RoHS Compliant

TRUE

Wire Gauge

AWG 22.00

Width in

0.57

WARRANTY

1 Year

Voltage Rating DC

300

Voltage Rating AC

250

Voltage Rating (DC)

300

Voltage Rating (AC)

250

UPC

785411808185

UNSPSC

32151902

TITLE

Single Key (M12) Micro-Link Plug Assembly, PUR Braided, Female, 4 pole, 13.1', 22 AWG

Thread 1

M12X1

Temperature Application

Standard Temperature

SKU

504A0131AL

Shielding Braiding

1

NEMA Rating

6P

Molded Connector Type

Socket (Female)

Insert Material

Nylon

Included O-Ring

Yes

Included Locknut

No

Has Approval

FALSE

GTIN

785411808185

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

4

CSA Standard

E165657

Coupling Nut Plating

Black Anodized

Coupling Nut Material

Aluminum

COUNTRY OF ORIGIN

US

Cordset Configuration

Straight

Competitors

7.85412E+11

Additional Title

Single Key (M12) Micro-Link Plug Assembly, PUR Braided, Female, 4 pole, 13.1', 22 AWG

IP Rating

IP67

Additional Strain Relief Mesh

No

Minimum Operating Temperature F

-4

Minimum Operating Temperature C

-20

Min Temperature (F)

-4

Min Temperature (C)

-20

Maximum Operating Temperature F

176

Max Temperature (F)

176

Max Temperature (C)

80

Mating Thread Size 1

M12X1

Material

PUR

MANUFACTURER

NSI Industries

Locknut

0

Length in

1.85

Is Quote Only

FALSE

IS ACTIVE

TRUE

Current Rating amps

4

REMKE Categories

Industrial Molded Connectors>Micro Link M12 Connectors & Cordsets>Micro M12 Cordsets & Cable Assemblies

RF EMI Protection

0
