Price List
3400046
Factory Lead Time: TBD
RoHs Compliant
Dual Key Micro-Link Dist Box, 6 Outlet, 10M cable. Remke Part Number: 3400046 UPC Code (785411805269)
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
SPECSHEET-1
BRAND
Remke
Photo-M1
Maximum Operating Temperature C
90
PRODUCT CATEGORY
Molded Connectors and Cordsets
PRODUCT GROUP
Industrial Power Cordsets
PRODUCT LINE
Micro and Mini Connectors
PRODUCT NUMBER
3400046
Port Shell Material boxes
Anodized Aluminum
Max Temperature (C)
90
Wiring Color Code
Auto CC
Parent Category
Remke Products, Micro and Mini Connectors
ORing Material
Nitrile Rubber
ORing
1
Number of Outlets
6
Product Photo
REACH Compliant
1
WARRANTY
1 Year
Voltage Rating DC
300
Voltage Rating AC
250
Voltage Rating (DC)
300
Voltage Rating (AC)
250
UPC
785411805269
UNSPSC
32151903
TITLE
Dual Key Micro-Link Dist Box, 6 Outlet, 10M cable
Temperature Application
Standard Temperature
SKU
3400046
Shielding Braiding
0
RoHS Compliant
TRUE
RFEMI Protection
No
NEMA Rating
6P
Minimum Operating Temperature F
-29
Additional Strain Relief Mesh
No
Included Locknut
No
Has Approval
FALSE
GTIN
785411805269
DATE LAST UPDATED
3/20/24
Housing Material boxes
Polyester
Current Rating Per Unit (AMPS)
7
Current Rating Per Outlet (AMPS)
5
COUNTRY OF ORIGIN
US
Additional Title
#N/A
Included O-Ring
Yes
Insert Material
Polycarbonate
IP Rating
IP67
MANUFACTURER
NSI Industries
Maximum Operating Temperature F
194
Min Temperature (C)
-34
Locknut
0
Label Material
Polyester
Min Temperature (F)
-29
Is Quote Only
TRUE
IS ACTIVE
TRUE
Minimum Operating Temperature C
-34
Max Temperature (F)
194
Current Rating Per Outlet amps
5

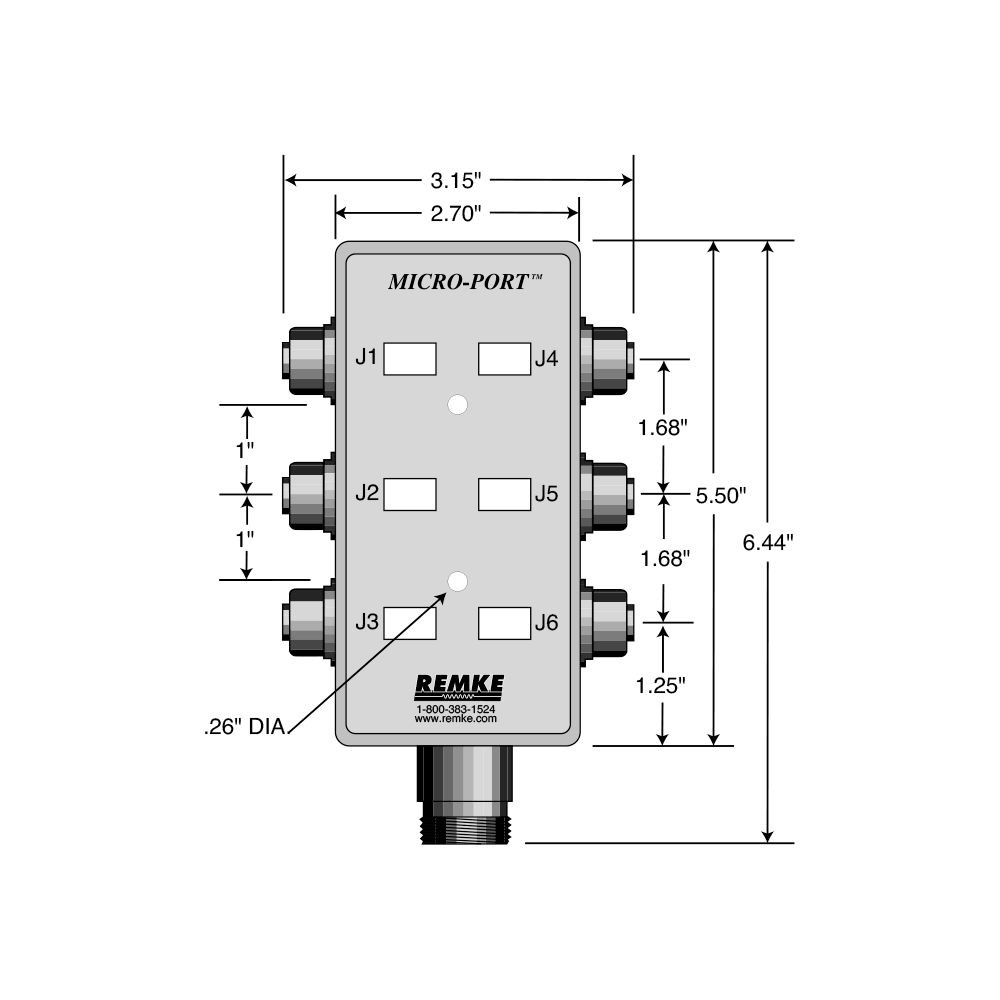

Distribution Box Length in
6.44
Distribution Box Width in
3.15
Feed Type boxes
Cable (10M)
Current Rating Per Unit amps
7
REMKE Categories
Industrial Molded Connectors>Micro Link M12 Connectors & Cordsets>Micro M12 Cordsets & Cable Assemblies
RF EMI Protection
0
Series Attributes
Not available at this time.
