Price List
3400041
Factory Lead Time: TBD
RoHs Compliant
Dual Key Micro-Link Dist Box, 6 Outlet, connector feed. Remke Part Number: 3400041 UPC Code (785411805214)
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
SPECSHEET-1
Photo-1
BRAND
Remke
Photo-M1
Maximum Operating Temperature C
90
PRODUCT GROUP
Industrial Power Cordsets
PRODUCT LINE
Micro and Mini Connectors
PRODUCT NUMBER
3400041
Port Shell Material boxes
Anodized Aluminum
PRODUCT CATEGORY
Molded Connectors and Cordsets
MANUFACTURER
NSI Industries
WARRANTY
1 Year
Parent Category
Remke Products, Micro and Mini Connectors
ORing Material
Nitrile Rubber
ORing
1
Number of Outlets
6
Product Photo
REACH Compliant
1
Voltage Rating DC
300
Voltage Rating AC
250
Voltage Rating (DC)
300
Voltage Rating (AC)
250
UPC
785411805214
UNSPSC
32151903
TITLE
Dual Key Micro-Link Dist Box, 6 Outlet, connector feed
Temperature Application
Standard Temperature
SKU
3400041
Shielding Braiding
0
Search Description
Micro-port Bx 6Port sd-ent conn
RoHS Compliant
TRUE
RFEMI Protection
No
Wiring Color Code
Auto CC
NEMA Rating
6P
Minimum Operating Temperature F
-29
Included O-Ring
Yes
Additional Search Tags
Micro-port Bx 6Port sd-ent conn
Additional Strain Relief Mesh
No
Housing Material boxes
Polyester
Has Approval
FALSE
GTIN
785411805214
DATE LAST UPDATED
3/20/24
Included Locknut
No
Current Rating Per Unit (AMPS)
7
Current Rating Per Outlet (AMPS)
5
COUNTRY OF ORIGIN
US
Insert Material
Polycarbonate
IP Rating
IP67
Minimum Operating Temperature C
-34
Min Temperature (F)
-29
Min Temperature (C)
-34
Maximum Operating Temperature F
194
Max Temperature (F)
194
Additional Title
#N/A
KEYWORDS
Micro-port Bx 6Port sd-ent conn
Max Temperature (C)
90
IS ACTIVE
TRUE
Locknut
0
Label Material
Polyester
Is Quote Only
TRUE
Current Rating Per Outlet amps
5
Feed Type boxes
Connector

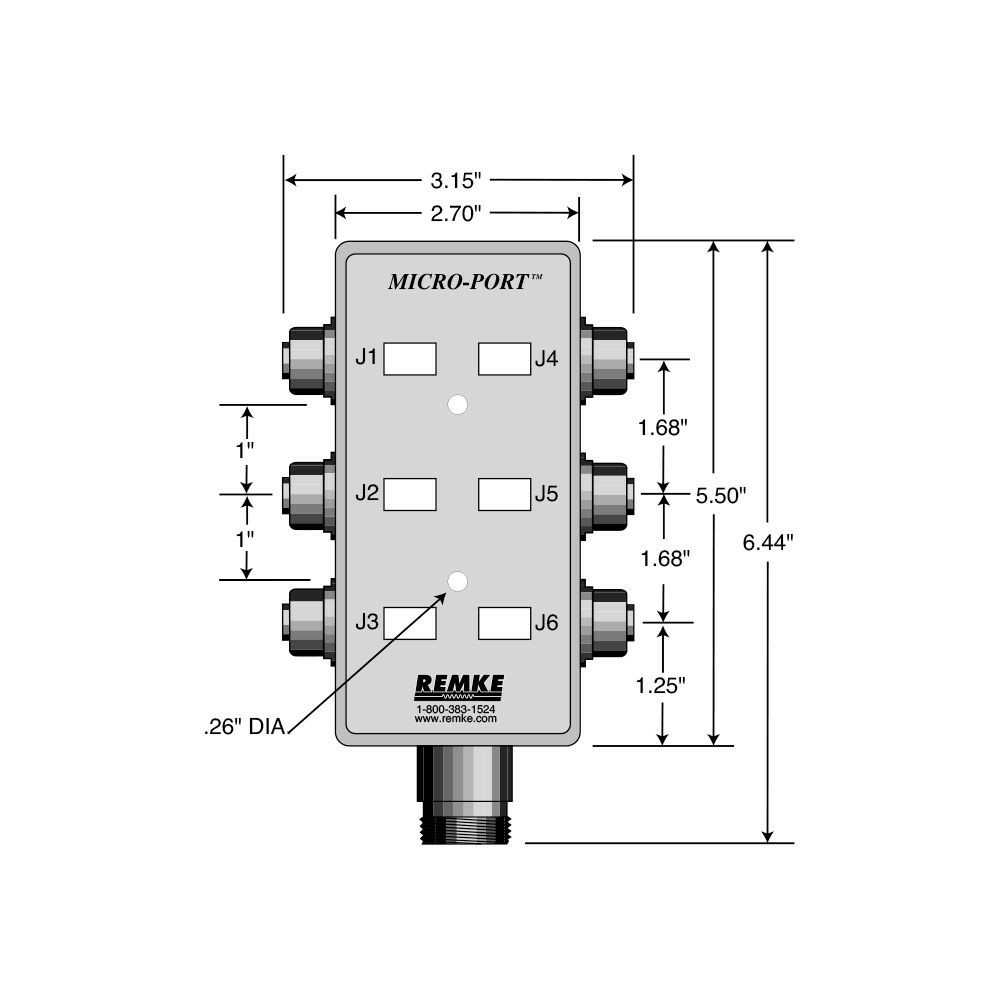

Distribution Box Length in
6.44
Distribution Box Width in
3.15
Current Rating Per Unit amps
7
REMKE Categories
Industrial Molded Connectors>Micro Link M12 Connectors & Cordsets>Micro M12 Cordsets & Cable Assemblies
RF EMI Protection
0
Series Attributes
Not available at this time.
