3400026
Factory Lead Time: TBD
RoHs Compliant
Single Key (M12) Micro-Link Dist Box, 8 Outlet, connector feed. Remke Part Number: 3400026 UPC Code (785411805191)
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
SPECSHEET-1
BRAND
Remke
Photo-M1
Maximum Operating Temperature C
80
PRODUCT GROUP
Industrial Power Cordsets
PRODUCT LINE
Micro and Mini Connectors
Port Shell Material boxes
Nickel Plated Brass
PRODUCT NUMBER
3400026
MANUFACTURER
NSI Industries
PRODUCT CATEGORY
Molded Connectors and Cordsets
WARRANTY
1 Year
Parent Category
Remke Products, Micro and Mini Connectors
ORing Material
Viton
ORing
1
O-Ring Material
Viton
Number of Outlets
8
Product Photo
REACH Compliant
1
Voltage Rating DC
300
Voltage Rating AC
250
Voltage Rating (DC)
300
Voltage Rating (AC)
250
UPC
785411805191
UNSPSC
32151903
TITLE
Single Key (M12) Micro-Link Dist Box, 8 Outlet, connector feed
Temperature Application
Standard Temperature
SKU
3400026
Shielding Braiding
0
Search Description
Micro-port Bx 8Port tp-ent conn
RoHS Compliant
TRUE
RFEMI Protection
No
Wiring Color Code
Euro CC
NEMA Rating
6P
Minimum Operating Temperature F
-4
Included O-Ring
Yes
Additional Search Tags
Micro-port Bx 8Port tp-ent conn
Additional Strain Relief Mesh
No
Housing Material boxes
Nylon
Has Approval
FALSE
GTIN
785411805191
DATE LAST UPDATED
3/20/24
Included Locknut
No
Current Rating Per Unit (AMPS)
12
Current Rating Per Outlet (AMPS)
4
COUNTRY OF ORIGIN
US
Insert Material
Polycarbonate
IP Rating
IP65
Minimum Operating Temperature C
-20
Min Temperature (F)
-4
Min Temperature (C)
-20
Maximum Operating Temperature F
176
Max Temperature (F)
176
Additional Title
#N/A
KEYWORDS
Micro-port Bx 8Port tp-ent conn
Max Temperature (C)
80
IS ACTIVE
TRUE
Locknut
0
Label Material
Nylon
Is Quote Only
TRUE
Current Rating Per Outlet amps
4
Feed Type boxes
Connector

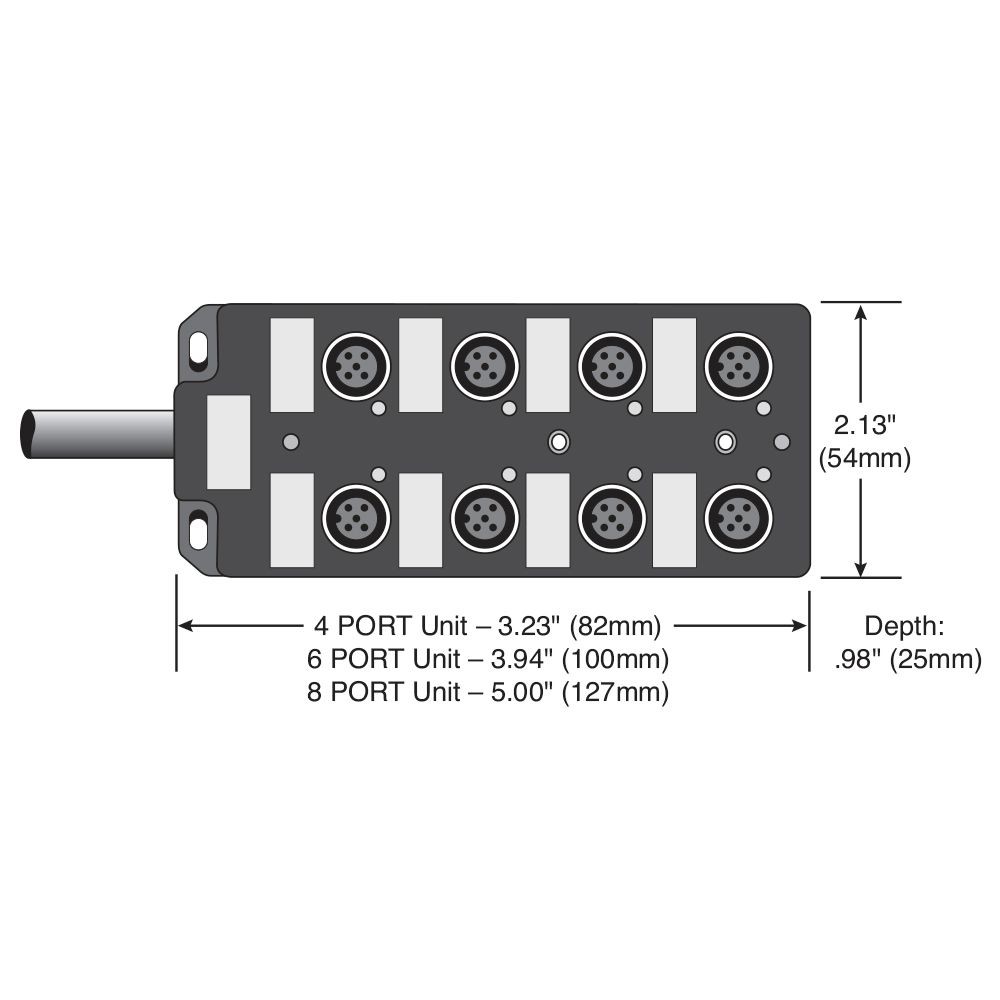

Distribution Box Length in
5.98
Distribution Box Width in
2.13
Current Rating Per Unit amps
12
REMKE Categories
Industrial Molded Connectors>Micro Link M12 Connectors & Cordsets>Micro M12 Cordsets & Cable Assemblies
RF EMI Protection
0
Series Attributes
Not available at this time.
