3400016
Factory Lead Time: TBD
RoHs Compliant

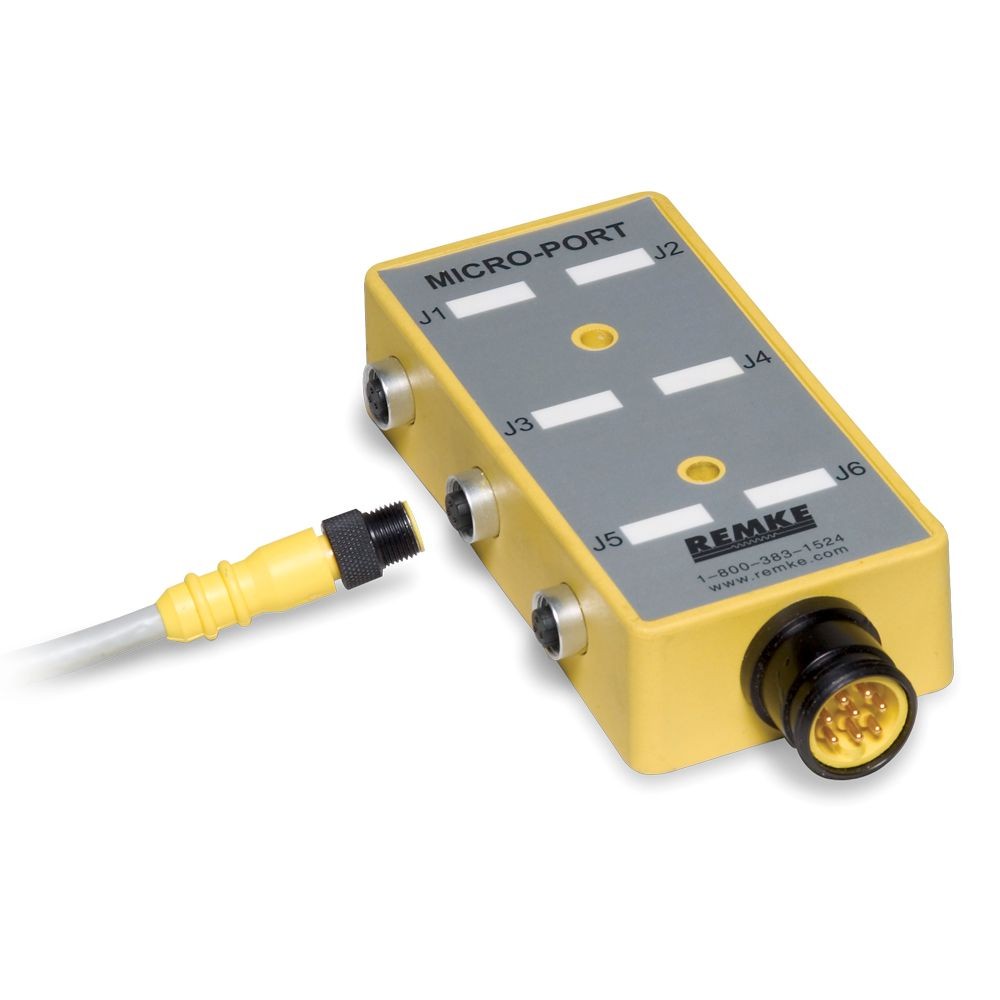

Single Key (M12) Micro-Link Dist Box, 6 Outlet, 5M cable. Remke Part Number: 3400016 UPC Code (785411805146)
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
SPECSHEET-1
BRAND
Remke
Photo-M1
Maximum Operating Temperature C
80
PRODUCT GROUP
Industrial Power Cordsets
PRODUCT CATEGORY
Molded Connectors and Cordsets
PRODUCT LINE
Micro and Mini Connectors
Max Temperature (C)
80
Port Shell Material boxes
Nickel Plated Brass
Voltage Rating DC
300
Parent Category
Remke Products, Micro and Mini Connectors
ORing Material
Viton
ORing
1
O-Ring Material
Viton
Number of Outlets
6
PRODUCT NUMBER
3400016
Product Photo
Voltage Rating AC
250
Voltage Rating (DC)
300
Voltage Rating (AC)
250
UPC
785411805146
UNSPSC
32151903
TITLE
Single Key (M12) Micro-Link Dist Box, 6 Outlet, 5M cable
Temperature Application
Standard Temperature
SKU
3400016
Shielding Braiding
0
RoHS Compliant
TRUE
RFEMI Protection
No
Wiring Color Code
Euro CC
REACH Compliant
1
NEMA Rating
6P
Minimum Operating Temperature F
-4
Included O-Ring
Yes
Included Locknut
No
Additional Strain Relief Mesh
No
Has Approval
FALSE
GTIN
785411805146
DATE LAST UPDATED
7/13/23
Housing Material boxes
Nylon
Current Rating Per Unit (AMPS)
12
Current Rating Per Outlet (AMPS)
4
COUNTRY OF ORIGIN
US
Insert Material
Polycarbonate
IP Rating
IP65
Minimum Operating Temperature C
-20
Min Temperature (F)
-4
Min Temperature (C)
-20
Maximum Operating Temperature F
176
Max Temperature (F)
176
Additional Title
#N/A
Label Material
Nylon
MANUFACTURER
NSI Industries
IS ACTIVE
TRUE
Locknut
0
Is Quote Only
TRUE
Current Rating Per Outlet amps
4
Feed Type boxes
Cable (5M)
Distribution Box Length in
3.94
Distribution Box Width in
2.13
Current Rating Per Unit amps
12
REMKE Categories
Industrial Molded Connectors>Micro Link M12 Connectors & Cordsets>Micro M12 Cordsets & Cable Assemblies
RF EMI Protection
0
