REMKE

312AU0016P

REMKE | 312AU0016P | Molded Circular
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

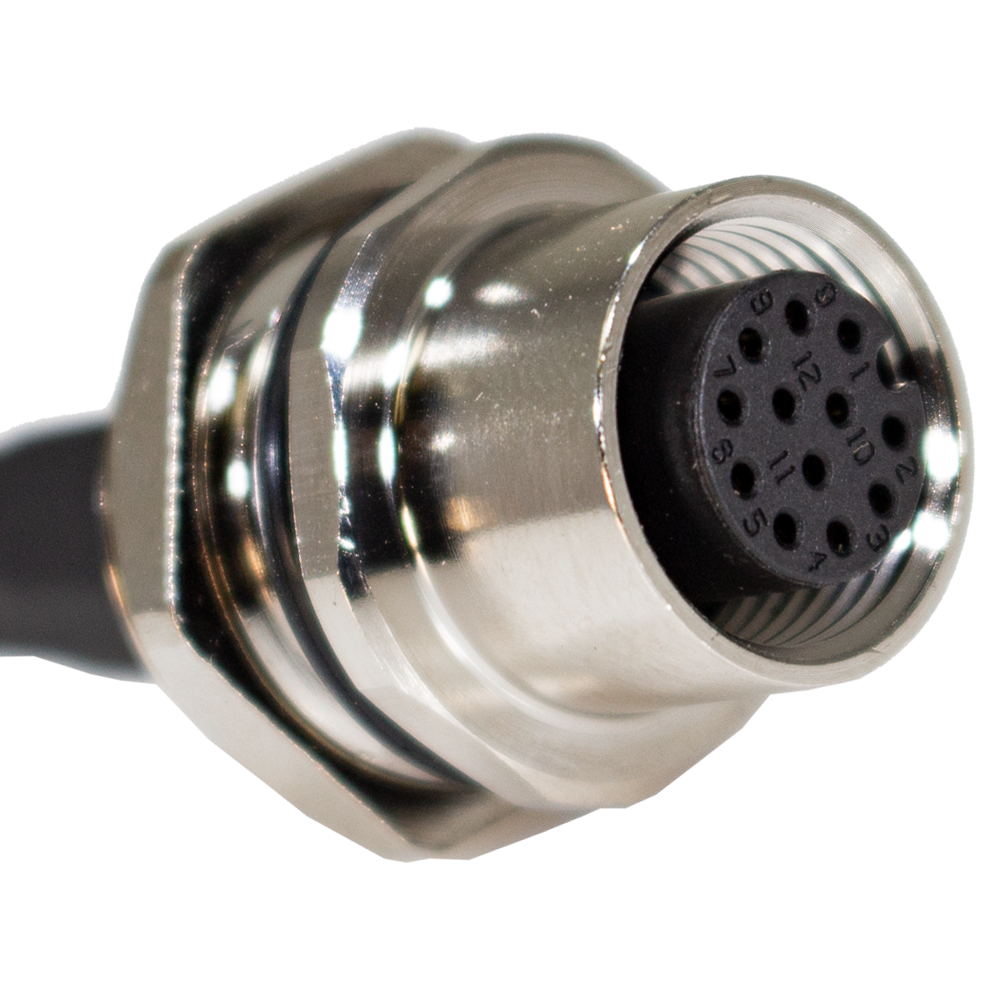

Single Key Micro-Link Receptacle, Female, 12 pole, 1', Back Panel Mount, 26 AWG. Remke Part Number: 312AU0016P UPC Code ()

$11,700.00

Min: 1  Mult: 1

Product Attributes


Click Here

BRAND

Remke

Photo-M1

Click Here

Maximum Operating Temperature C

90

Cord set Configuration

Straight

Wire Gauge

AWG 26.00

Receptacle Configuration

Female Straight

Receptacle Lead Jacket Material

PVC

Receptacle Lead Length

1

Product Photo

Click Here

PRODUCT NUMBER

312AU0016P

PRODUCT LINE

Micro and Mini Connectors

PRODUCT GROUP

Industrial Power Cordsets

PRODUCT CATEGORY

Molded Connectors and Cordsets

Pin Count (Number of Poles)

12

RFEMI Protection

No

Shell Material

Machined Brass

WARRANTY

1 Year

Voltage Rating DC

30

Voltage Rating AC

30

Voltage Rating (DC)

30

Voltage Rating (AC)

30

TITLE

Single Key Micro-Link Receptacle, Female, 12 pole, 1', Back Panel Mount, 26 AWG

Thread 2

M16X1

Thread 1

M12X1

Temperature Application

Standard Temperature

SKU

312AU0016P

Shielding Braiding

1

Shell Plating

Nickel Plated

Parent Category

Remke Products, Micro and Mini Connectors

ORing Material

Nitrile Rubber

IS ACTIVE

TRUE

IP Rating

IP67

Included O-Ring

Yes

Included Locknut

No

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

1.5

Coupling Nut Plating

Nickel Plated

Coupling Nut Material

Brass

COUNTRY OF ORIGIN

US

Cordset Configuration

Straight

Additional Title

Single Key Micro-Link Receptacle, Female, 12 pole, 1', Back Panel Mount, 26 AWG

MANUFACTURER

NSI Industries

Mating Thread Size 1

M12X1

Additional Strain Relief Mesh

No

ORing

1

NEMA Rating

6P

Molded Connector Type

Receptacle Female Thread

Minimum Operating Temperature F

-40

Minimum Operating Temperature C

-40

Min Temperature (F)

-40

Min Temperature (C)

-40

Maximum Operating Temperature F

194

Max Temperature (F)

194

Max Temperature (C)

90

Mating Thread Size 2

M16X1

Current Rating amps

1.5

REMKE Categories

Industrial Molded Connectors>Micro Link M12 Connectors & Cordsets>Micro M12 Receptacles
