REMKE

312A0066J

REMKE | 312A-J | Molded Circular
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

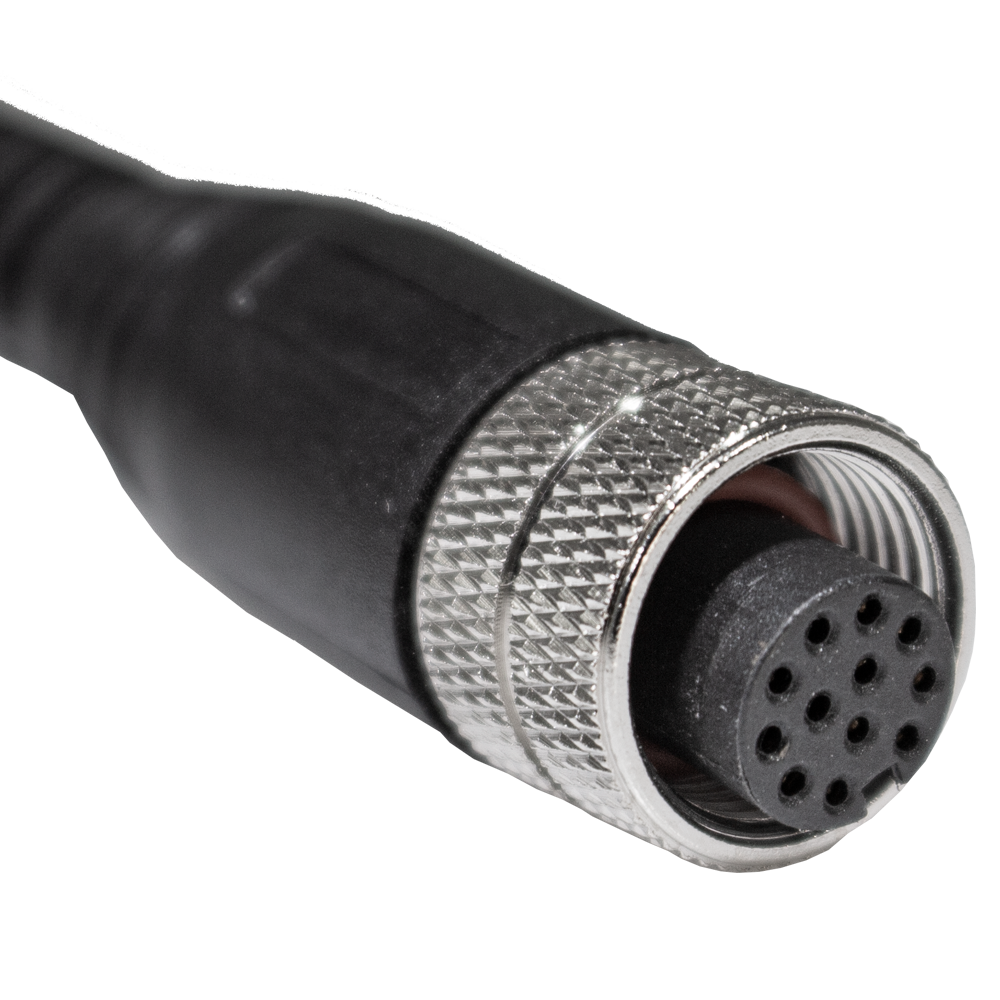

Single Key (M12) Micro-Link Plug Assembly, PVC, female, 12 Pole, 6.6', 26 AWG. Remke Part Number: 312A0066J UPC Code (785411087023)

$61.70

Min: 1  Mult: 1

Product Attributes


Click Here

BRAND

Remke

Photo-M1

Click Here

Maximum Operating Temperature C

90

Cord set Configuration

Straight

PRODUCT LINE

Micro and Mini Connectors

PRODUCT NUMBER

312A0066J

PRODUCT GROUP

Industrial Power Cordsets

PRODUCT CATEGORY

Molded Connectors and Cordsets

Wire Gauge

AWG 26.00

Pin Count (Number of Poles)

12

Molded Connector Type

Socket (Female)

Parent Category

Remke Products, Micro and Mini Connectors

ORing Material

Nitrile Rubber

Product Photo

Click Here

RFEMI Protection

No

Shielding Braiding

1

WARRANTY

1 Year

Voltage Rating DC

30

Voltage Rating AC

30

Voltage Rating (DC)

30

Voltage Rating (AC)

30

UPC

785411087023

TITLE

Single Key (M12) Micro-Link Plug Assembly, PVC, female, 12 Pole, 6.6', 26 AWG

Thread 1

M12X1

Temperature Application

Standard Temperature

SKU

312A0066J

ORing

1

NEMA Rating

6P

Coupling Nut Material

Brass

IP Rating

IP67

Included O-Ring

Yes

Included Locknut

No

GTIN

785411087023

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

1.5

Coupling Nut Plating

Nickel Plated

COUNTRY OF ORIGIN

CN

Cordset Configuration

Straight

Additional Title

Single Key (M12) Micro-Link Plug Assembly, PVC, female, 12 Pole, 6.6', 26 AWG

IS ACTIVE

TRUE

Additional Strain Relief Mesh

No

Min Temperature (F)

-40

Min Temperature (C)

-40

Maximum Operating Temperature F

194

Minimum Operating Temperature F

-40

Max Temperature (F)

194

Max Temperature (C)

90

Mating Thread Size 1

M12X1

Material

PVC

MANUFACTURER

NSI Industries

Minimum Operating Temperature C

-40

Current Rating amps

1.5

REMKE Categories

Industrial Molded Connectors>Micro Link M12 Connectors & Cordsets>Micro M12 Cordsets & Cable Assemblies
