REMKE

308AU0016P

REMKE | 308AU0016P | Molded Circular
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

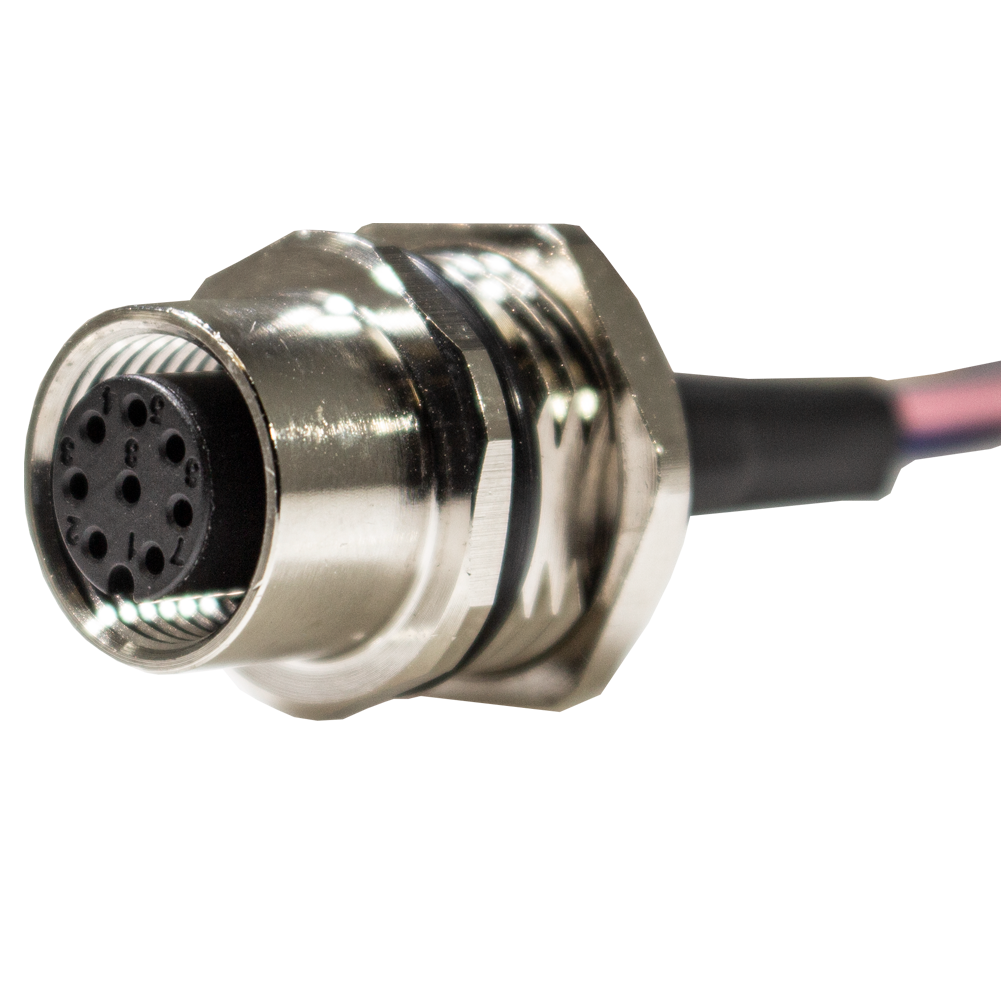

Single Key Micro-Link Receptacle, Female, 8 pole, 1', Back Panel Mount, 24 AWG. Remke Part Number: 308AU0016P UPC Code ()

$11,700.00

Min: 1  Mult: 1

Product Attributes


Click Here

BRAND

Remke

Photo-M1

Click Here

Maximum Operating Temperature C

90

Cord set Configuration

Straight

Wire Gauge

AWG 24.00

Receptacle Configuration

Female Straight

Receptacle Lead Jacket Material

PVC

Receptacle Lead Length

1

Product Photo

Click Here

PRODUCT NUMBER

308AU0016P

PRODUCT LINE

Micro and Mini Connectors

PRODUCT GROUP

Industrial Power Cordsets

PRODUCT CATEGORY

Molded Connectors and Cordsets

Pin Count (Number of Poles)

8

RFEMI Protection

No

Shell Material

Machined Brass

WARRANTY

1 Year

Voltage Rating DC

60

Voltage Rating AC

60

Voltage Rating (DC)

60

Voltage Rating (AC)

60

TITLE

Single Key Micro-Link Receptacle, Female, 8 pole, 1', Back Panel Mount, 24 AWG

Thread 2

M16X1

Thread 1

M12X1

Temperature Application

Standard Temperature

SKU

308AU0016P

Shielding Braiding

1

Shell Plating

Nickel Plated

Parent Category

Remke Products, Micro and Mini Connectors

ORing Material

Nitrile Rubber

IS ACTIVE

TRUE

IP Rating

IP67

Included O-Ring

Yes

Included Locknut

No

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

2

Coupling Nut Plating

Nickel Plated

Coupling Nut Material

Brass

COUNTRY OF ORIGIN

US

Cordset Configuration

Straight

Additional Title

Single Key Micro-Link Receptacle, Female, 8 pole, 1', Back Panel Mount, 24 AWG

MANUFACTURER

NSI Industries

Mating Thread Size 1

M12X1

Additional Strain Relief Mesh

No

ORing

1

NEMA Rating

6P

Molded Connector Type

Receptacle Female Thread

Minimum Operating Temperature F

-40

Minimum Operating Temperature C

-40

Min Temperature (F)

-40

Min Temperature (C)

-40

Maximum Operating Temperature F

194

Max Temperature (F)

194

Max Temperature (C)

90

Mating Thread Size 2

M16X1

Current Rating amps

2

REMKE Categories

Industrial Molded Connectors>Micro Link M12 Connectors & Cordsets>Micro M12 Receptacles
