REMKE

305T0010P

REMKE | 30-T-N/P | Molded Circular
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

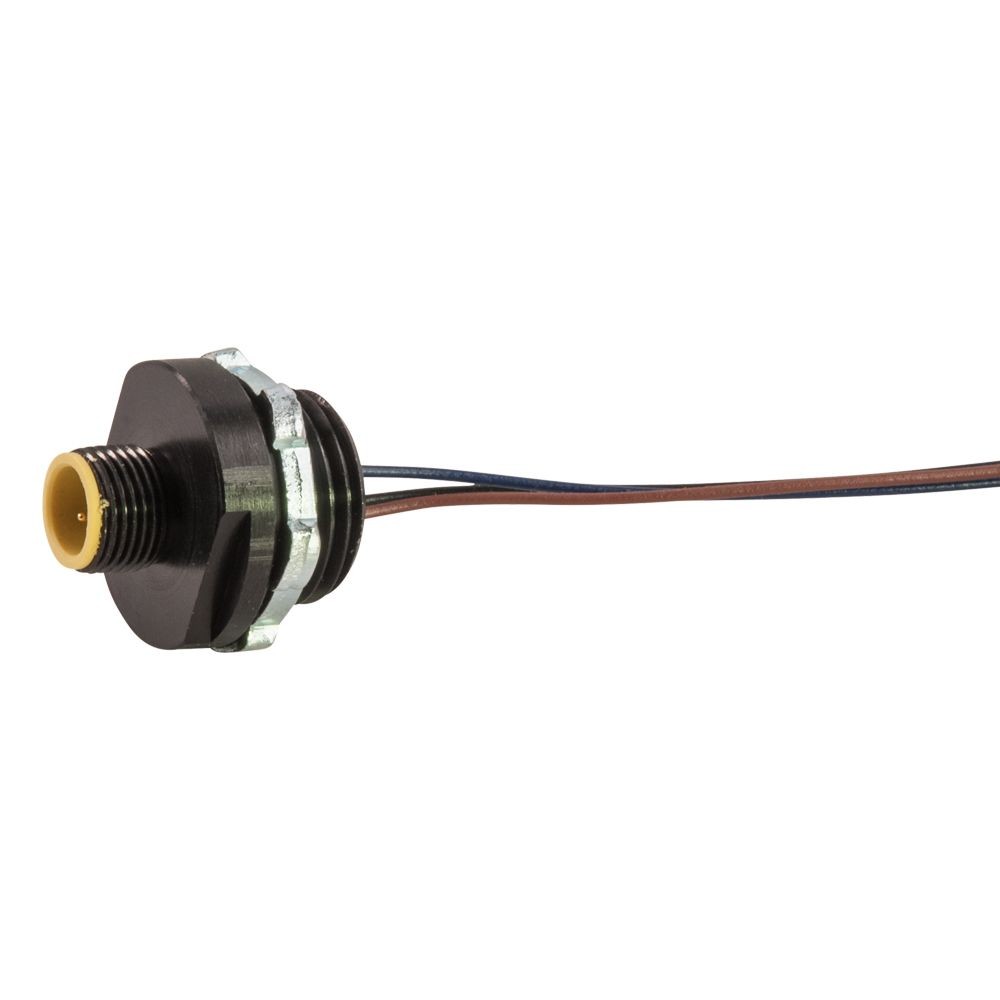

Single Key Micro-Link Receptacle, Male, 5 pole, 1', M14 x 1 thread. Remke Part Number: 305T0010P UPC Code (785411805009)

$21.20

Min: 1  Mult: 1

Product Attributes


Click Here

BRAND

Remke

PRODUCT LENGTH (IN)

0.765

Photo-M1

Click Here

Maximum Operating Temperature C

80

REACH Compliant

1

Receptacle Configuration

Male Straight

Receptacle Lead Jacket Material

PVC

Receptacle Lead Length

1

RFEMI Protection

No

Product Photo

Click Here

PRODUCT NUMBER

305T0010P

PRODUCT LINE

Micro and Mini Connectors

Wiring Color Code

Euro CC

PRODUCT GROUP

Industrial Power Cordsets

PRODUCT CATEGORY

Molded Connectors and Cordsets

Pin Count (Number of Poles)

5

Parent Category

Remke Products, Micro and Mini Connectors

RoHS Compliant

TRUE

Search Description

MICRO-LINK 5-P Male Recep M14X1

Wire Gauge

AWG 22.00

WARRANTY

1 Year

Voltage Rating DC

300

Voltage Rating AC

250

Voltage Rating (DC)

300

Voltage Rating (AC)

250

UPC

785411805009

UNSPSC

32151902

TITLE

Single Key Micro-Link Receptacle, Male, 5 pole, 1', M14 x 1 thread

Thread 2

M14X1

Thread 1

M12X1

Temperature Application

Standard Temperature

SKU

305T0010P

Shielding Braiding

0

Shell Plating

Black Anodized

Shell Material

Machined Aluminum

ORing Material

Nitrile Rubber

ORing

1

NEMA Rating

6P

KEYWORDS

MICRO-LINK 5-P Male Recep M14X1

Is Quote Only

FALSE

IS ACTIVE

TRUE

IP Rating

IP67

Insert Material

Nylon

Included O-Ring

Yes

Included Locknut

Yes

Has Approval

FALSE

GTIN

785411805009

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

4

CSA Standard

E165657

COUNTRY OF ORIGIN

US

Competitors

5000129-1,8R5E06A18A120,785411805009

Additional Title

Single Key Micro-Link Receptacle, Male, 5 pole, 1', M14 x 1 thread

Additional Strain Relief Mesh

No

Length in

0.765

Locknut

1

Molded Connector Type

Plug (Male)

Minimum Operating Temperature F

-4

Minimum Operating Temperature C

-20

Min Temperature (F)

-4

Min Temperature (C)

-20

Maximum Operating Temperature F

176

Maximum Knockout Size (IN)

0.551

Maximum Knock Out Size in

0.551

Max Temperature (F)

176

Locknut Material

Steel

MANUFACTURER

NSI Industries

Mating Thread Size 1

M12X1

Mating Thread Size 2

M14X1

Max Temperature (C)

80

Additional Search Tags

MICRO-LINK 5-P Male Recep M14X1

Current Rating amps

4

REMKE Categories

Industrial Molded Connectors>Micro Link M12 Connectors & Cordsets>Micro M12 Receptacles

RF EMI Protection

0
