REMKE

305P0010P9

REMKE | 30-P0010P9 | Molded Circular
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

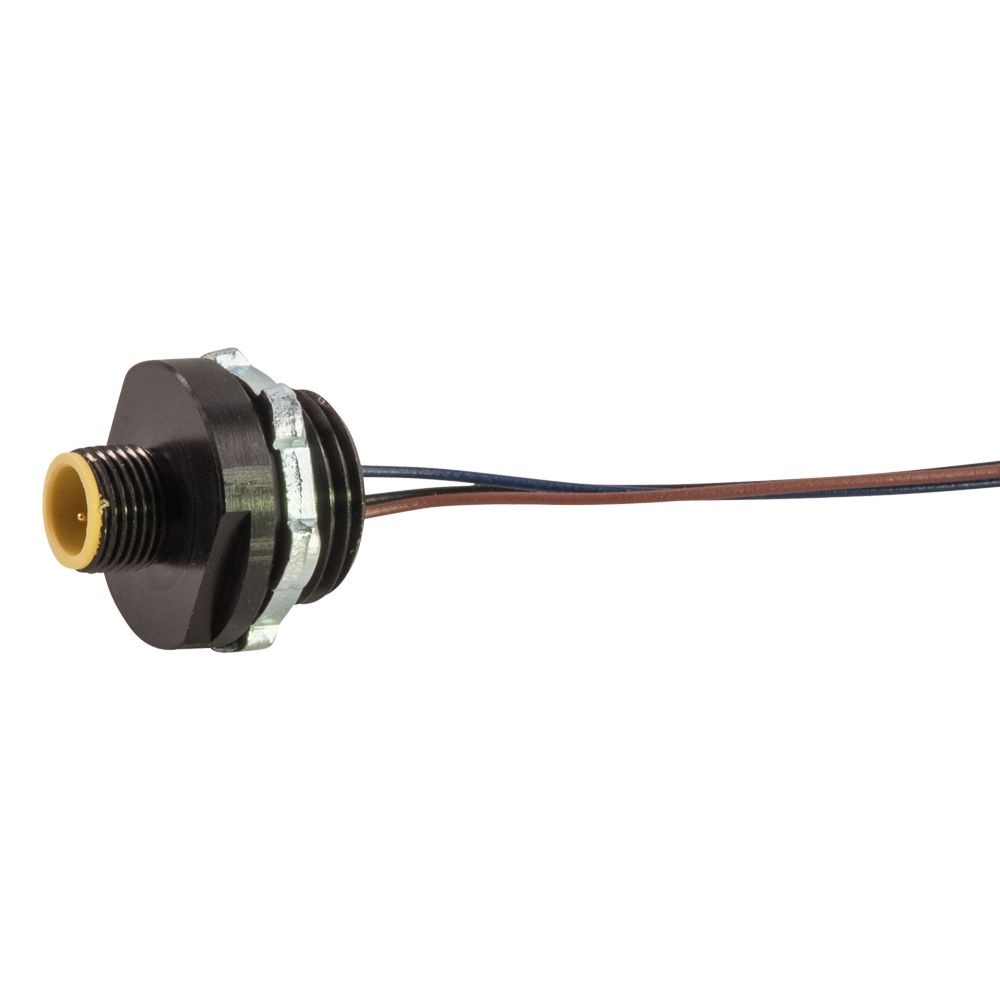

Single Key Shielded to Coupler Micro-Link Receptacle, Male, 5 pole, 1'. Remke Part Number: 305P0010P9 UPC Code (785411804965)

$35.30

Min: 1  Mult: 1

Product Attributes


Click Here

BRAND

Remke

Photo-M1

Click Here

PRODUCT LENGTH (IN)

1

Maximum Operating Temperature C

105

REACH Compliant

1

Receptacle Configuration

Male Straight

Receptacle Lead Jacket Material

PVC

Receptacle Lead Length

1

RFEMI Protection

Yes

Product Photo

Click Here

PRODUCT NUMBER

305P0010P9

Wiring Color Code

Euro CC

PRODUCT LINE

Micro and Mini Connectors

PRODUCT GROUP

Industrial Power Cordsets

PRODUCT CATEGORY

Molded Connectors and Cordsets

Pin Count (Number of Poles)

5

RoHS Compliant

TRUE

Shell Material

Machined Aluminum

Wire Gauge

AWG 22.00

WARRANTY

1 Year

Voltage Rating DC

300

Voltage Rating AC

250

Voltage Rating (DC)

300

Voltage Rating (AC)

250

UPC

785411804965

UNSPSC

32151905

TITLE

Single Key Shielded to Coupler Micro-Link Receptacle, Male, 5 pole, 1'

Thread 2

1/2-14 NPT

Thread 1

M12X1

Temperature Application

Standard Temperature

SKU

305P0010P9

Shielding Braiding

1

Shell Plating

Black Anodized

Parent Category

Remke Products, Micro and Mini Connectors

ORing Material

Nitrile Rubber

ORing

1

Locknut

1

Length in

1

Is Quote Only

FALSE

IS ACTIVE

TRUE

IP Rating

IP67

Insert Material

Nylon

Included O-Ring

Yes

Included Locknut

Yes

Has Approval

FALSE

GTIN

785411804965

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

4

COUNTRY OF ORIGIN

US

Competitors

7.85412E+11

Additional Title

Single Key Shielded to Coupler Micro-Link Receptacle, Male, 5 pole, 1'

Locknut Material

Steel

MANUFACTURER

NSI Industries

NEMA Rating

6P

Molded Connector Type

Plug (Male)

Minimum Operating Temperature F

-4

Minimum Operating Temperature C

-20

Min Temperature (F)

-4

Min Temperature (C)

-20

Maximum Operating Temperature F

221

Maximum Knockout Size (IN)

0.906

Maximum Knock Out Size in

0.906

Max Temperature (F)

221

Max Temperature (C)

105

Mating Thread Size 2

1/2-14 NPT

Mating Thread Size 1

M12X1

Additional Strain Relief Mesh

No

Current Rating amps

4

REMKE Categories

Industrial Molded Connectors>Micro Link M12 Connectors & Cordsets>Micro M12 Receptacles

RF EMI Protection

1
