REMKE

304FFW9

REMKE | 30-FFW | Molded Circular
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

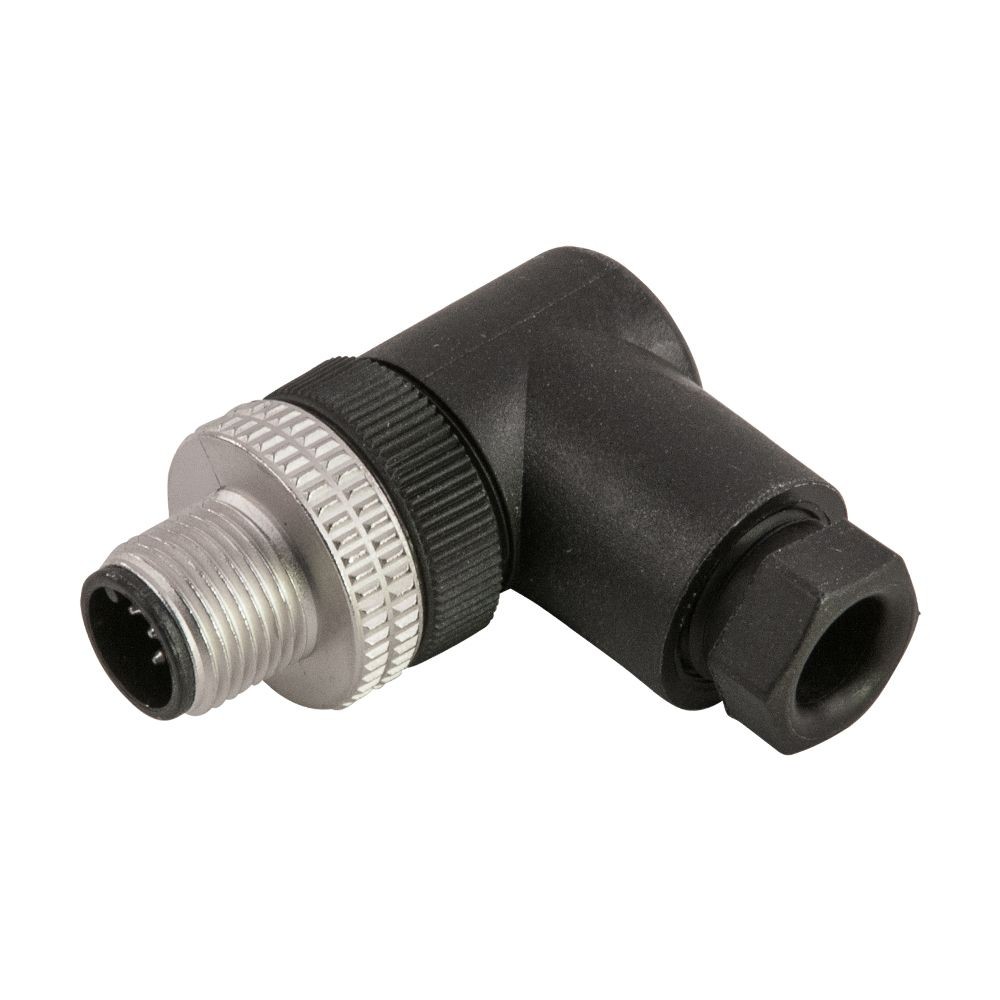

Single Key (M12) Micro-Link Field Attachable Connector, 4 pole, Male 90 deg, PG9 entry. Remke Part Number: 304FFW9 UPC Code (785411804392)

$28.70

Min: 1  Mult: 1

Product Attributes

SPECSHEET-1

Click Here

BRAND

Remke


Click Here

PRODUCT LENGTH (IN)

1.61

Photo-M1

Click Here

PRODUCT WIDTH (IN)

0.79

Maximum Operating Temperature C

90

Cord set Configuration

90 Degree

PRODUCT NUMBER

304FFW9

Product Photo

Click Here

PRODUCT LINE

Micro and Mini Connectors

PRODUCT GROUP

Industrial Power Cordsets

PRODUCT CATEGORY

Molded Connectors and Cordsets

Pin Count (Number of Poles)

4

Parent Category

Remke Products, Micro and Mini Connectors

ORing Material

Nitrile Rubber

ORing

1

WARRANTY

1 Year

REACH Compliant

1

Width in

0.79

Voltage Rating DC

150

Voltage Rating AC

125

Voltage Rating (DC)

150

Voltage Rating (AC)

125

UPC

785411804392

UNSPSC

32151908

TITLE

Single Key (M12) Micro-Link Field Attachable Connector, 4 pole, Male 90 deg, PG9 entry

Thread 1

M12X1

Temperature Application

Standard Temperature

SKU

304FFW9

Shielding Braiding

0

RoHS Compliant

TRUE

RFEMI Protection

No

NEMA Rating

6P

Molded Connector Type

Plug (Male)

Insert Material

Nylon

Included O-Ring

Yes

Included Locknut

No

Has Approval

FALSE

GTIN

785411804392

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

4

Coupling Nut Plating

Nickel Plated

Coupling Nut Material

Brass

COUNTRY OF ORIGIN

CN

Cordset Configuration

90 Degree

Competitors

7.85412E+11

Additional Title

Single Key (M12) Micro-Link Field Attachable Connector, 4 pole, Male 90 deg, PG9 entry

Additional Strain Relief Mesh

No

IP Rating

IP67

Mating Thread Size 1

M12X1

Min Temperature (F)

-13

Min Temperature (C)

-25

Maximum Operating Temperature F

194

Max Temperature (F)

194

Max Temperature (C)

90

Minimum Operating Temperature F

-13

Minimum Operating Temperature C

-25

Material

Nylon

MANUFACTURER

NSI Industries

Locknut

0

Length in

1.61

Is Quote Only

FALSE

IS ACTIVE

TRUE

Current Rating amps

4

REMKE Categories

Industrial Molded Connectors>Micro Link M12 Connectors & Cordsets>Micro M12 Field Attachable Connectors

RF EMI Protection

0
